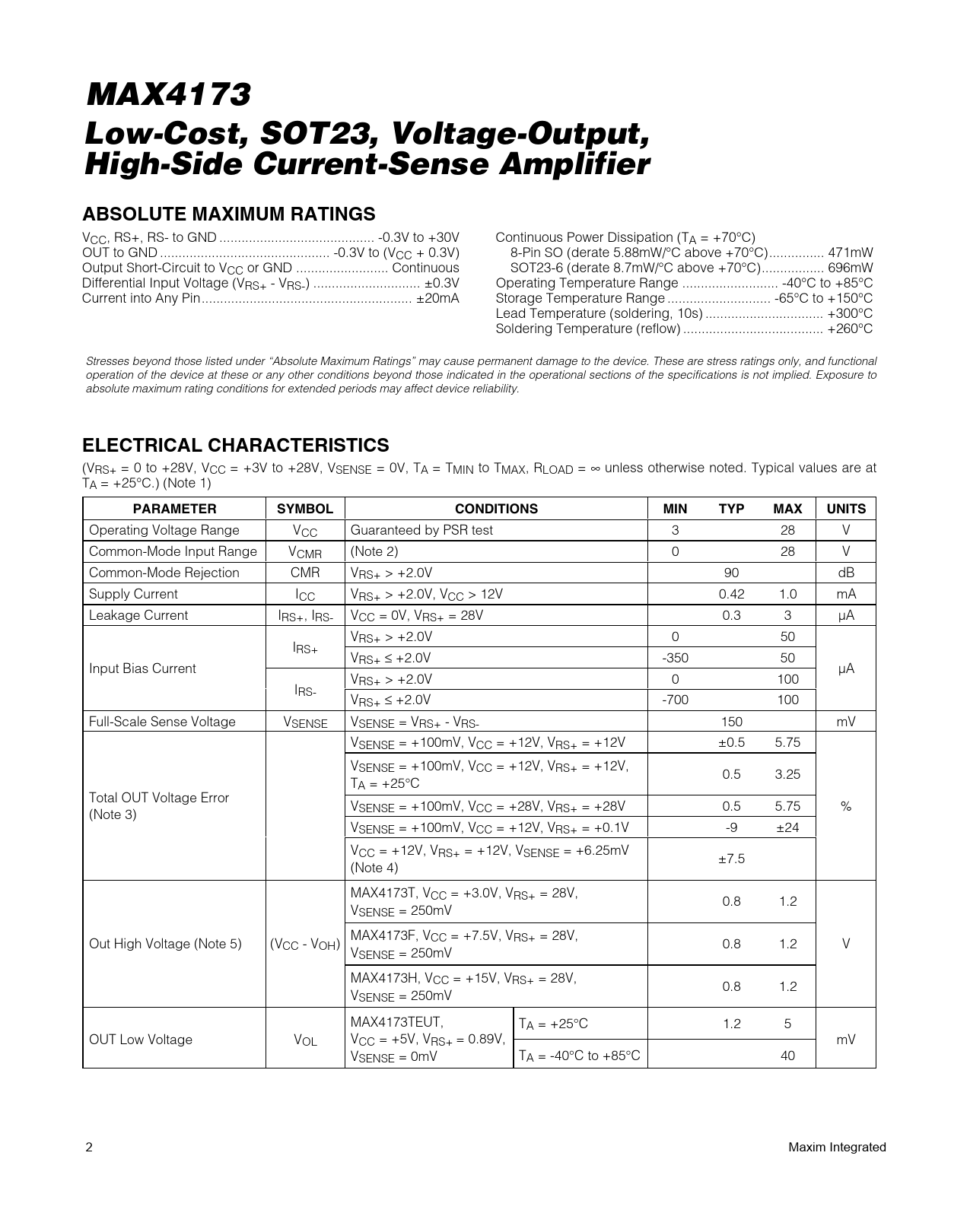

Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier. ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
MAX4173
Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier ABSOLUTE MAXIMUM RATINGS
VCC, RS+, RS- to GND .. -0.3V to +30V Continuous Power Dissipation (TA = +70°C) OUT to GND .. -0.3V to (VCC + 0.3V) 8-Pin SO (derate 5.88mW/°C above +70°C)... 471mW Output Short-Circuit to VCC or GND ... Continuous SOT23-6 (derate 8.7mW/°C above +70°C)... 696mW Differential Input Voltage (VRS+ - VRS-) ... ±0.3V Operating Temperature Range .. -40°C to +85°C Current into Any Pin... ±20mA Storage Temperature Range .. -65°C to +150°C Lead Temperature (soldering, 10s) .. +300°C Soldering Temperature (reflow) .. +260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VRS+ = 0 to +28V, VCC = +3V to +28V, VSENSE = 0V, TA = TMIN to TMAX, RLOAD = ∞ unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Operating Voltage Range VCC Guaranteed by PSR test 3 28 V Common-Mode Input Range VCMR (Note 2) 0 28 V Common-Mode Rejection CMR VRS+ > +2.0V 90 dB Supply Current ICC VRS+ > +2.0V, VCC > 12V 0.42 1.0 mA Leakage Current IRS+, IRS- VCC = 0V, VRS+ = 28V 0.3 3 µA VRS+ > +2.0V 0 50 IRS+ VRS+ ≤ +2.0V -350 50 Input Bias Current µA VRS+ > +2.0V 0 100 IRS- VRS+ ≤ +2.0V -700 100 Full-Scale Sense Voltage VSENSE VSENSE = VRS+ - VRS- 150 mV VSENSE = +100mV, VCC = +12V, VRS+ = +12V ±0.5 5.75 VSENSE = +100mV, VCC = +12V, VRS+ = +12V, 0.5 3.25 TA = +25°C Total OUT Voltage Error VSENSE = +100mV, VCC = +28V, VRS+ = +28V 0.5 5.75 % (Note 3) VSENSE = +100mV, VCC = +12V, VRS+ = +0.1V -9 ±24 VCC = +12V, VRS+ = +12V, VSENSE = +6.25mV ±7.5 (Note 4) MAX4173T, VCC = +3.0V, VRS+ = 28V, 0.8 1.2 VSENSE = 250mV MAX4173F, VCC = +7.5V, VRS+ = 28V, Out High Voltage (Note 5) (VCC - VOH) 0.8 1.2 V VSENSE = 250mV MAX4173H, VCC = +15V, VRS+ = 28V, 0.8 1.2 VSENSE = 250mV MAX4173TEUT, TA = +25°C 1.2 5 OUT Low Voltage VOL VCC = +5V, VRS+ = 0.89V, mV VSENSE = 0mV TA = -40°C to +85°C 40 2 Maxim Integrated
