Datasheet TCET1100, TCET1100G (Vishay) - 8
| Hersteller | Vishay |
| Beschreibung | Optocoupler, Phototransistor Output, High Temperature |
| Seiten / Seite | 9 / 8 — TCET1100, TCET1100G. PACKAGE DIMENSIONS. TCET1100G type. PACKAGE MARKING |
| Dateiformat / Größe | PDF / 142 Kb |
| Dokumentensprache | Englisch |
TCET1100, TCET1100G. PACKAGE DIMENSIONS. TCET1100G type. PACKAGE MARKING
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TCET1100, TCET1100G
www.vishay.com Vishay Semiconductors

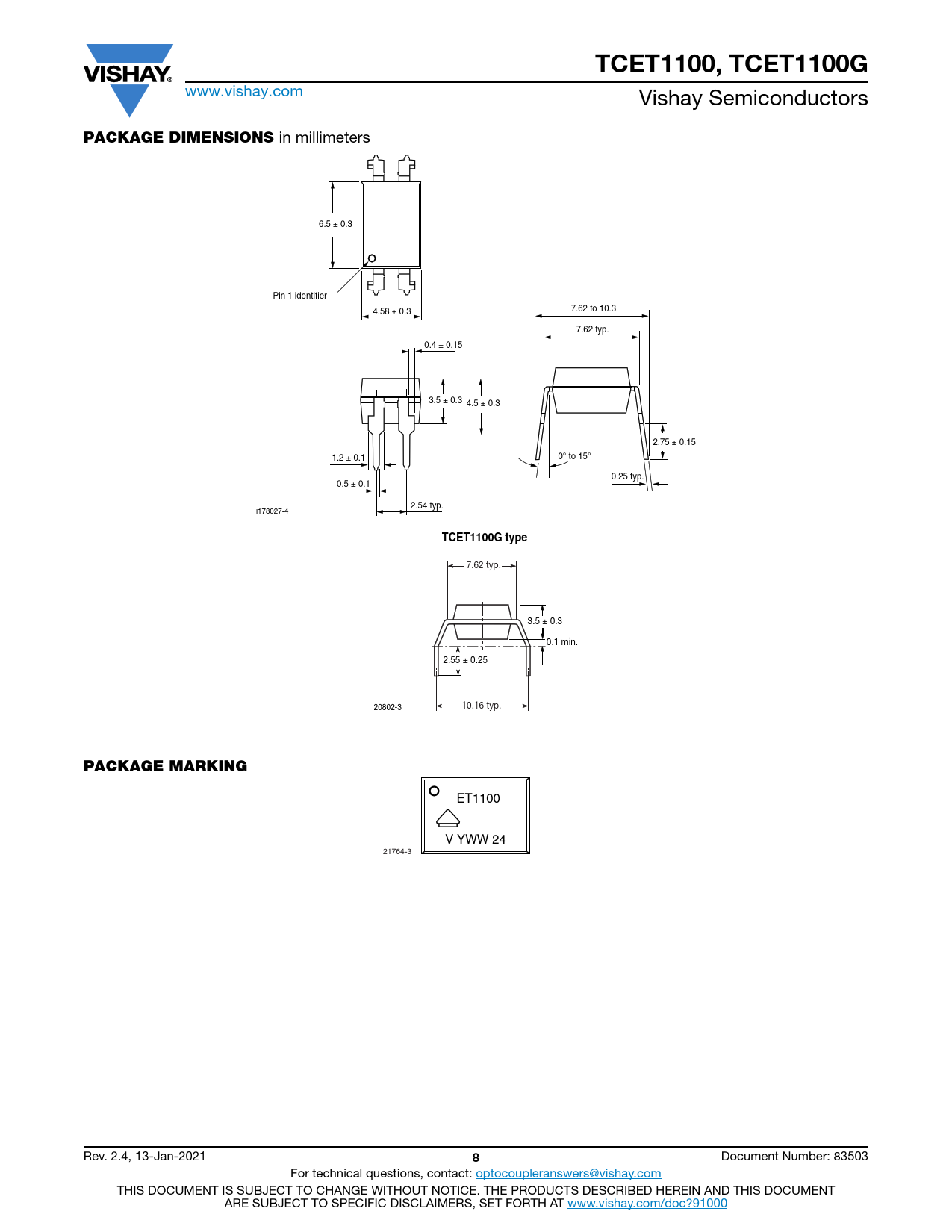

PACKAGE DIMENSIONS
in millimeters 6.5 ± 0.3 Pin 1 identifier 4.58 ± 0.3 7.62 to 10.3 7.62 typ. 0.4 ± 0.15 3.5 ± 0.3 4.5 ± 0.3 2.75 ± 0.15 1.2 ± 0.1 0° to 15° 0.25 typ. 0.5 ± 0.1 2.54 typ. i178027-4
TCET1100G type
7.62 typ. 3.5 ± 0.3 0.1 min. 2.55 ± 0.25 20802-3 10.16 typ.
PACKAGE MARKING
ET1100 V YWW 24 21764-3 Rev. 2.4, 13-Jan-2021
8
