Datasheet ADG841, ADG842 (Analog Device) - 5
| Hersteller | Analog Device |
| Beschreibung | 0.28 Ω CMOS 1.65 V to 3.6 V Single SPST Switches in SC70 |
| Seiten / Seite | 16 / 5 — ADG841/ADG842. SPECIFICATIONS—1.65 V TO 1.951. Table 4. −40°C. Parameter. … |
| Dateiformat / Größe | PDF / 560 Kb |
| Dokumentensprache | Englisch |

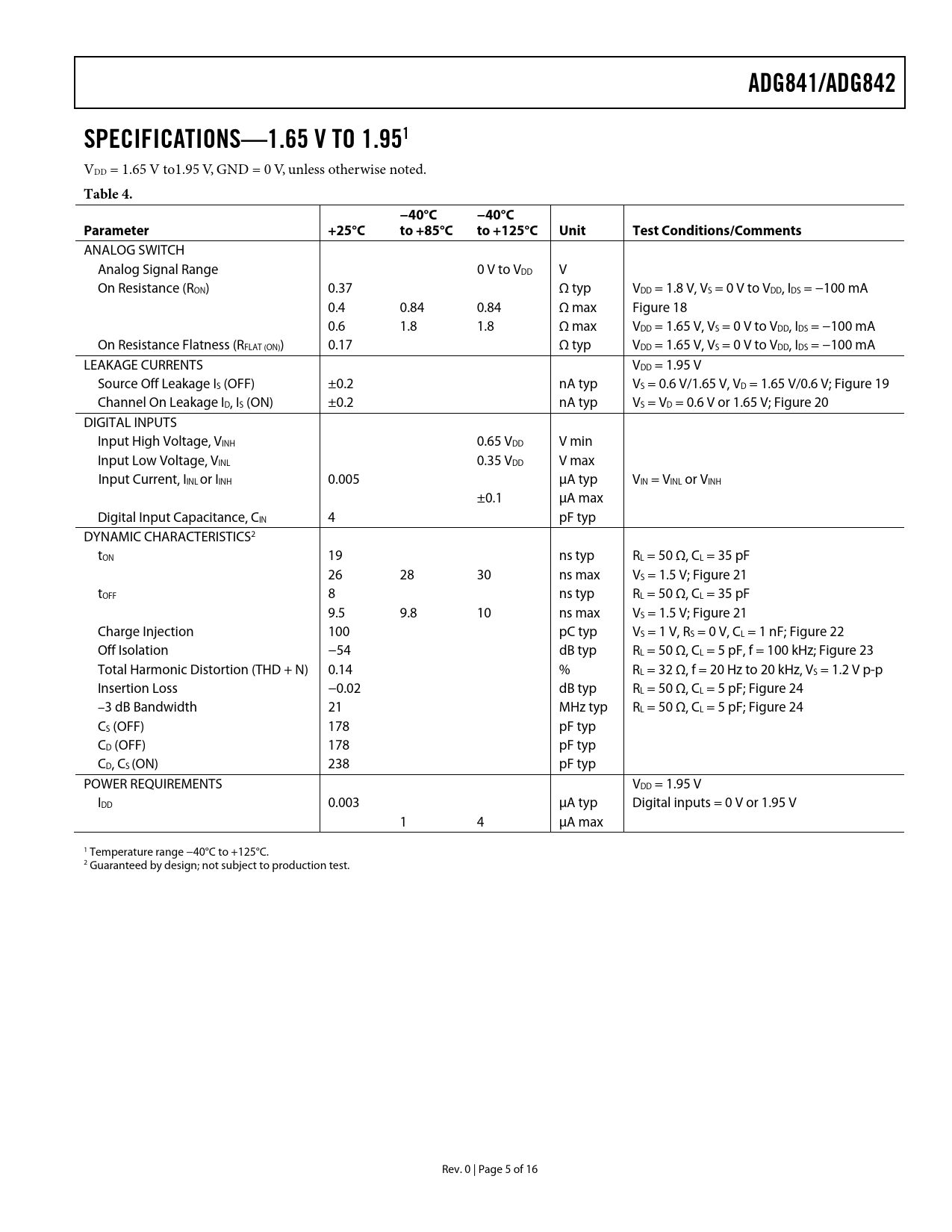

ADG841/ADG842. SPECIFICATIONS—1.65 V TO 1.951. Table 4. −40°C. Parameter. +25°C. to +85°C. to +125°C Unit. Test. Conditions/Comments
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 5 link to page 5
ADG841/ADG842 SPECIFICATIONS—1.65 V TO 1.951
VDD = 1.65 V to1.95 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C −40°C Parameter +25°C to +85°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 0.37 Ω typ VDD = 1.8 V, VS = 0 V to VDD, IDS = −100 mA 0.4 0.84 0.84 Ω max Figure 18 0.6 1.8 1.8 Ω max VDD = 1.65 V, VS = 0 V to VDD, IDS = −100 mA On Resistance Flatness (RFLAT (ON)) 0.17 Ω typ VDD = 1.65 V, VS = 0 V to VDD, IDS = −100 mA LEAKAGE CURRENTS VDD = 1.95 V Source Off Leakage IS (OFF) ±0.2 nA typ VS = 0.6 V/1.65 V, VD = 1.65 V/0.6 V; Figure 19 Channel On Leakage ID, IS (ON) ±0.2 nA typ VS = VD = 0.6 V or 1.65 V; Figure 20 DIGITAL INPUTS Input High Voltage, VINH 0.65 VDD V min Input Low Voltage, VINL 0.35 VDD V max Input Current, IINL or IINH 0.005 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS2 tON 19 ns typ RL = 50 Ω, CL = 35 pF 26 28 30 ns max VS = 1.5 V; Figure 21 tOFF 8 ns typ RL = 50 Ω, CL = 35 pF 9.5 9.8 10 ns max VS = 1.5 V; Figure 21 Charge Injection 100 pC typ VS = 1 V, RS = 0 V, CL = 1 nF; Figure 22 Off Isolation −54 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; Figure 23 Total Harmonic Distortion (THD + N) 0.14 % RL = 32 Ω, f = 20 Hz to 20 kHz, VS = 1.2 V p-p Insertion Loss −0.02 dB typ RL = 50 Ω, CL = 5 pF; Figure 24 –3 dB Bandwidth 21 MHz typ RL = 50 Ω, CL = 5 pF; Figure 24 CS (OFF) 178 pF typ CD (OFF) 178 pF typ CD, CS (ON) 238 pF typ POWER REQUIREMENTS VDD = 1.95 V IDD 0.003 µA typ Digital inputs = 0 V or 1.95 V 1 4 µA max 1 Temperature range −40°C to +125°C. 2 Guaranteed by design; not subject to production test. Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
