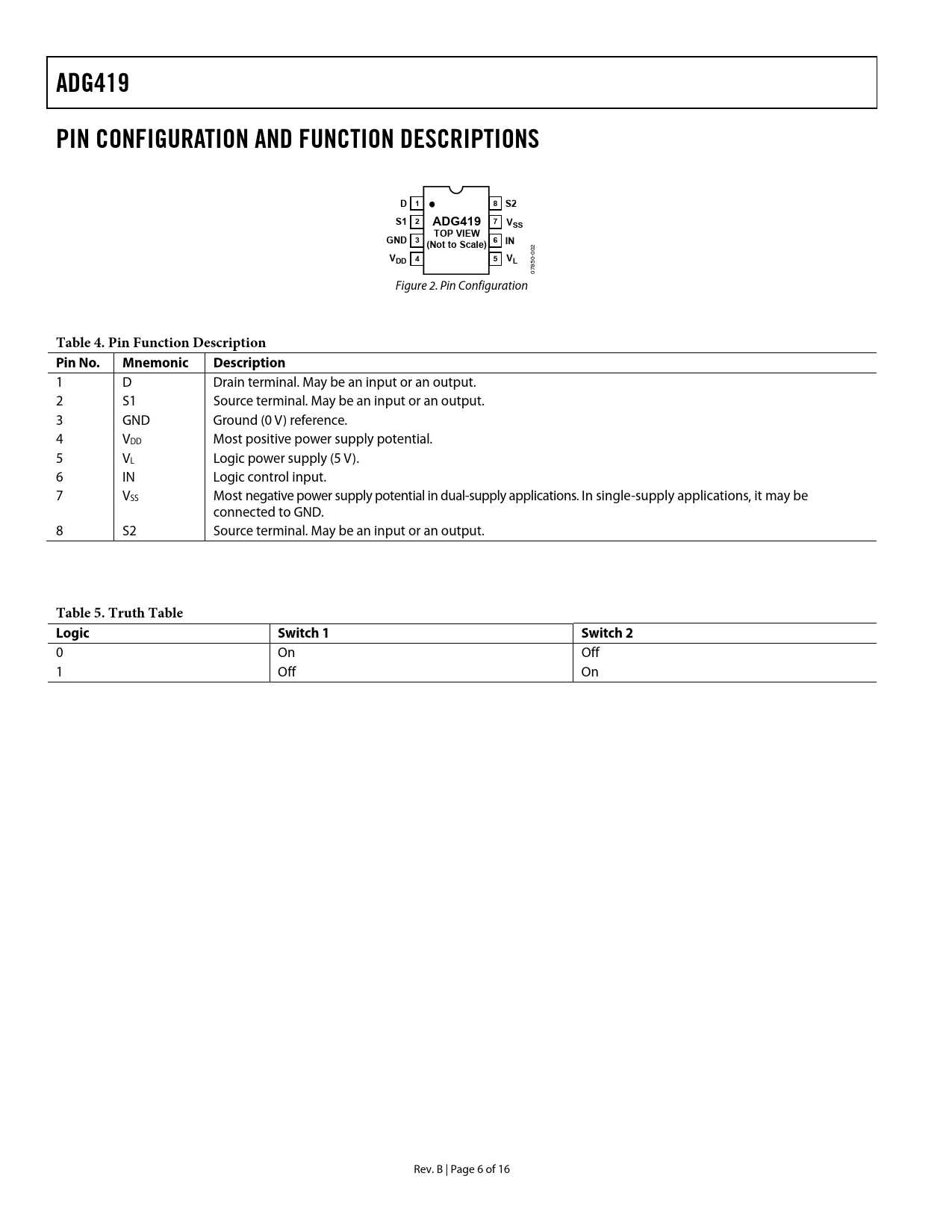

ADG419. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. D 1. 8 S2. S1 2. ADG419 7 VSS. TOP VIEW. GND 3. 6 IN. (Not to Scale)

ADG419 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS D 1 8 S2 S1 2 ADG419 7 VSS TOP VIEW GND 3 6 IN (Not to Scale)

Modelllinie für dieses Datenblatt

Textversion des Dokuments

ADG419 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS D 1 8 S2 S1 2 ADG419 7 VSS TOP VIEW GND 3 6 IN (Not to Scale)
2
V 4 5
-00
DD VL
0 85 07 Figure 2. Pin Configuration
Table 4. Pin Function Description Pin No. Mnemonic Description
1 D Drain terminal. May be an input or an output. 2 S1 Source terminal. May be an input or an output. 3 GND Ground (0 V) reference. 4 VDD Most positive power supply potential. 5 VL Logic power supply (5 V). 6 IN Logic control input. 7 VSS Most negative power supply potential in dual-supply applications. In single-supply applications, it may be connected to GND. 8 S2 Source terminal. May be an input or an output.
Table 5. Truth Table Logic Switch 1 Switch 2
0 On Off 1 Off On Rev. B | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
