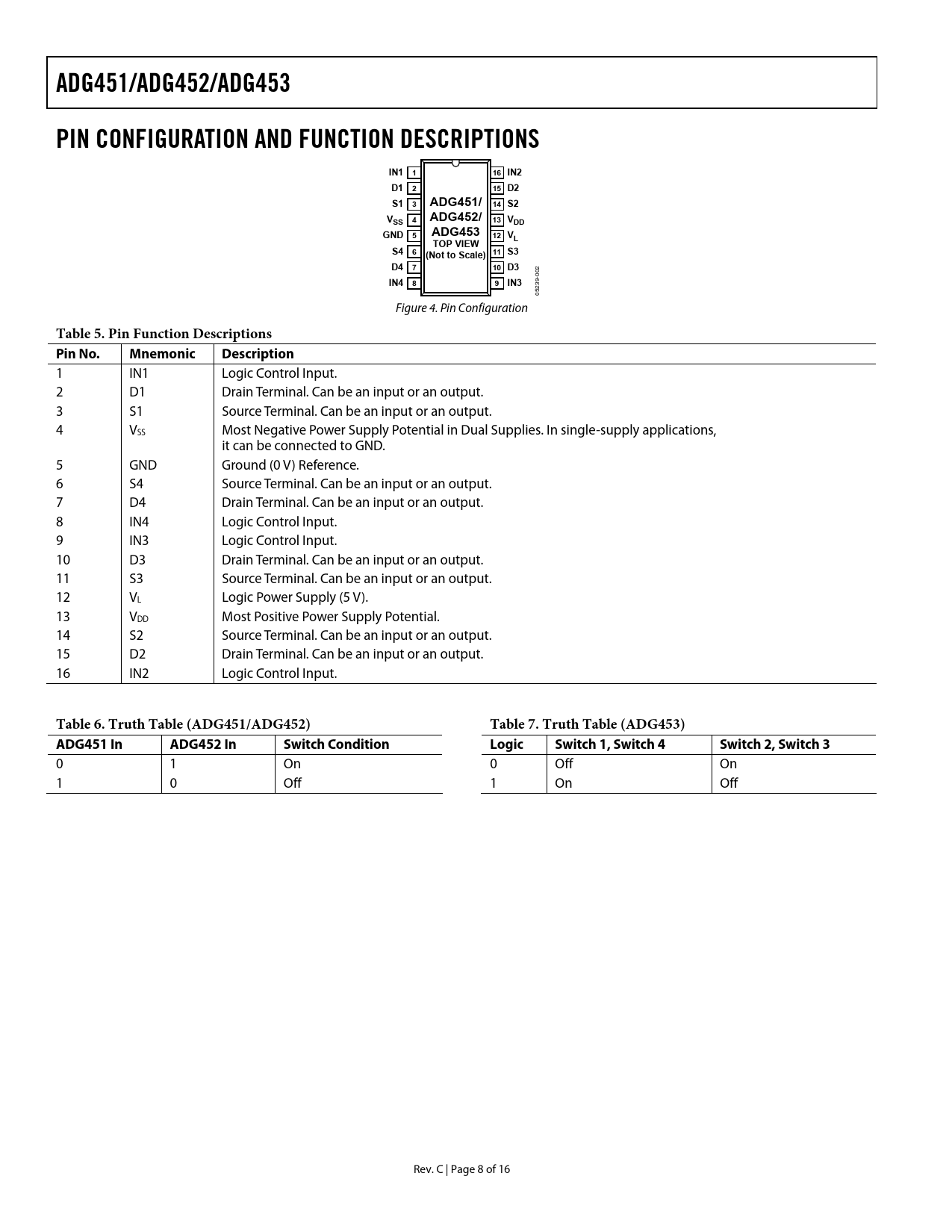

ADG451/ADG452/ADG453 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN1 1 16 IN2 D1 2 15 D2 S1 3 ADG451/ 14 S2 V ADG452/ SS 4 13 VDD GND 5 ADG453 12 VL TOP VIEW S4 6 11 S3 (Not to Scale) D4 7 10 D3
02 0
IN4 8 9 IN3
9- 23 05 Figure 4. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 IN1 Logic Control Input. 2 D1 Drain Terminal. Can be an input or an output. 3 S1 Source Terminal. Can be an input or an output. 4 VSS Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it can be connected to GND. 5 GND Ground (0 V) Reference. 6 S4 Source Terminal. Can be an input or an output. 7 D4 Drain Terminal. Can be an input or an output. 8 IN4 Logic Control Input. 9 IN3 Logic Control Input. 10 D3 Drain Terminal. Can be an input or an output. 11 S3 Source Terminal. Can be an input or an output. 12 VL Logic Power Supply (5 V). 13 VDD Most Positive Power Supply Potential. 14 S2 Source Terminal. Can be an input or an output. 15 D2 Drain Terminal. Can be an input or an output. 16 IN2 Logic Control Input.
Table 6. Truth Table (ADG451/ADG452) Table 7. Truth Table (ADG453) ADG451 In ADG452 In Switch Condition Logic Switch 1, Switch 4 Switch 2, Switch 3
0 1 On 0 Off On 1 0 Off 1 On Off Rev. C | Page 8 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
