Datasheet ADG621 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | CMOS, ±5 V/+5 V, 4 Ω Dual SPST Switches |
| Seiten / Seite | 12 / 5 — Data Sheet. ADG621. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. … |
| Revision | C |
| Dateiformat / Größe | PDF / 242 Kb |
| Dokumentensprache | Englisch |

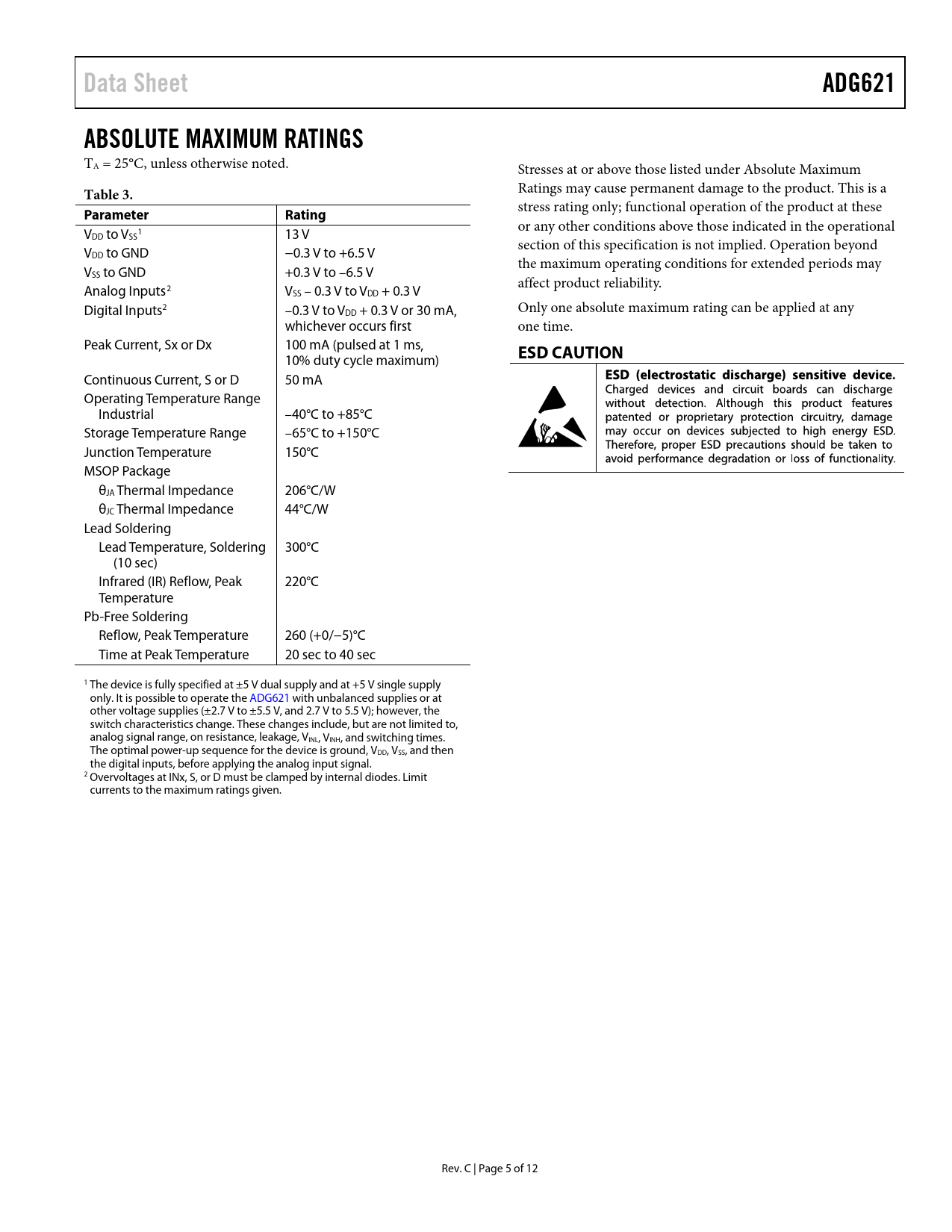

Data Sheet. ADG621. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADG621 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these V or any other conditions above those indicated in the operational 1 DD to VSS 13 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +6.5 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to –6.5 V affect product reliability. Analog Inputs2 VSS – 0.3 V to VDD + 0.3 V Digital Inputs2 –0.3 V to VDD + 0.3 V or 30 mA, Only one absolute maximum rating can be applied at any whichever occurs first one time. Peak Current, Sx or Dx 100 mA (pulsed at 1 ms,
ESD CAUTION
10% duty cycle maximum) Continuous Current, S or D 50 mA Operating Temperature Range Industrial –40°C to +85°C Storage Temperature Range –65°C to +150°C Junction Temperature 150°C MSOP Package θJA Thermal Impedance 206°C/W θJC Thermal Impedance 44°C/W Lead Soldering Lead Temperature, Soldering 300°C (10 sec) Infrared (IR) Reflow, Peak 220°C Temperature Pb-Free Soldering Reflow, Peak Temperature 260 (+0/−5)°C Time at Peak Temperature 20 sec to 40 sec 1 The device is fully specified at ±5 V dual supply and at +5 V single supply only. It is possible to operate the ADG621 with unbalanced supplies or at other voltage supplies (±2.7 V to ±5.5 V, and 2.7 V to 5.5 V); however, the switch characteristics change. These changes include, but are not limited to, analog signal range, on resistance, leakage, VINL, VINH, and switching times. The optimal power-up sequence for the device is ground, VDD, VSS, and then the digital inputs, before applying the analog input signal. 2 Overvoltages at INx, S, or D must be clamped by internal diodes. Limit currents to the maximum ratings given. Rev. C | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
