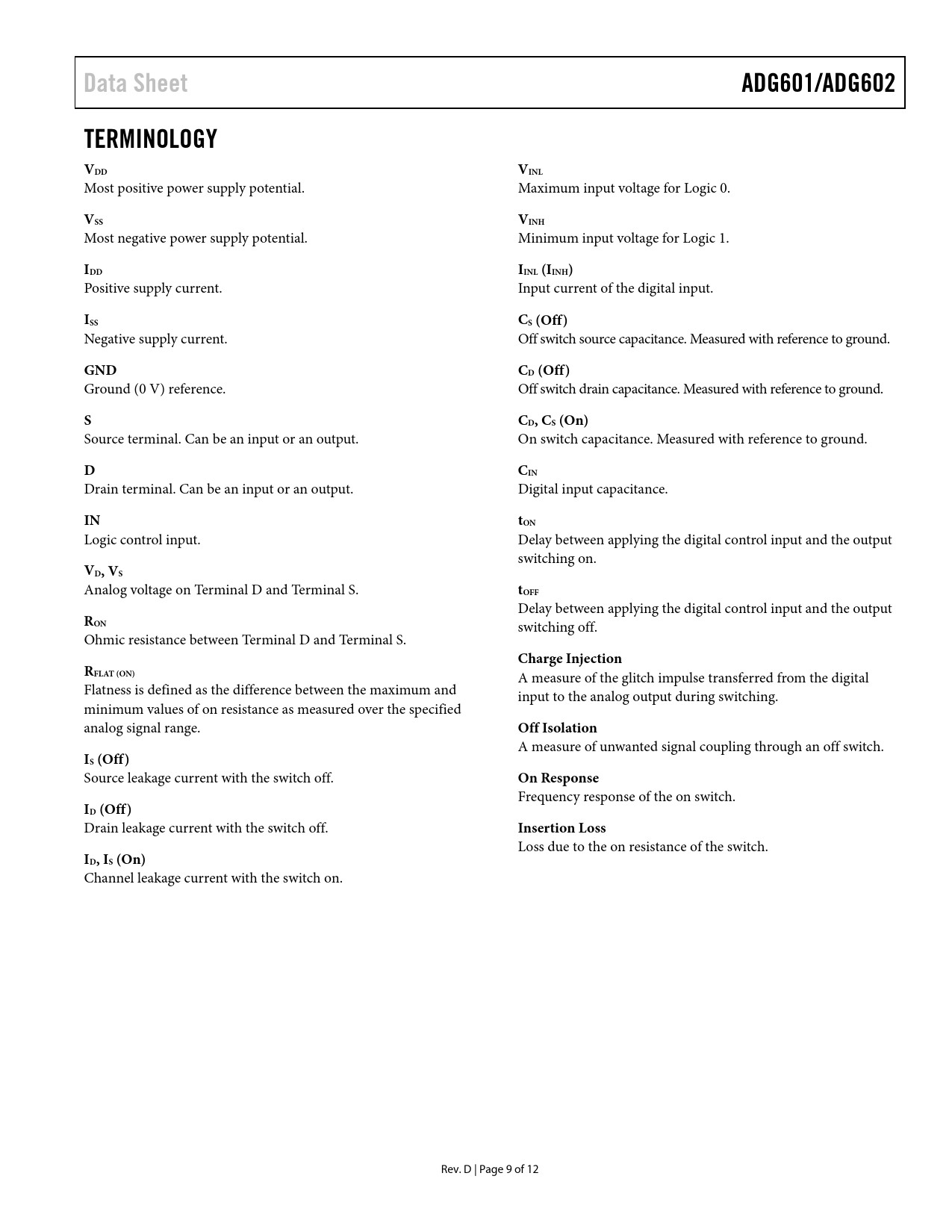

Data SheetADG601/ADG602TERMINOLOGY VDDVINL Most positive power supply potential. Maximum input voltage for Logic 0. VSSVINH Most negative power supply potential. Minimum input voltage for Logic 1. IDDIINL (IINH) Positive supply current. Input current of the digital input. ISSCS (Off) Negative supply current. Off switch source capacitance. Measured with reference to ground. GNDCD (Off) Ground (0 V) reference. Off switch drain capacitance. Measured with reference to ground. SCD, CS (On) Source terminal. Can be an input or an output. On switch capacitance. Measured with reference to ground. DCIN Drain terminal. Can be an input or an output. Digital input capacitance. INtON Logic control input. Delay between applying the digital control input and the output switching on. VD, VS Analog voltage on Terminal D and Terminal S. tOFF Delay between applying the digital control input and the output RON switching off. Ohmic resistance between Terminal D and Terminal S. Charge InjectionRFLAT (ON) A measure of the glitch impulse transferred from the digital Flatness is defined as the difference between the maximum and input to the analog output during switching. minimum values of on resistance as measured over the specified analog signal range. Off Isolation A measure of unwanted signal coupling through an off switch. IS (Off) Source leakage current with the switch off. On Response Frequency response of the on switch. ID (Off) Drain leakage current with the switch off. Insertion Loss Loss due to the on resistance of the switch. ID, IS (On) Channel leakage current with the switch on. Rev. D | Page 9 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
