Datasheet ADG601, ADG602 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 2 Ω, CMOS, ±5 V/+5 V SPST Switches |
| Seiten / Seite | 12 / 5 — Data Sheet. ADG601/ADG602. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter … |
| Revision | D |
| Dateiformat / Größe | PDF / 206 Kb |
| Dokumentensprache | Englisch |

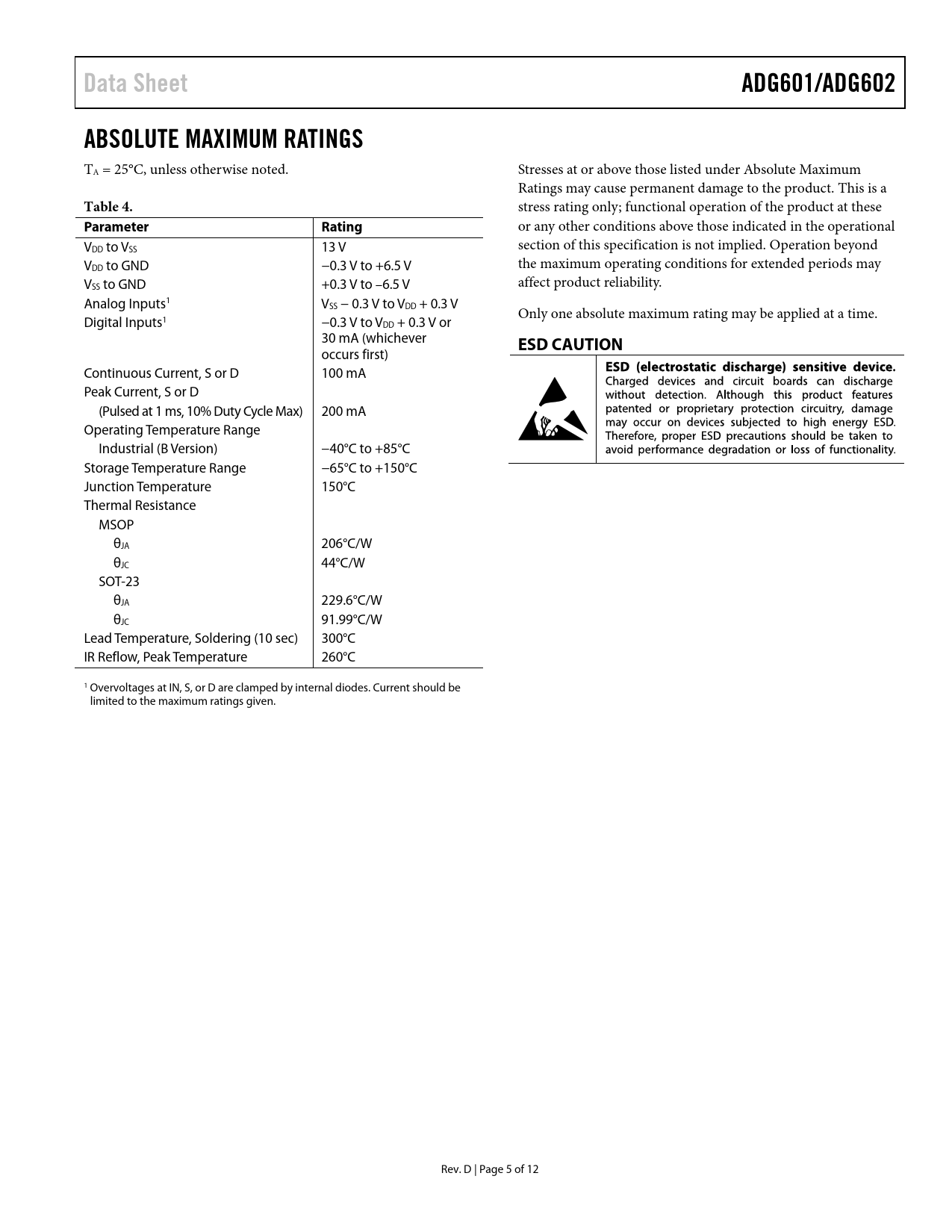

Data Sheet. ADG601/ADG602. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADG601/ADG602 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 4.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 13 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +6.5 V the maximum operating conditions for extended periods may V affect product reliability. SS to GND +0.3 V to –6.5 V Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V Only one absolute maximum rating may be applied at a time. Digital Inputs1 −0.3 V to VDD + 0.3 V or 30 mA (whichever
ESD CAUTION
occurs first) Continuous Current, S or D 100 mA Peak Current, S or D (Pulsed at 1 ms, 10% Duty Cycle Max) 200 mA Operating Temperature Range Industrial (B Version) −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Thermal Resistance MSOP θJA 206°C/W θJC 44°C/W SOT-23 θJA 229.6°C/W θJC 91.99°C/W Lead Temperature, Soldering (10 sec) 300°C IR Reflow, Peak Temperature 260°C 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. D | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
