Datasheet ADG613-EP (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/ +5 V/ +3 V, Quad SPST Switches |
| Seiten / Seite | 12 / 7 — Enhanced Product. ADG613-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. … |
| Revision | A |
| Dateiformat / Größe | PDF / 258 Kb |
| Dokumentensprache | Englisch |
Enhanced Product. ADG613-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. IN1. 16 IN2. 15 D2. VDD. TOP VIEW. GND. 12 NIC. (Not to Scale)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

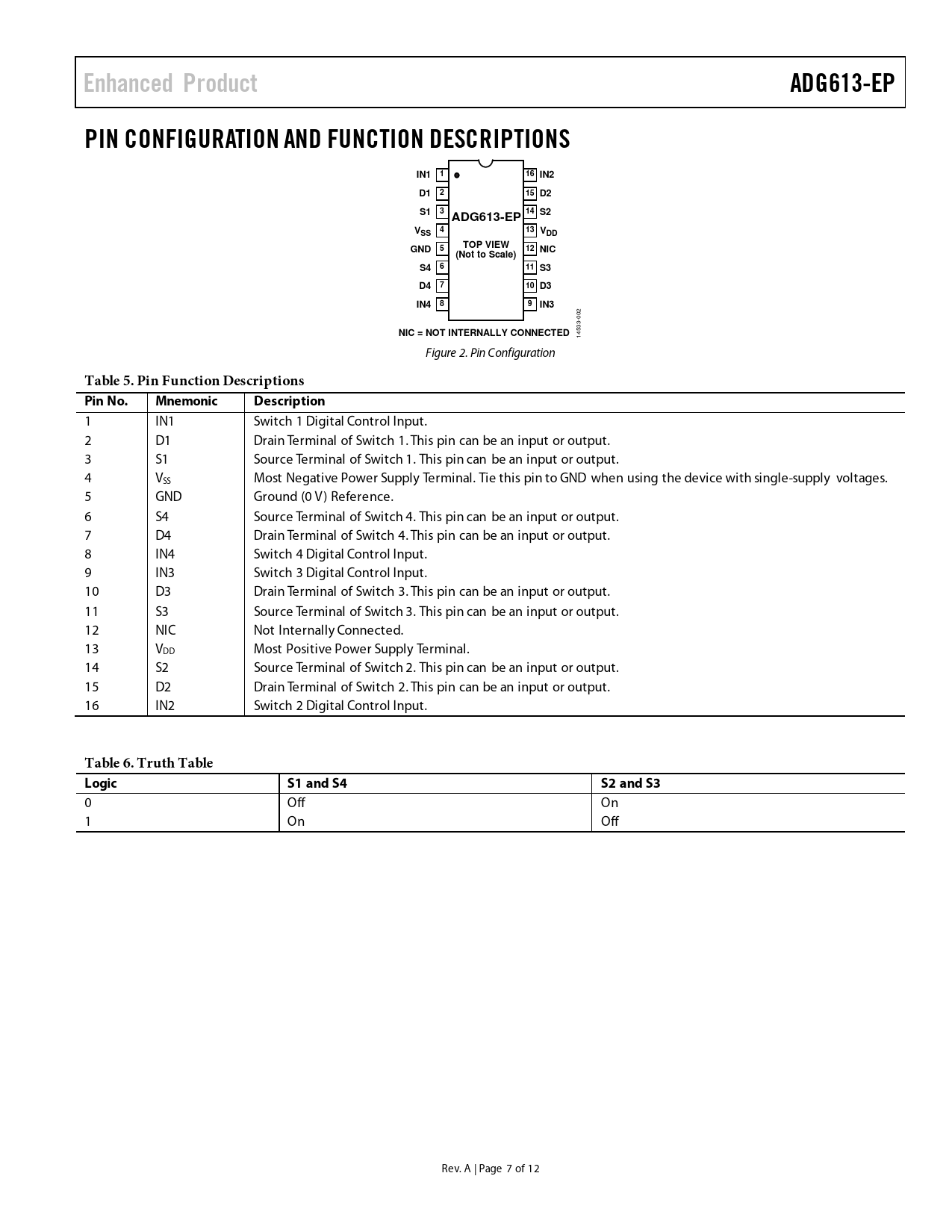

Enhanced Product ADG613-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 IN1 16 IN2 2 D1 15 D2 3 S1 14 ADG613-EP S2 4 V 13 SS VDD TOP VIEW 5 GND 12 NIC (Not to Scale) 6 S4 11 S3 7 D4 10 D3 8 IN4 9 IN3
002
NIC = NOT INTERNALLY CONNECTED
14533- Figure 2. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 IN1 Switch 1 Digital Control Input. 2 D1 Drain Terminal of Switch 1. This pin can be an input or output. 3 S1 Source Terminal of Switch 1. This pin can be an input or output. 4 VSS Most Negative Power Supply Terminal. Tie this pin to GND when using the device with single-supply voltages. 5 GND Ground (0 V) Reference. 6 S4 Source Terminal of Switch 4. This pin can be an input or output. 7 D4 Drain Terminal of Switch 4. This pin can be an input or output. 8 IN4 Switch 4 Digital Control Input. 9 IN3 Switch 3 Digital Control Input. 10 D3 Drain Terminal of Switch 3. This pin can be an input or output. 11 S3 Source Terminal of Switch 3. This pin can be an input or output. 12 NIC Not Internally Connected. 13 VDD Most Positive Power Supply Terminal. 14 S2 Source Terminal of Switch 2. This pin can be an input or output. 15 D2 Drain Terminal of Switch 2. This pin can be an input or output. 16 IN2 Switch 2 Digital Control Input.
Table 6. Truth Table Logic S1 and S4 S2 and S3
0 Off On 1 On Off Rev. A | Page 7 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL-SUPPLY OPERATION SINGLE-SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
