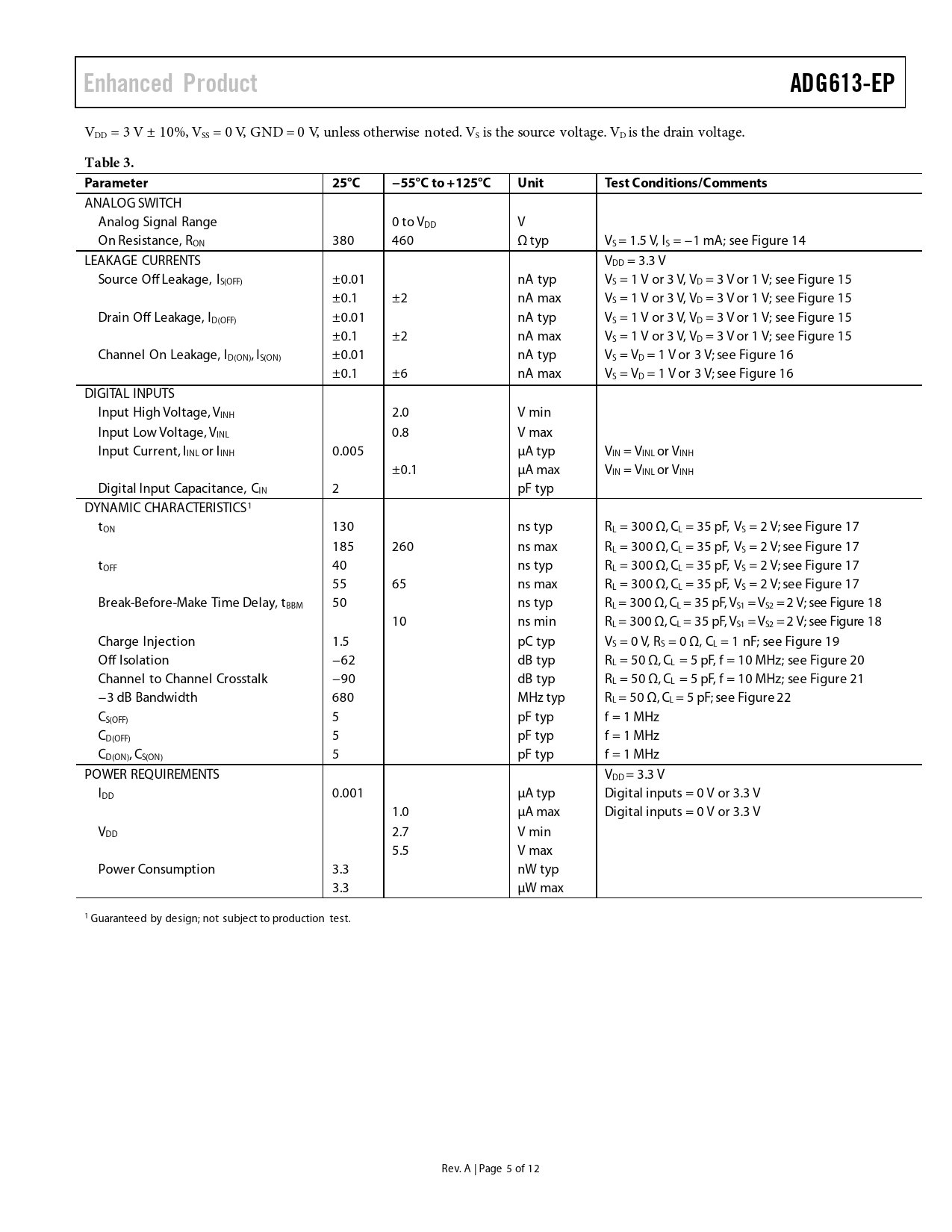

Enhanced Product. ADG613-EP. Table 3. Parameter. 25°C. −55°C to +125°C. Unit. Test Conditions/Comments
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 11 link to page 11 link to page 11
Enhanced Product ADG613-EP
VDD = 3 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted. VS is the source voltage. VD is the drain voltage.
Table 3. Parameter 25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance, RON 380 460 Ω typ VS = 1.5 V, IS = −1 mA; see Figure 14 LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage, IS(OFF) ±0.01 nA typ VS = 1 V or 3 V, VD = 3 V or 1 V; see Figure 15 ±0.1 ±2 nA max VS = 1 V or 3 V, VD = 3 V or 1 V; see Figure 15 Drain Off Leakage, ID(OFF) ±0.01 nA typ VS = 1 V or 3 V, VD = 3 V or 1 V; see Figure 15 ±0.1 ±2 nA max VS = 1 V or 3 V, VD = 3 V or 1 V; see Figure 15 Channel On Leakage, ID(ON), IS(ON) ±0.01 nA typ VS = VD = 1 V or 3 V; see Figure 16 ±0.1 ±6 nA max VS = VD = 1 V or 3 V; see Figure 16 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max VIN = VINL or VINH Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS1 tON 130 ns typ RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 185 260 ns max RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 tOFF 40 ns typ RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 55 65 ns max RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 Break-Before-Make Time Delay, tBBM 50 ns typ RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 2 V; see Figure 18 10 ns min RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 2 V; see Figure 18 Charge Injection 1.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation −62 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; see Figure 20 Channel to Channel Crosstalk −90 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; see Figure 21 −3 dB Bandwidth 680 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 22 CS(OFF) 5 pF typ f = 1 MHz CD(OFF) 5 pF typ f = 1 MHz CD(ON), CS(ON) 5 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.3 V IDD 0.001 μA typ Digital inputs = 0 V or 3.3 V 1.0 μA max Digital inputs = 0 V or 3.3 V VDD 2.7 V min 5.5 V max Power Consumption 3.3 nW typ 3.3 µW max 1 Guaranteed by design; not subject to production test. Rev. A | Page 5 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL-SUPPLY OPERATION SINGLE-SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
