Datasheet ADG611, ADG612, ADG613 (Analog Devices)

HerstellerAnalog Devices
Beschreibung1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches
Seiten / Seite16 / 1 — 1 pC Charge Injection, 100 pA Leakage,. CMOS, ±5 V/+5 V/+3 V, Quad SPST …
RevisionA
Dateiformat / GrößePDF / 364 Kb
DokumentenspracheEnglisch

1 pC Charge Injection, 100 pA Leakage,. CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches. ADG611/ADG612/ADG613. FEATURES

Datasheet ADG611, ADG612, ADG613 Analog Devices, Revision: A

Modelllinie für dieses Datenblatt

Textversion des Dokuments

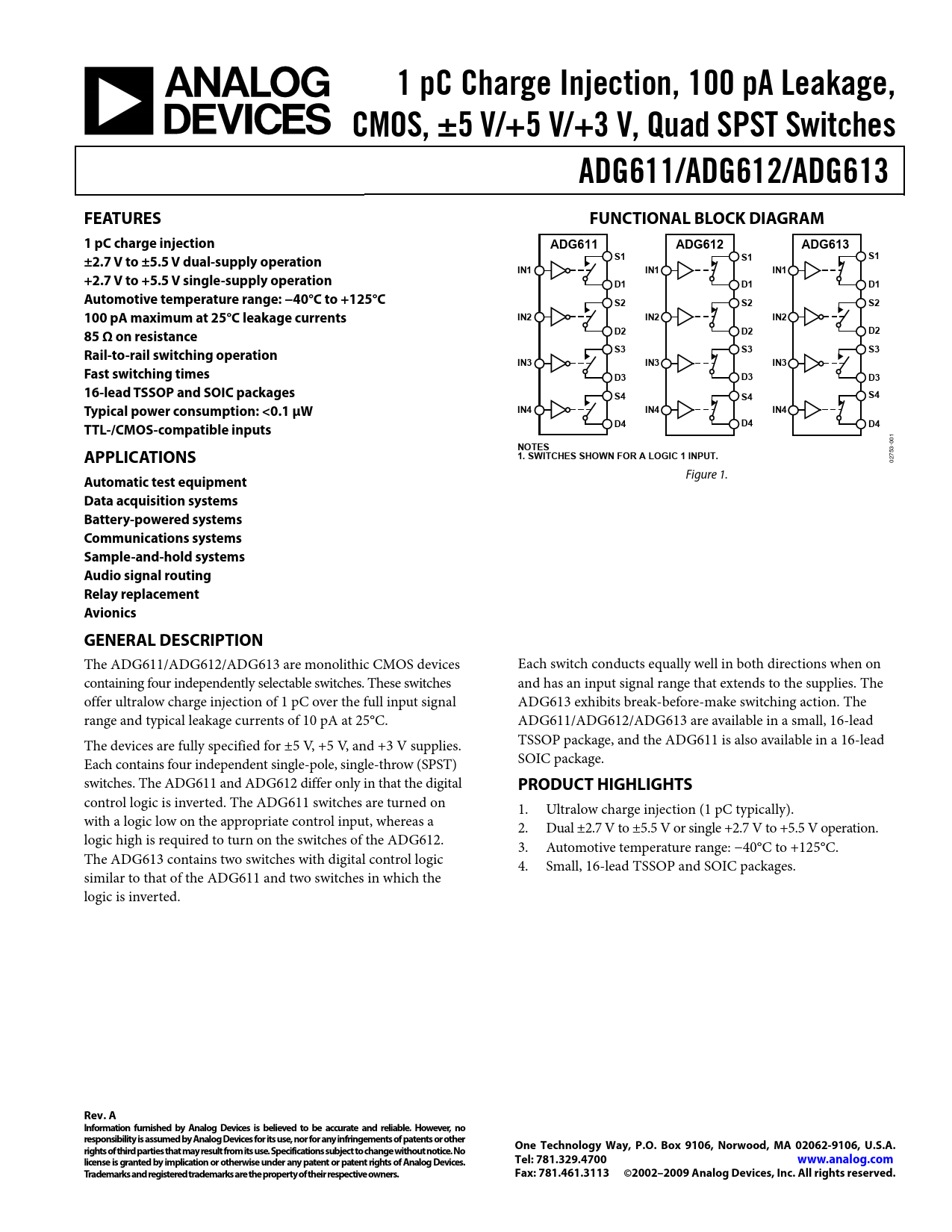

1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches ADG611/ADG612/ADG613 FEATURES FUNCTIONAL BLOCK DIAGRAM 1 pC charge injection ADG611 ADG612 ADG613 S1 S1 ±2.7 V to ±5.5 V dual-supply operation S1 IN1 IN1 IN1 +2.7 V to +5.5 V single-supply operation D1 D1 D1 Automotive temperature range: −40°C to +125°C S2 S2 S2 100 pA maximum at 25°C leakage currents IN2 IN2 IN2 D2 D2 D2 85 Ω on resistance S3 S3 S3 Rail-to-rail switching operation IN3 IN3 IN3 Fast switching times D3 D3 D3 16-lead TSSOP and SOIC packages S4 S4 S4 Typical power consumption: <0.1 μW IN4 IN4 IN4 D4 D4 D4 TTL-/CMOS-compatible inputs NOTES
001
APPLICATIONS 1. SWITCHES SHOWN FOR A LOGIC 1 INPUT.
02753- Figure 1.
Automatic test equipment Data acquisition systems Battery-powered systems Communications systems Sample-and-hold systems Audio signal routing Relay replacement Avionics GENERAL DESCRIPTION
The ADG611/ADG612/ADG613 are monolithic CMOS devices Each switch conducts equally well in both directions when on containing four independently selectable switches. These switches and has an input signal range that extends to the supplies. The offer ultralow charge injection of 1 pC over the full input signal ADG613 exhibits break-before-make switching action. The range and typical leakage currents of 10 pA at 25°C. ADG611/ADG612/ADG613 are available in a small, 16-lead The devices are fully specified for ±5 V, +5 V, and +3 V supplies. TSSOP package, and the ADG611 is also available in a 16-lead Each contains four independent single-pole, single-throw (SPST) SOIC package. switches. The ADG611 and ADG612 differ only in that the digital
PRODUCT HIGHLIGHTS
control logic is inverted. The ADG611 switches are turned on 1. Ultralow charge injection (1 pC typically). with a logic low on the appropriate control input, whereas a 2. Dual ±2.7 V to ±5.5 V or single +2.7 V to +5.5 V operation. logic high is required to turn on the switches of the ADG612. 3. Automotive temperature range: −40°C to +125°C. The ADG613 contains two switches with digital control logic 4. Small, 16-lead TSSOP and SOIC packages. similar to that of the ADG611 and two switches in which the logic is inverted.
Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2002–2009 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL-SUPPLY OPERATION SINGLE-SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
