Datasheet ADG1604 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V, 4:1 Multiplexer |
| Seiten / Seite | 20 / 8 — ADG1604. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter. … |
| Revision | B |
| Dateiformat / Größe | PDF / 461 Kb |
| Dokumentensprache | Englisch |
ADG1604. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 7

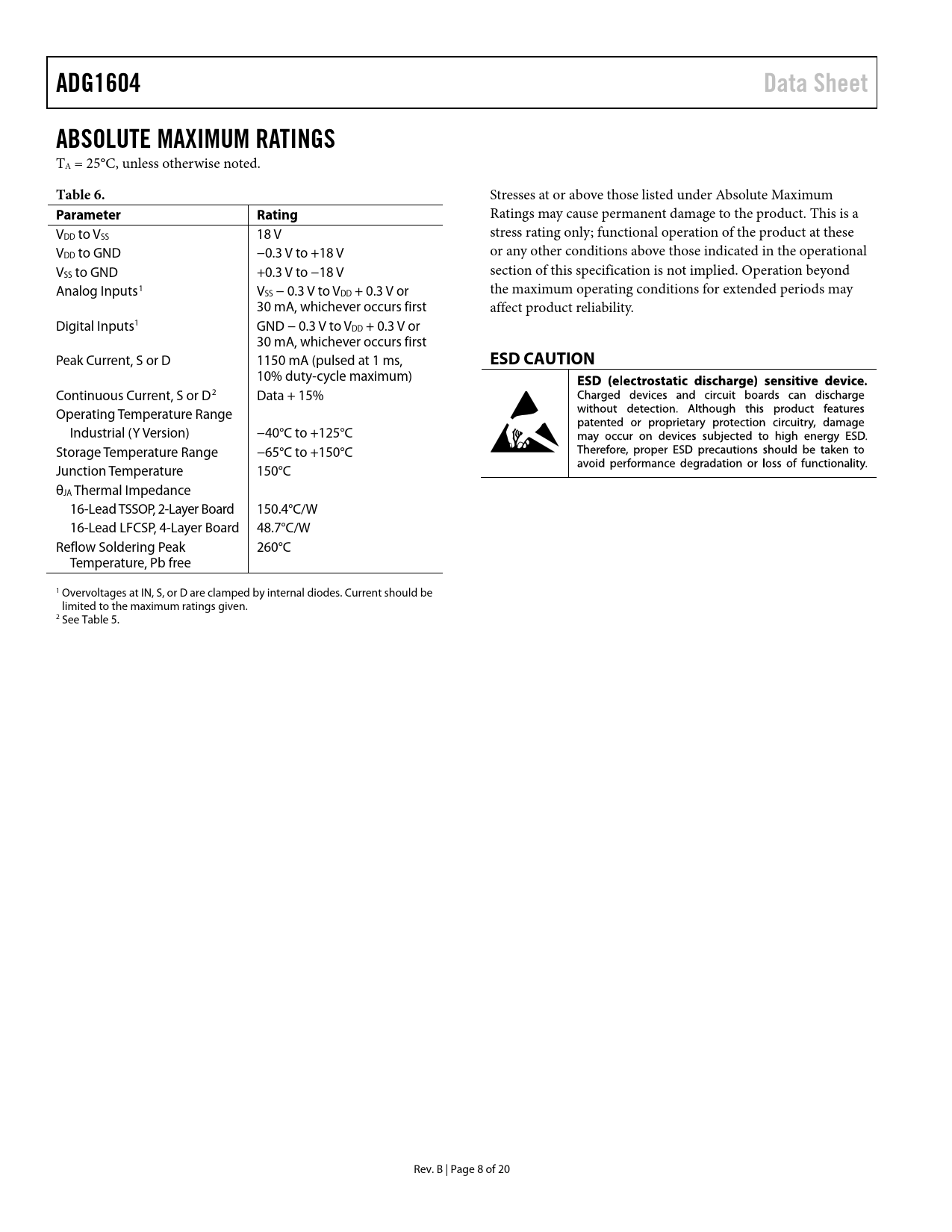

ADG1604 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a VDD to VSS 18 V stress rating only; functional operation of the product at these VDD to GND −0.3 V to +18 V or any other conditions above those indicated in the operational VSS to GND +0.3 V to −18 V section of this specification is not implied. Operation beyond Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or the maximum operating conditions for extended periods may 30 mA, whichever occurs first affect product reliability. Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Peak Current, S or D 1150 mA (pulsed at 1 ms,
ESD CAUTION
10% duty-cycle maximum) Continuous Current, S or D2 Data + 15% Operating Temperature Range Industrial (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA Thermal Impedance 16-Lead TSSOP, 2-Layer Board 150.4°C/W 16-Lead LFCSP, 4-Layer Board 48.7°C/W Reflow Soldering Peak 260°C Temperature, Pb free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. 2 See Table 5. Rev. B | Page 8 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
