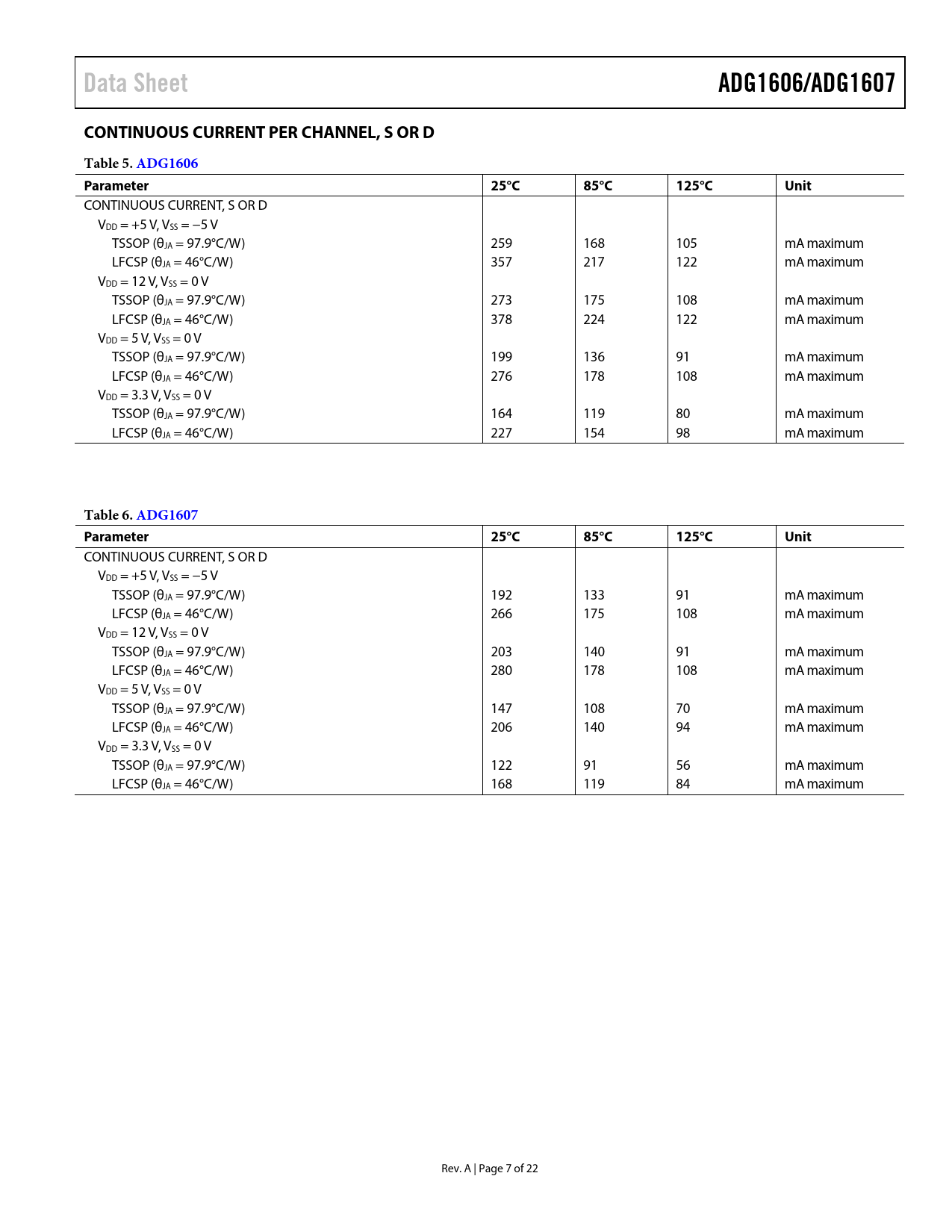

Data Sheet ADG1606/ADG1607 CONTINUOUS CURRENT PER CHANNEL, S OR D Table 5. ADG1606 Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, S OR D VDD = +5 V, VSS = −5 V TSSOP (θJA = 97.9°C/W) 259 168 105 mA maximum LFCSP (θJA = 46°C/W) 357 217 122 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 273 175 108 mA maximum LFCSP (θJA = 46°C/W) 378 224 122 mA maximum VDD = 5 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 199 136 91 mA maximum LFCSP (θJA = 46°C/W) 276 178 108 mA maximum VDD = 3.3 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 164 119 80 mA maximum LFCSP (θJA = 46°C/W) 227 154 98 mA maximum
Table 6. ADG1607 Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, S OR D VDD = +5 V, VSS = −5 V TSSOP (θJA = 97.9°C/W) 192 133 91 mA maximum LFCSP (θJA = 46°C/W) 266 175 108 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 203 140 91 mA maximum LFCSP (θJA = 46°C/W) 280 178 108 mA maximum VDD = 5 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 147 108 70 mA maximum LFCSP (θJA = 46°C/W) 206 140 94 mA maximum VDD = 3.3 V, VSS = 0 V TSSOP (θJA = 97.9°C/W) 122 91 56 mA maximum LFCSP (θJA = 46°C/W) 168 119 84 mA maximum Rev. A | Page 7 of 22 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
