Datasheet ADG5433W (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | High Voltage, Latch-up Proof, Triple SPDT Switches |
| Seiten / Seite | 20 / 1 — High Voltage, Latch-Up Proof,. Triple SPDT Switches. Data Sheet. … |
| Revision | A |
| Dateiformat / Größe | PDF / 387 Kb |
| Dokumentensprache | Englisch |

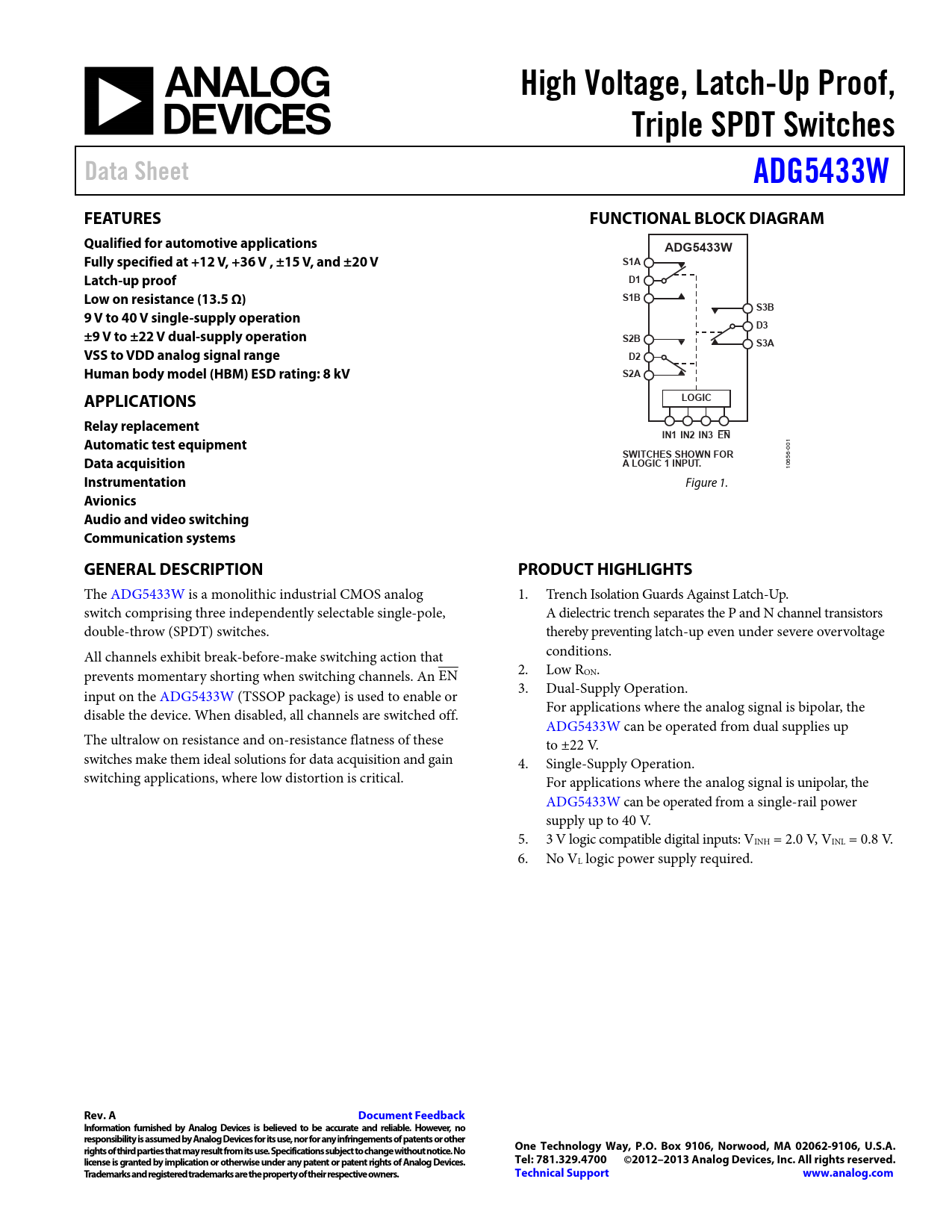

High Voltage, Latch-Up Proof,. Triple SPDT Switches. Data Sheet. ADG5433W. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Modelllinie für dieses Datenblatt
Textversion des Dokuments
High Voltage, Latch-Up Proof, Triple SPDT Switches Data Sheet ADG5433W FEATURES FUNCTIONAL BLOCK DIAGRAM Qualified for automotive applications ADG5433W Fully specified at +12 V, +36 V , ±15 V, and ±20 V S1A Latch-up proof D1 Low on resistance (13.5 Ω) S1B S3B 9 V to 40 V single-supply operation D3 ±9 V to ±22 V dual-supply operation S2B S3A VSS to VDD analog signal range D2 Human body model (HBM) ESD rating: 8 kV S2A APPLICATIONS LOGIC Relay replacement IN1 IN2 IN3 EN Automatic test equipment
1
SWITCHES SHOWN FOR
-00 6
Data acquisition A LOGIC 1 INPUT.
65 10
Instrumentation
Figure 1.
Avionics Audio and video switching Communication systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG5433W is a monolithic industrial CMOS analog 1. Trench Isolation Guards Against Latch-Up. switch comprising three independently selectable single-pole, A dielectric trench separates the P and N channel transistors double-throw (SPDT) switches. thereby preventing latch-up even under severe overvoltage All channels exhibit break-before-make switching action that conditions. prevents momentary shorting when switching channels. An EN 2. Low RON. 3. Dual-Supply Operation. input on the ADG5433W (TSSOP package) is used to enable or For applications where the analog signal is bipolar, the disable the device. When disabled, all channels are switched off. ADG5433W can be operated from dual supplies up The ultralow on resistance and on-resistance flatness of these to ±22 V. switches make them ideal solutions for data acquisition and gain 4. Single-Supply Operation. switching applications, where low distortion is critical. For applications where the analog signal is unipolar, the ADG5433W can be operated from a single-rail power supply up to 40 V. 5. 3 V logic compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. 6. No VL logic power supply required.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2012–2013 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide Automotive Products
