ADG5212/ADG5213. Data Sheet. ±20 V DUAL SUPPLY. Table 2. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 14 link to page 5

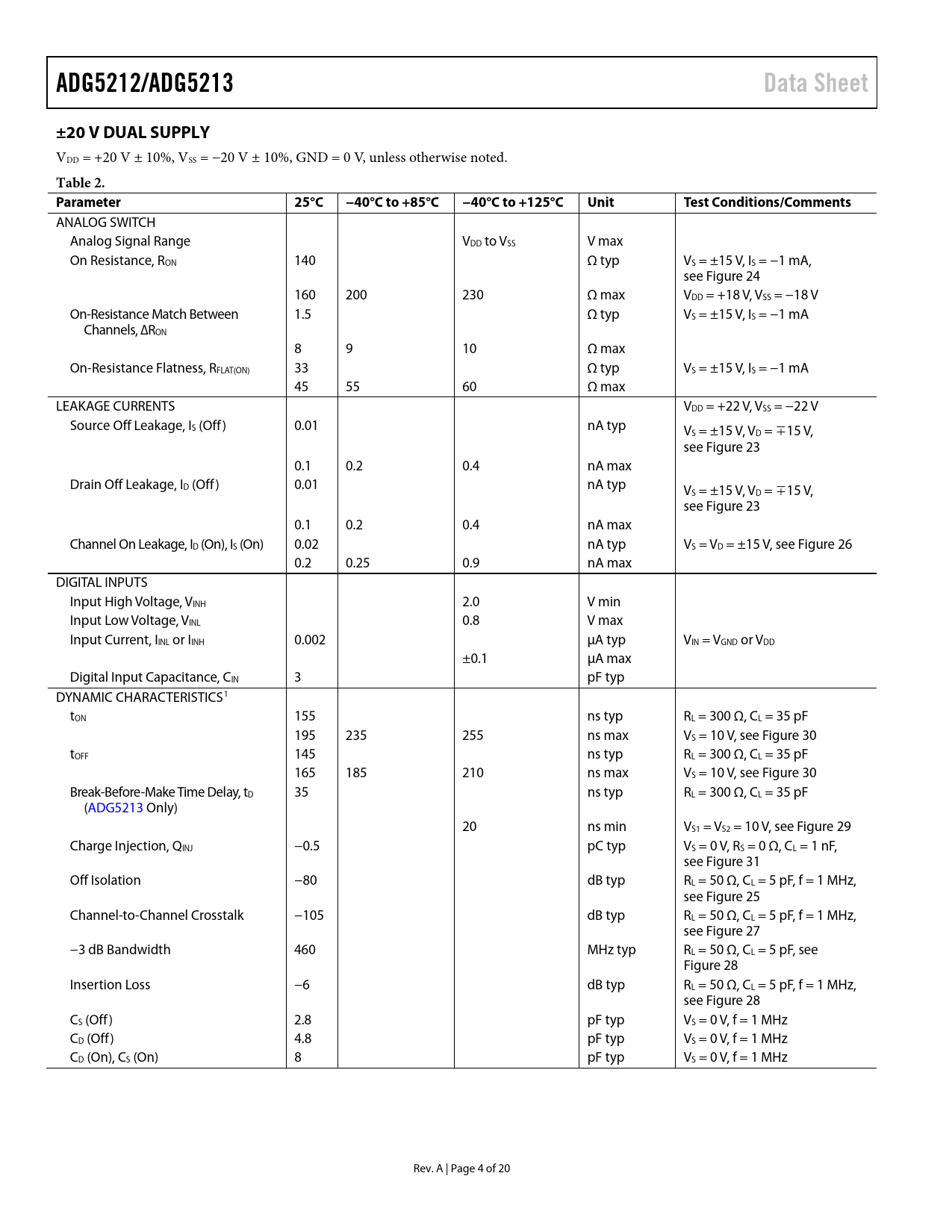

ADG5212/ADG5213 Data Sheet ±20 V DUAL SUPPLY
VDD = +20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V max On Resistance, RON 140 Ω typ VS = ±15 V, IS = −1 mA, see Figure 24 160 200 230 Ω max VDD = +18 V, VSS = −18 V On-Resistance Match Between 1.5 Ω typ VS = ±15 V, IS = −1 mA Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT(ON) 33 Ω typ VS = ±15 V, IS = −1 mA 45 55 60 Ω max LEAKAGE CURRENTS VDD = +22 V, VSS = −22 V Source Off Leakage, IS (Off) 0.01 nA typ VS = ±15 V, VD = ∓15 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = ±15 V, VD = ∓15 V, see Figure 23 0.1 0.2 0.4 nA max Channel On Leakage, ID (On), IS (On) 0.02 nA typ VS = VD = ±15 V, see Figure 26 0.2 0.25 0.9 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 155 ns typ RL = 300 Ω, CL = 35 pF 195 235 255 ns max VS = 10 V, see Figure 30 tOFF 145 ns typ RL = 300 Ω, CL = 35 pF 165 185 210 ns max VS = 10 V, see Figure 30 Break-Before-Make Time Delay, tD 35 ns typ RL = 300 Ω, CL = 35 pF (ADG5213 Only) 20 ns min VS1 = VS2 = 10 V, see Figure 29 Charge Injection, QINJ −0.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF, see Figure 31 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 25 Channel-to-Channel Crosstalk −105 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 −3 dB Bandwidth 460 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 28 Insertion Loss −6 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 CS (Off) 2.8 pF typ VS = 0 V, f = 1 MHz CD (Off) 4.8 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 8 pF typ VS = 0 V, f = 1 MHz Rev. A | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
ADG5212/ADG5213 Data Sheet ±20 V DUAL SUPPLY
VDD = +20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V max On Resistance, RON 140 Ω typ VS = ±15 V, IS = −1 mA, see Figure 24 160 200 230 Ω max VDD = +18 V, VSS = −18 V On-Resistance Match Between 1.5 Ω typ VS = ±15 V, IS = −1 mA Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT(ON) 33 Ω typ VS = ±15 V, IS = −1 mA 45 55 60 Ω max LEAKAGE CURRENTS VDD = +22 V, VSS = −22 V Source Off Leakage, IS (Off) 0.01 nA typ VS = ±15 V, VD = ∓15 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = ±15 V, VD = ∓15 V, see Figure 23 0.1 0.2 0.4 nA max Channel On Leakage, ID (On), IS (On) 0.02 nA typ VS = VD = ±15 V, see Figure 26 0.2 0.25 0.9 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 155 ns typ RL = 300 Ω, CL = 35 pF 195 235 255 ns max VS = 10 V, see Figure 30 tOFF 145 ns typ RL = 300 Ω, CL = 35 pF 165 185 210 ns max VS = 10 V, see Figure 30 Break-Before-Make Time Delay, tD 35 ns typ RL = 300 Ω, CL = 35 pF (ADG5213 Only) 20 ns min VS1 = VS2 = 10 V, see Figure 29 Charge Injection, QINJ −0.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF, see Figure 31 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 25 Channel-to-Channel Crosstalk −105 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 −3 dB Bandwidth 460 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 28 Insertion Loss −6 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 CS (Off) 2.8 pF typ VS = 0 V, f = 1 MHz CD (Off) 4.8 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 8 pF typ VS = 0 V, f = 1 MHz Rev. A | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
