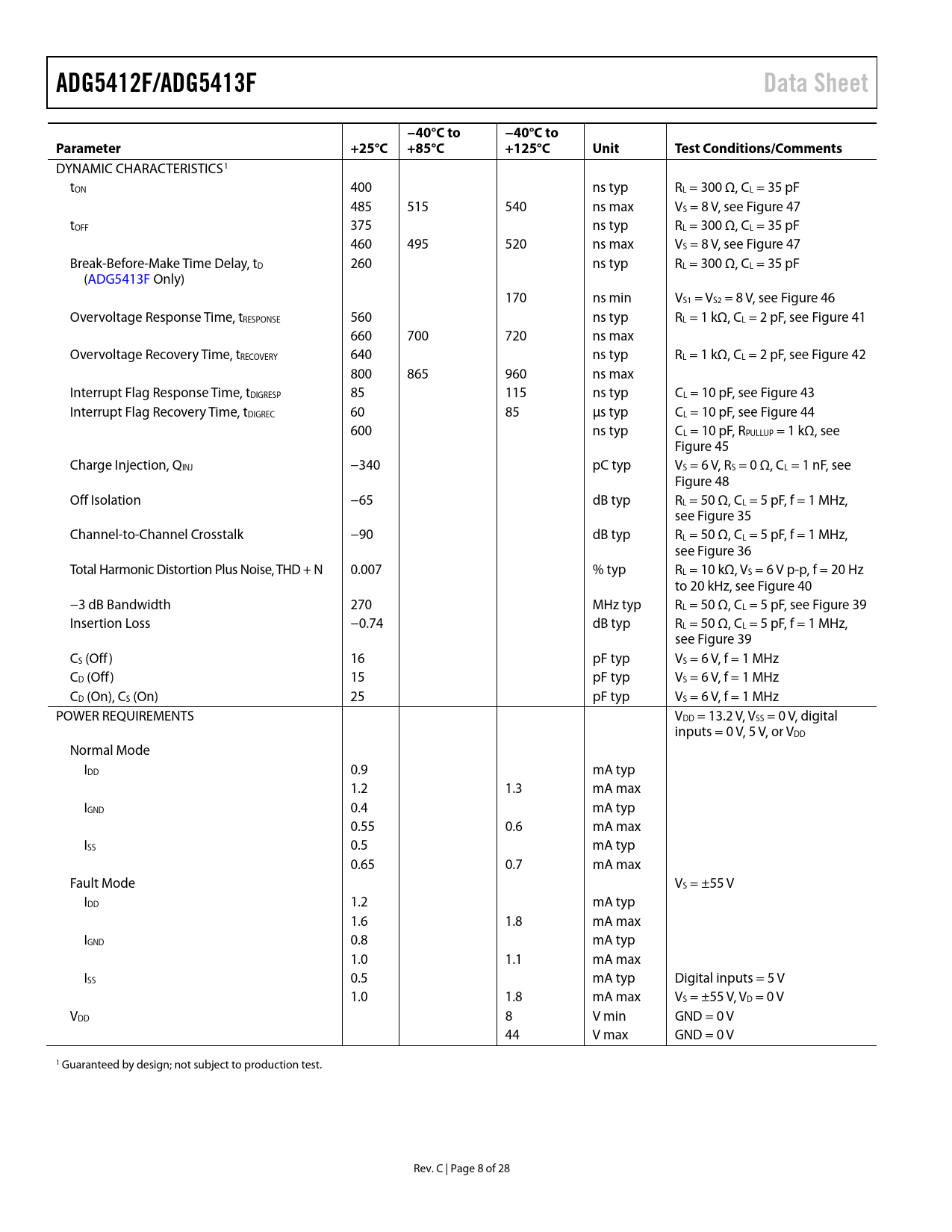

ADG5412F/ADG5413F Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 tON 400 ns typ RL = 300 Ω, CL = 35 pF 485 515 540 ns max VS = 8 V, see Figure 47 tOFF 375 ns typ RL = 300 Ω, CL = 35 pF 460 495 520 ns max VS = 8 V, see Figure 47 Break-Before-Make Time Delay, tD 260 ns typ RL = 300 Ω, CL = 35 pF (ADG5413F Only) 170 ns min VS1 = VS2 = 8 V, see Figure 46 Overvoltage Response Time, tRESPONSE 560 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 41 660 700 720 ns max Overvoltage Recovery Time, tRECOVERY 640 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 42 800 865 960 ns max Interrupt Flag Response Time, tDIGRESP 85 115 ns typ CL = 10 pF, see Figure 43 Interrupt Flag Recovery Time, tDIGREC 60 85 µs typ CL = 10 pF, see Figure 44 600 ns typ CL = 10 pF, RPULLUP = 1 kΩ, see Figure 45 Charge Injection, QINJ −340 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 48 Off Isolation −65 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 35 Channel-to-Channel Crosstalk −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 36 Total Harmonic Distortion Plus Noise, THD + N 0.007 % typ RL = 10 kΩ, VS = 6 V p-p, f = 20 Hz to 20 kHz, see Figure 40 −3 dB Bandwidth 270 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 39 Insertion Loss −0.74 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 39 CS (Off) 16 pF typ VS = 6 V, f = 1 MHz CD (Off) 15 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 25 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V, VSS = 0 V, digital inputs = 0 V, 5 V, or VDD Normal Mode IDD 0.9 mA typ 1.2 1.3 mA max IGND 0.4 mA typ 0.55 0.6 mA max ISS 0.5 mA typ 0.65 0.7 mA max Fault Mode VS = ±55 V IDD 1.2 mA typ 1.6 1.8 mA max IGND 0.8 mA typ 1.0 1.1 mA max ISS 0.5 mA typ Digital inputs = 5 V 1.0 1.8 mA max VS = ±55 V, VD = 0 V VDD 8 V min GND = 0 V 44 V max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. C | Page 8 of 28 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE CHANNEL PROTECTION HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
