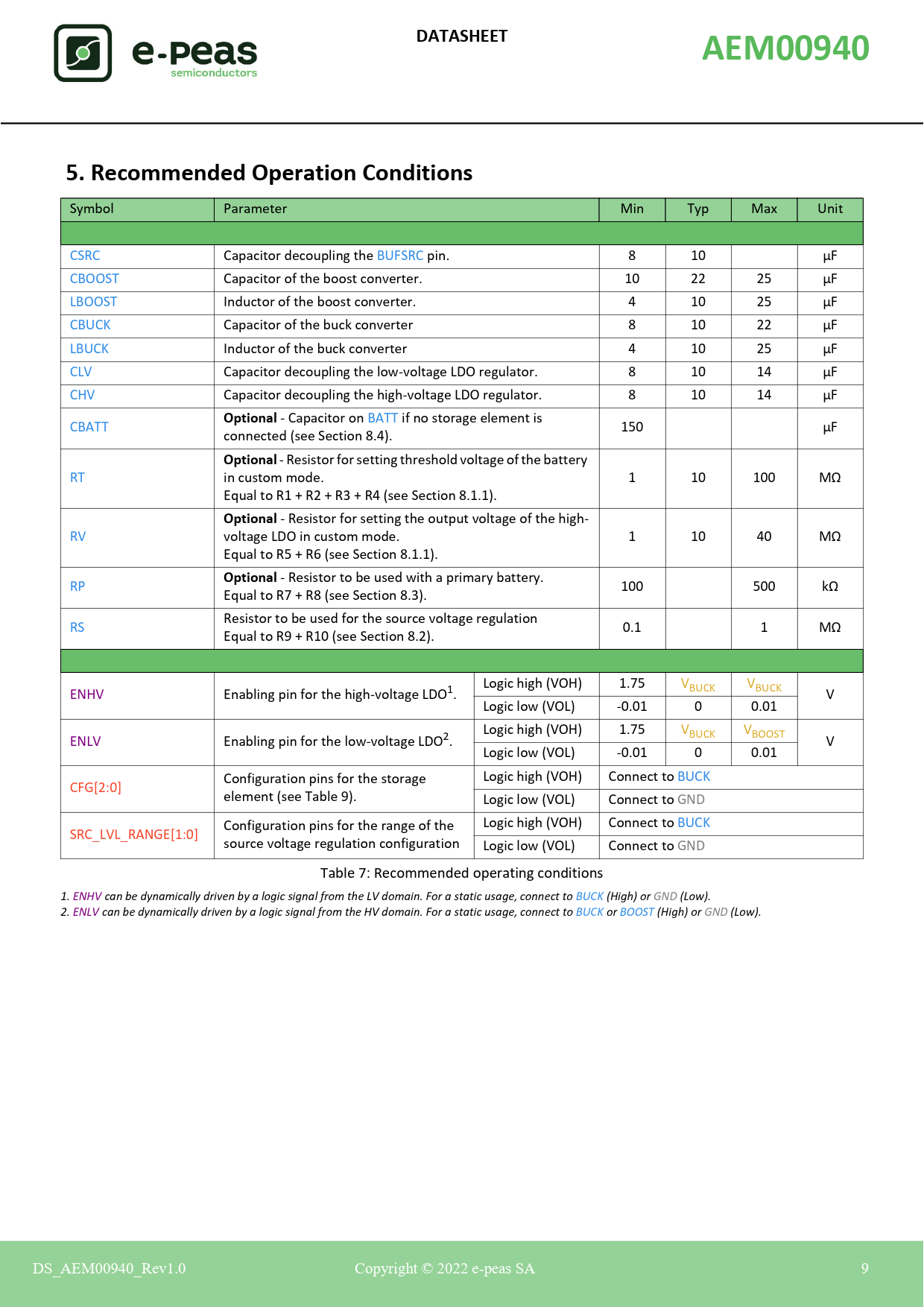

DATASHEET AEM00940 5. Recommended Operation Conditions
Symbol Parameter Min Typ Max Unit CSRC Capacitor decoupling the BUFSRC pin. 8 10 µF CBOOST Capacitor of the boost converter. 10 22 25 µF LBOOST Inductor of the boost converter. 4 10 25 µF CBUCK Capacitor of the buck converter 8 10 22 µF LBUCK Inductor of the buck converter 4 10 25 µF CLV Capacitor decoupling the low-voltage LDO regulator. 8 10 14 µF CHV Capacitor decoupling the high-voltage LDO regulator. 8 10 14 µF CBATT
Optional
- Capacitor on BATT if no storage element is connected (see Section 8.4). 150 µF
Optional
- Resistor for setting threshold voltage of the battery RT in custom mode. 1 10 100 MΩ Equal to R1 + R2 + R3 + R4 (see Section 8.1.1).
Optional
- Resistor for setting the output voltage of the high- RV voltage LDO in custom mode. 1 10 40 MΩ Equal to R5 + R6 (see Section 8.1.1). RP
Optional
- Resistor to be used with a primary battery. Equal to R7 + R8 (see Section 8.3). 100 500 kΩ RS Resistor to be used for the source voltage regulation Equal to R9 + R10 (see Section 8.2). 0.1 1 MΩ Logic high (VOH) 1.75 V ENHV Enabling pin for the high-voltage LDO1. BUCK VBUCK V Logic low (VOL) -0.01 0 0.01 Logic high (VOH) 1.75 V ENLV Enabling pin for the low-voltage LDO2. BUCK VBOOST V Logic low (VOL) -0.01 0 0.01 Logic high (VOH) Connect to BUCK CFG[2:0] Configuration pins for the storage element (see Table 9). Logic low (VOL) Connect to GND Logic high (VOH) Connect to BUCK SRC_LVL_RANGE[1:0] Configuration pins for the range of the source voltage regulation configuration Logic low (VOL) Connect to GND Table 7: Recommended operating conditions 1. ENHV can be dynamical y driven by a logic signal from the LV domain. For a static usage, connect to BUCK (High) or GND (Low). 2. ENLV can be dynamical y driven by a logic signal from the HV domain. For a static usage, connect to BUCK or BOOST (High) or GND (Low). DS_AEM00940_Rev1.0 Copyright © 2022 e-peas SA 9 Document Outline 1. Introduction 2. Absolute Maximum Ratings 3. Thermal Resistance 4. Typical Electrical Characteristics at 25 °C 5. Recommended Operation Conditions 6. Functional Block Diagram 7. Theory of Operation 7.1. Deep sleep & Wake up modes 7.1.1. Supercapacitor as a storage element. 7.1.2. Battery as a storage element. 7.2. Normal mode 7.2.1. Boost 7.2.2. Buck 7.2.3. LDO outputs 7.3. Overcharge mode 7.4. Primary mode 7.5. Shutdown mode 7.6. Balun for dual-cell supercapacitor 8. System configuration 8.1. Battery and LDOs configuration 8.1.1. Custom mode 8.2. Source voltage configuration 8.3. Primary battery configuration 8.4. No-battery configuration 8.5. Storage element information 8.6. External inductors information 8.7. External capacitors information 9. Typical Application Circuits 9.1. Example circuit 1 9.2. Example circuit 2 10. Performance Data 10.1. BOOST conversion efficiency for LBOOST = 10 µH 10.2. BOOST conversion efficiency for LBOOST = 22 µH 10.3. Quiescent current 10.4. High-voltage LDO regulation 10.5. Low-voltage LDO regulation 10.6. High-voltage LDO efficiency 10.7. Low-voltage LDO efficiency 11. Schematic 12. Layout Package Information 13.1. Plastic Quad Flatpack No-lead (QFN 28-pin 5x5mm) 13.2. Board Layout 14. Revision History
