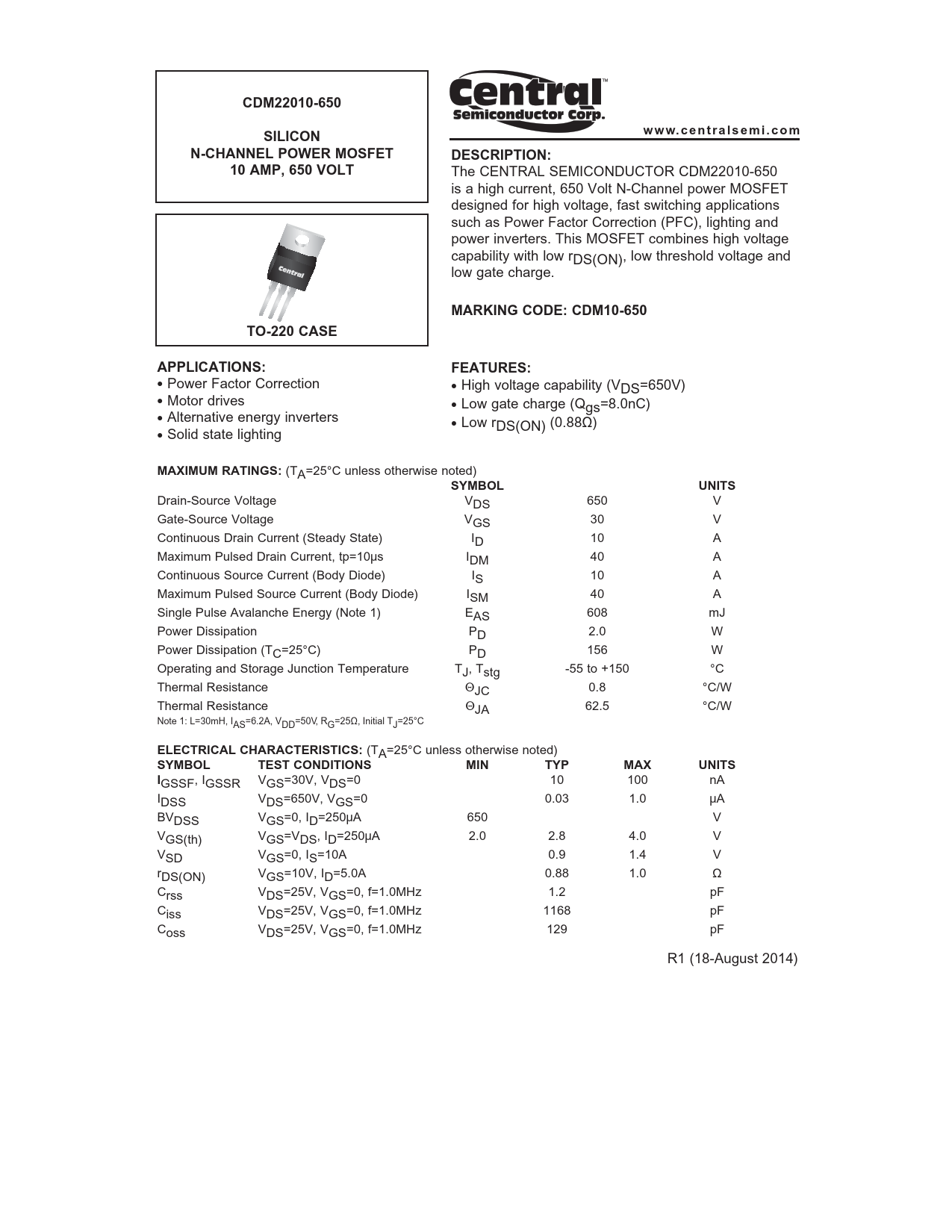

CDM22010-650 SILICON w w w. c e n t r a l s e m i . c o m N-CHANNEL POWER MOSFET DESCRIPTION: 10 AMP, 650 VOLT
The CENTRAL SEMICONDUCTOR CDM22010-650 is a high current, 650 Volt N-Channel power MOSFET designed for high voltage, fast switching applications such as Power Factor Correction (PFC), lighting and power inverters. This MOSFET combines high voltage capability with low rDS(ON), low threshold voltage and low gate charge.
MARKING CODE: CDM10-650 TO-220 CASE APPLICATIONS: FEATURES: •
Power Factor Correction
•
High voltage capability (VDS=650V)
•
Motor drives
•
Low gate charge (Qgs=8.0nC)
•
Alternative energy inverters
•
Low rDS(ON) (0.88Ω)
•
Solid state lighting
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL UNITS
Drain-Source Voltage VDS 650 V Gate-Source Voltage VGS 30 V Continuous Drain Current (Steady State) ID 10 A Maximum Pulsed Drain Current, tp=10μs IDM 40 A Continuous Source Current (Body Diode) IS 10 A Maximum Pulsed Source Current (Body Diode) ISM 40 A Single Pulse Avalanche Energy (Note 1) EAS 608 mJ Power Dissipation PD 2.0 W Power Dissipation (TC=25°C) PD 156 W Operating and Storage Junction Temperature TJ, Tstg -55 to +150 °C Thermal Resistance JC 0.8 °C/W Thermal Resistance JA 62.5 °C/W Note 1: L=30mH, IAS=6.2A, VDD=50V, RG=25Ω, Initial TJ=25°C
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS MIN TYP MAX UNITS I
