Datasheet BAT46 (STMicroelectronics) - 7
| Hersteller | STMicroelectronics |
| Beschreibung | Small signal Schottky diodes |
| Seiten / Seite | 11 / 7 — BAT46 Series. Package information. Table 6. SOD-323 dimensions. … |
| Dateiformat / Größe | PDF / 158 Kb |
| Dokumentensprache | Englisch |

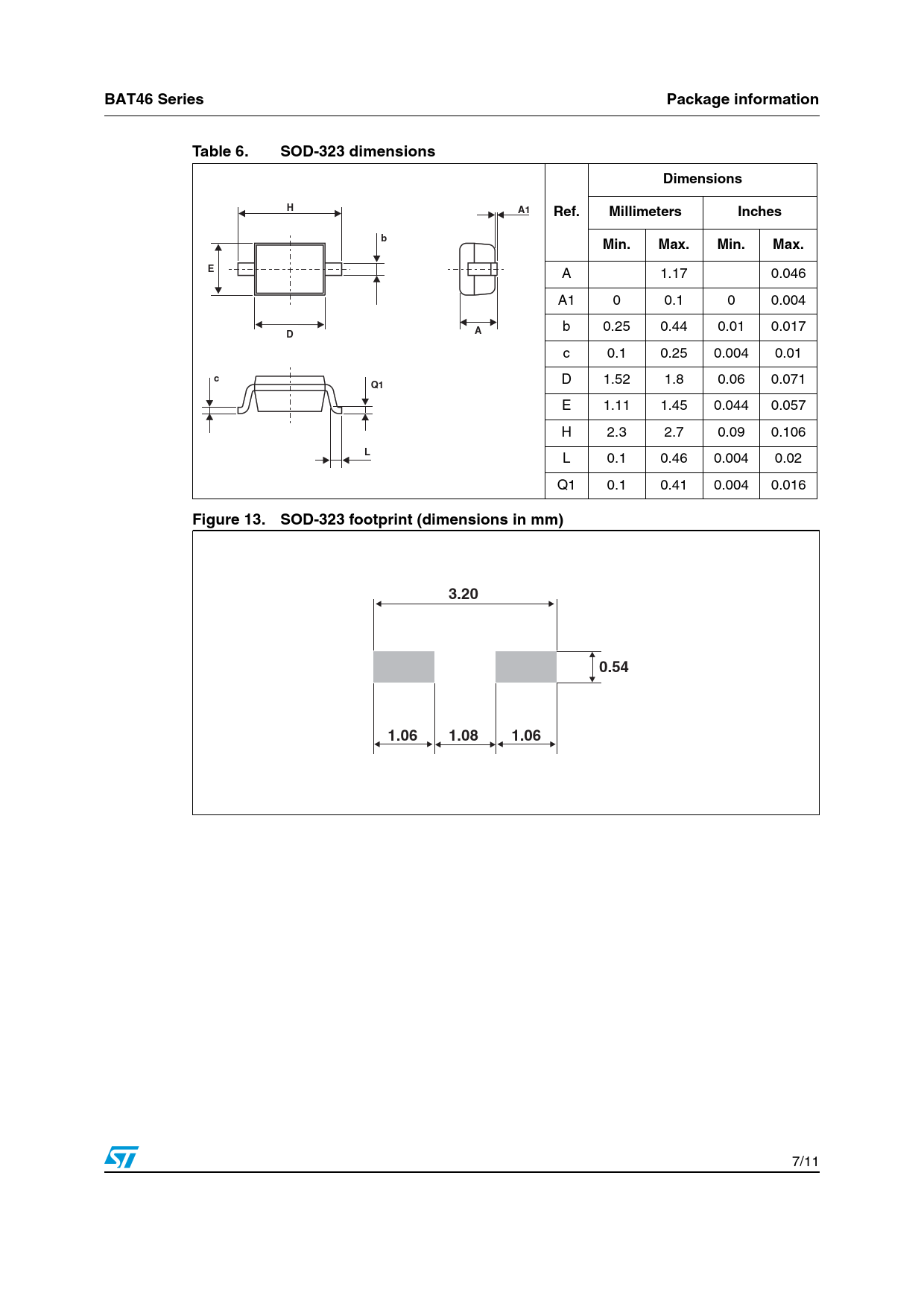

BAT46 Series. Package information. Table 6. SOD-323 dimensions. Dimensions. Ref. Millimeters. Inches. Min. Max. Figure 13
Modelllinie für dieses Datenblatt
Textversion des Dokuments
BAT46 Series Package information Table 6. SOD-323 dimensions Dimensions H A1 Ref. Millimeters Inches b Min. Max. Min. Max. E
A 1.17 0.046 A1 0 0.1 0 0.004
A
b 0.25 0.44 0.01 0.017
D
c 0.1 0.25 0.004 0.01
c
D 1.52 1.8 0.06 0.071
Q1
E 1.11 1.45 0.044 0.057 H 2.3 2.7 0.09 0.106
L
L 0.1 0.46 0.004 0.02 Q1 0.1 0.41 0.004 0.016
Figure 13. SOD-323 footprint (dimensions in mm) 3.20 0.54 1.06 1.08 1.06
