Datasheet H7605 (Siproin) - 2
| Hersteller | Siproin |
| Beschreibung | 300mA Low Power LDO |
| Seiten / Seite | 6 / 2 — H7605. 300mA Low Power LDO. Block Diagram. Pin Assignment. Absolute … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
H7605. 300mA Low Power LDO. Block Diagram. Pin Assignment. Absolute Maximum Ratings. Parameter. Symbol. Ratings. Units
Modelllinie für dieses Datenblatt
Textversion des Dokuments

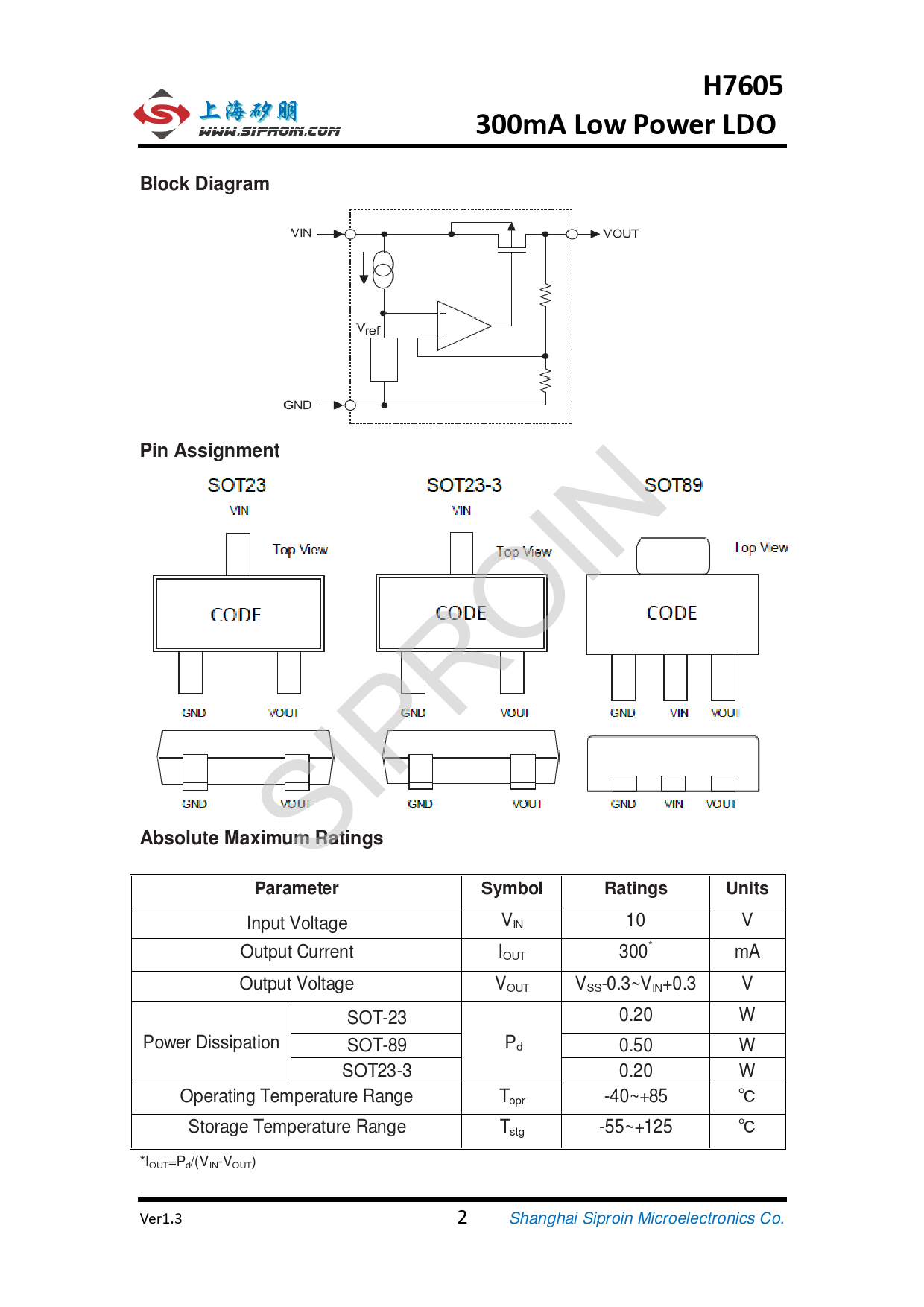

H7605 300mA Low Power LDO Block Diagram Pin Assignment
SIPROIN
Absolute Maximum Ratings Parameter Symbol Ratings Units
Input Voltage VIN 10 V Output Current IOUT 300* mA Output Voltage VOUT VSS-0.3~VIN+0.3 V SOT-23 0.20 W Power Dissipation SOT-89 Pd 0.50 W SOT23-3 0.20 W Operating Temperature Range Topr -40~+85 ℃ Storage Temperature Range Tstg -55~+125 ℃ *IOUT=Pd/(VIN-VOUT) Ver1.3 2 Shanghai Siproin Microelectronics Co.
SIPROIN
Absolute Maximum Ratings Parameter Symbol Ratings Units
Input Voltage VIN 10 V Output Current IOUT 300* mA Output Voltage VOUT VSS-0.3~VIN+0.3 V SOT-23 0.20 W Power Dissipation SOT-89 Pd 0.50 W SOT23-3 0.20 W Operating Temperature Range Topr -40~+85 ℃ Storage Temperature Range Tstg -55~+125 ℃ *IOUT=Pd/(VIN-VOUT) Ver1.3 2 Shanghai Siproin Microelectronics Co.
