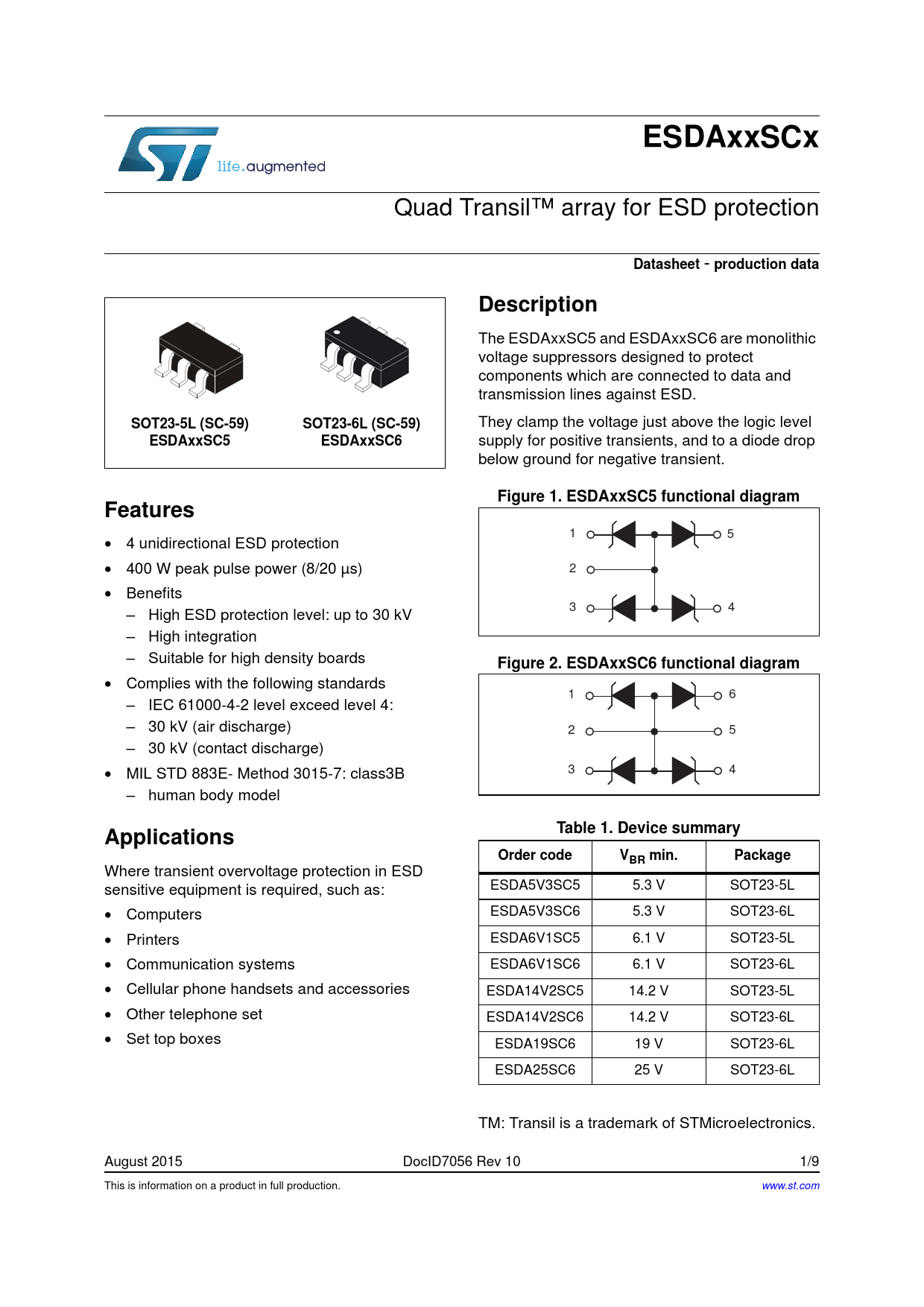

ESDAxxSCx Quad Transil™ array for ESD protection Datasheet - production dataDescription The ESDAxxSC5 and ESDAxxSC6 are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. SOT23-5L (SC-59)SOT23-6L (SC-59) They clamp the voltage just above the logic level ESDAxxSC5ESDAxxSC6 supply for positive transients, and to a diode drop below ground for negative transient. Figure 1. ESDAxxSC5 functional diagramFeatures 1 • 5 4 unidirectional ESD protection • 400 W peak pulse power (8/20 µs) 2 • Benefits 3 4 – High ESD protection level: up to 30 kV – High integration – Suitable for high density boards Figure 2. ESDAxxSC6 functional diagram • Complies with the following standards 1 6 – IEC 61000-4-2 level exceed level 4: – 30 kV (air discharge) 2 5 – 30 kV (contact discharge) • MIL STD 883E- Method 3015-7: class3B 3 4 – human body model ApplicationsTable 1. Device summaryOrder codeVBR min.Package Where transient overvoltage protection in ESD sensitive equipment is required, such as: ESDA5V3SC5 5.3 V SOT23-5L • Computers ESDA5V3SC6 5.3 V SOT23-6L • Printers ESDA6V1SC5 6.1 V SOT23-5L • Communication systems ESDA6V1SC6 6.1 V SOT23-6L • Cellular phone handsets and accessories ESDA14V2SC5 14.2 V SOT23-5L • Other telephone set ESDA14V2SC6 14.2 V SOT23-6L • Set top boxes ESDA19SC6 19 V SOT23-6L ESDA25SC6 25 V SOT23-6L TM: Transil is a trademark of STMicroelectronics. August 2015 DocID7056 Rev 10 1/9 This is information on a product in full production. www.st.com Document Outline Figure 1. ESDAxxSC5 functional diagram Figure 2. ESDAxxSC6 functional diagram Table 1. Device summary 1 Characteristics Table 2. Absolute ratings (Tamb = 25 °C) Table 3. Electrical characteristics - definitions (Tamb = 25 °C) Table 4. Electrical characteristics - values (Tamb = 25 °C) Figure 3. Peak power dissipation versus initial junction temperature Figure 4. Peak pulse power versus exponential pulse duration (Tj initial = 25 °C) Figure 5. Clamping voltage versus peak pulse current (Tj initial = 25 °C). Rectangular waveform tp = 2.5 µs Figure 6. Capacitance versus reverse applied voltage Figure 7. Relative variation of leakage current versus junction temperature Figure 8. Peak forward voltage drop versus peak forward current 2 Ordering information Figure 9. Ordering information scheme 3 Package information Table 5. SOT23-5L dimensions Figure 10. SOT23-5L footprint (dimensions in mm) Table 6. SOT23-6L dimensions Figure 11. SOT23-6L footprint (dimensions in mm) 4 Ordering information Table 7. Ordering information 5 Revision history Table 8. Document revision history
