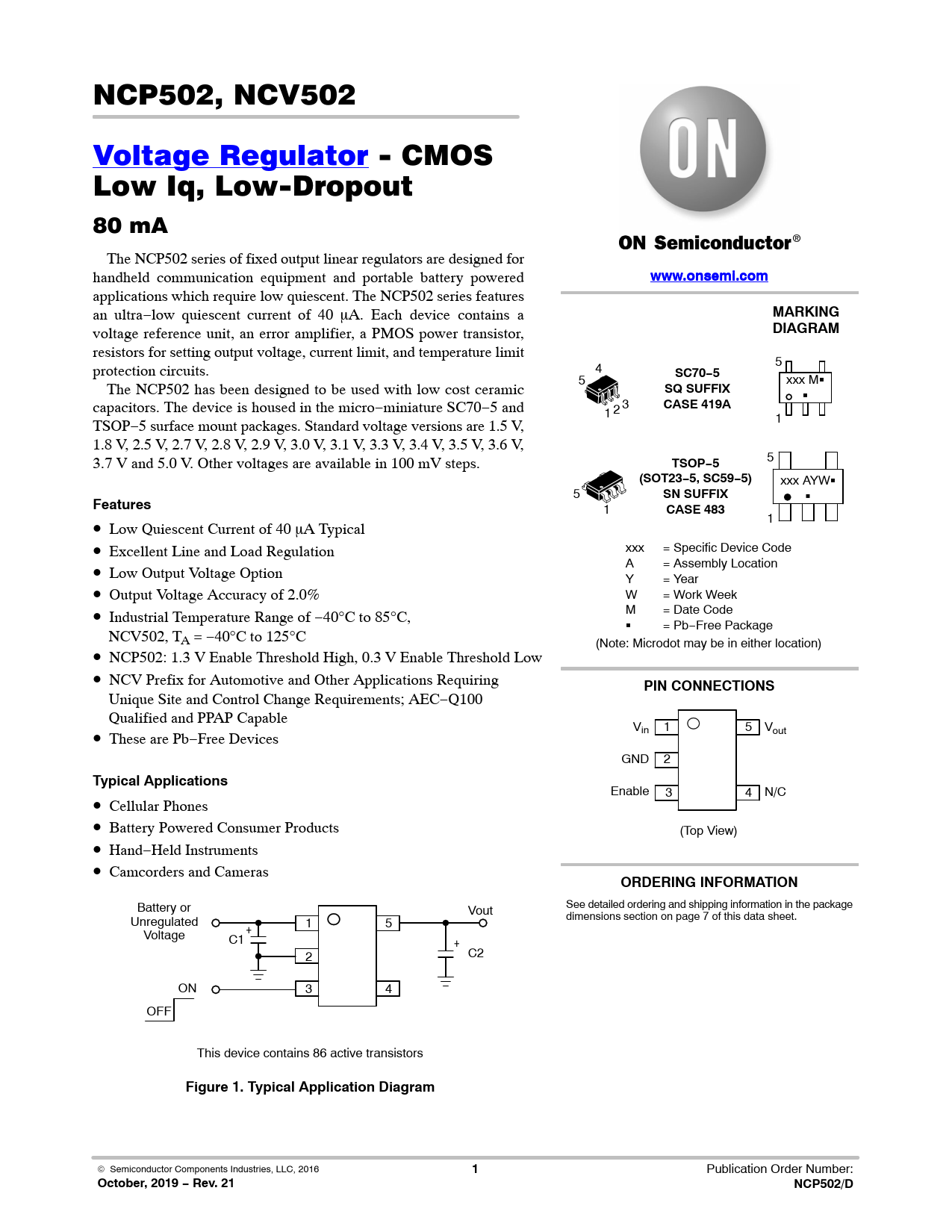

link to page 7 NCP502, NCV502 Voltage Regulator - CMOS Low Iq, Low-Dropout 80 mA The NCP502 series of fixed output linear regulators are designed for handheld communication equipment and portable battery powered
www. www onsemi.com .
applications which require low quiescent. The NCP502 series features an ultra−low quiescent current of 40 A. Each device contains a
MARKING
voltage reference unit, an error amplifier, a PMOS power transistor,
DIAGRAM
resistors for setting output voltage, current limit, and temperature limit protection circuits. 4 5 The NCP502 has been designed to be used with low cost ceramic 5
SC70−5
xxx MG
SQ SUFFIX
G capacitors. The device is housed in the micro−miniature SC70−5 and
CASE 419A
1 2 3 TSOP−5 surface mount packages. Standard voltage versions are 1.5 V, 1 1.8 V, 2.5 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 3.3 V, 3.4 V, 3.5 V, 3.6 V, 3.7 V and 5.0 V. Other voltages are available in 100 mV steps.
TSOP−5
5
(SOT23−5, SC59−5)
xxx AYWG 5
SN SUFFIX Features
G 1
CASE 483
• 1 Low Quiescent Current of 40 A Typical • Excellent Line and Load Regulation xxx = Specific Device Code • A = Assembly Location Low Output Voltage Option Y = Year • Output Voltage Accuracy of 2.0% W = Work Week • Industrial Temperature Range of −40°C to 85°C, M = Date Code G = Pb−Free Package NCV502, TA = −40°C to 125°C (Note: Microdot may be in either location) • NCP502: 1.3 V Enable Threshold High, 0.3 V Enable Threshold Low • NCV Prefix for Automotive and Other Applications Requiring
PIN CONNECTIONS
Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • Vin 1 5 V These are Pb−Free Devices out GND 2
Typical Applications
Enable 3 4 N/C • Cellular Phones • Battery Powered Consumer Products (Top View) • Hand−Held Instruments • Camcorders and Cameras
ORDERING INFORMATION
Battery or Vout See detailed ordering and shipping information in the package Unregulated 1 5 dimensions section on page 7 of this data sheet. Voltage + C1 + C2 2 ON 3 4 OFF This device contains 86 active transistors
Figure 1. Typical Application Diagram
