Datasheet PDTC143Z (Nexperia) - 2
| Hersteller | Nexperia |
| Beschreibung | NPN resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 47 kΩ |
| Seiten / Seite | 17 / 2 — Nexperia. PDTC143Z series. NPN resistor-equipped transistors; R1 = 4.7 k. … |
| Revision | 07082018 |
| Dateiformat / Größe | PDF / 1.6 Mb |
| Dokumentensprache | Englisch |
Nexperia. PDTC143Z series. NPN resistor-equipped transistors; R1 = 4.7 k. , R2 = 47 k. 2. Pinning. information. Table 3. Pinning. Pin
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 2

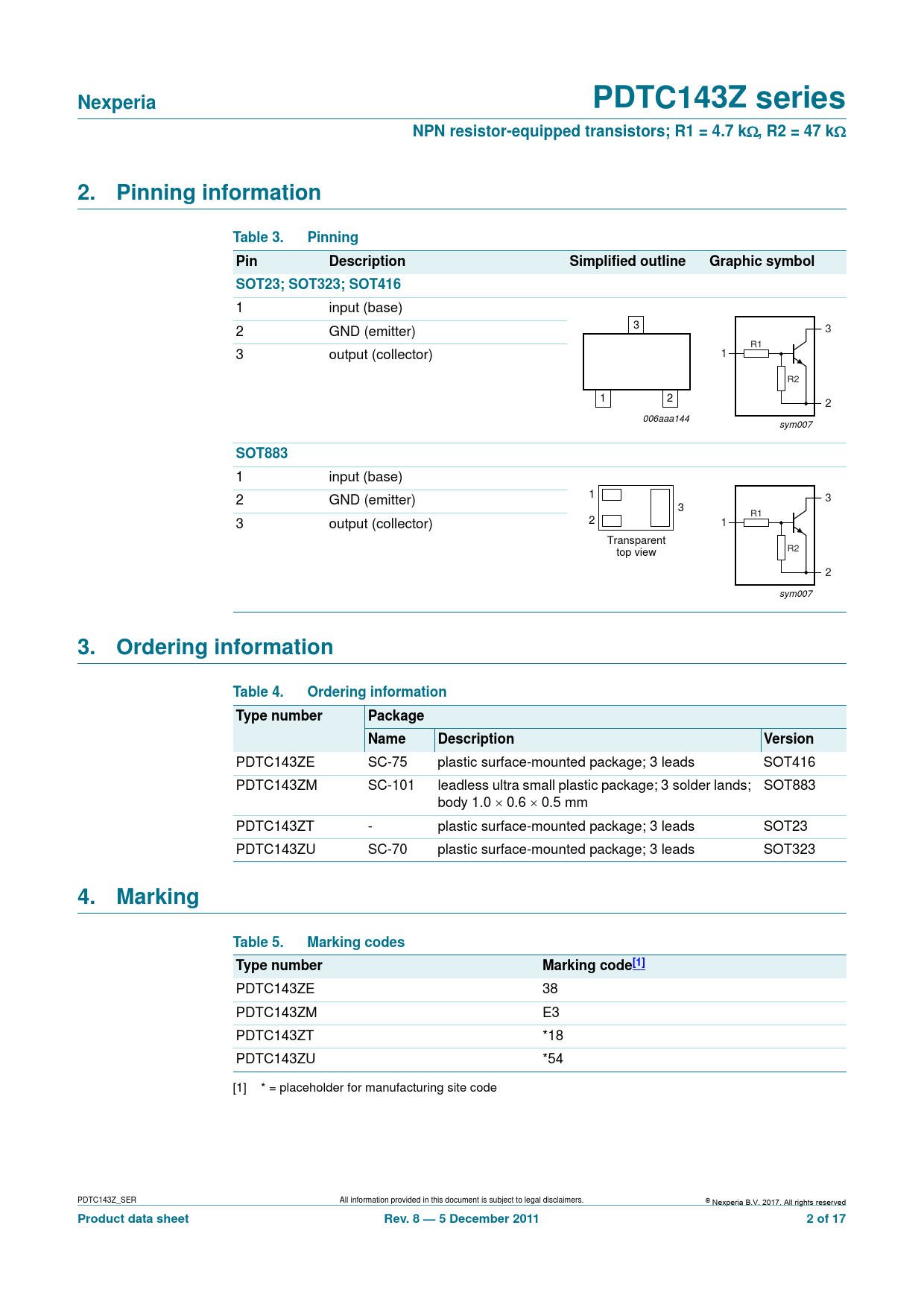

Nexperia PDTC143Z series NPN resistor-equipped transistors; R1 = 4.7 k , R2 = 47 k 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol SOT23; SOT323; SOT416
1 input (base) 3 2 GND (emitter) 3 R1 3 output (collector) 1 R2 1 2 2 006aaa144 sym007
SOT883
1 input (base) 2 GND (emitter) 1 3 3 R1 3 output (collector) 2 1 Transparent top view R2 2 sym007
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
PDTC143ZE SC-75 plastic surface-mounted package; 3 leads SOT416 PDTC143ZM SC-101 leadless ultra small plastic package; 3 solder lands; SOT883 body 1.0 0.6 0.5 mm PDTC143ZT - plastic surface-mounted package; 3 leads SOT23 PDTC143ZU SC-70 plastic surface-mounted package; 3 leads SOT323
4. Marking Table 5. Marking codes Type number Marking code[1]
PDTC143ZE 38 PDTC143ZM E3 PDTC143ZT *18 PDTC143ZU *54 [1] * = placeholder for manufacturing site code PDTC143Z_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 8 — 5 December 2011 2 of 17
