Datasheet BZX58550 (Nexperia) - 7
| Hersteller | Nexperia |
| Beschreibung | Low-current voltage regulator diodes |
| Seiten / Seite | 11 / 7 — Nexperia. BZX58550 series. Low-current voltage regulator diodes. Fig. 7. … |
| Revision | 24082021 |
| Dateiformat / Größe | PDF / 237 Kb |
| Dokumentensprache | Englisch |
Nexperia. BZX58550 series. Low-current voltage regulator diodes. Fig. 7. Reverse current as a function of reverse
Modelllinie für dieses Datenblatt
- BZX58550-C10X BZX58550-C11X BZX58550-C12X BZX58550-C13X BZX58550-C15X BZX58550-C16X BZX58550-C18X BZX58550-C1V8X BZX58550-C20X BZX58550-C22X BZX58550-C24X BZX58550-C27X BZX58550-C2V0X BZX58550-C2V2X BZX58550-C2V4X BZX58550-C2V7X BZX58550-C30X BZX58550-C33X BZX58550-C36X BZX58550-C39X BZX58550-C3V0X BZX58550-C3V3X BZX58550-C3V6X BZX58550-C3V9X BZX58550-C43X BZX58550-C47X BZX58550-C4V3X BZX58550-C4V7X BZX58550-C51X BZX58550-C56X BZX58550-C5V1X BZX58550-C5V6X BZX58550-C62X BZX58550-C68X BZX58550-C6V2X BZX58550-C6V8X BZX58550-C75X BZX58550-C7V5X BZX58550-C8V2X BZX58550-C9V1X
Textversion des Dokuments
Nexperia BZX58550 series Low-current voltage regulator diodes
aaa-006666 10-1 aaa-006667 10-1 IR IR 30 36 43 51 62 75 (A) (A) 10-2 7V5 10 12 15 18 22 10-2 27 33 39 47 56 68 8V2 10-3 10-3 9V1 11 13 16 20 24 10-4 10-4 10-5 10-5 10-6 10-6 10-7 10-7 10-8 10-8 10-9 0 5 10 15 20 25 20 40 60 80 VR (V) VR (V) Tamb = 25 °C Tamb = 25 °C

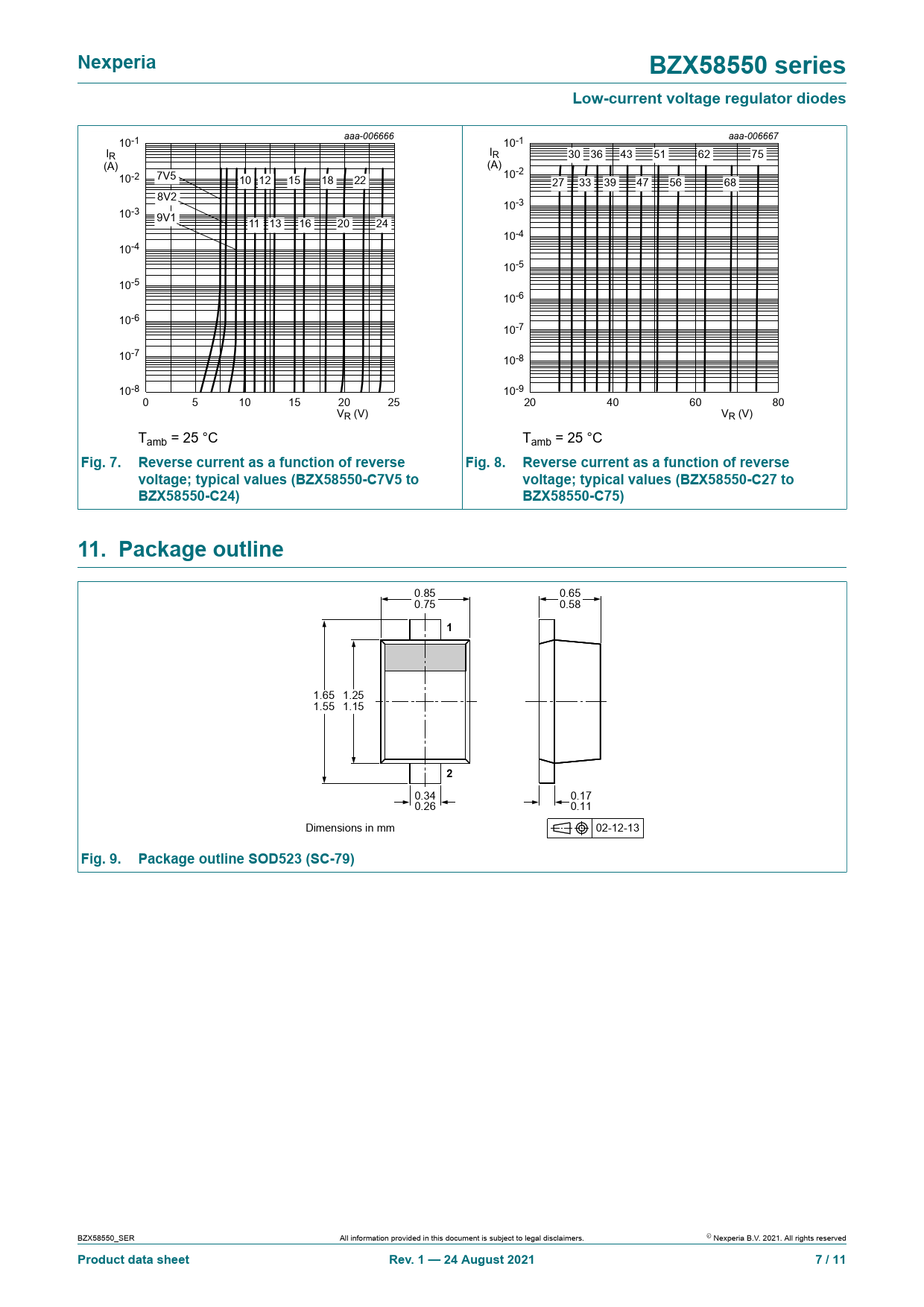

Fig. 7. Reverse current as a function of reverse Fig. 8. Reverse current as a function of reverse voltage; typical values (BZX58550-C7V5 to voltage; typical values (BZX58550-C27 to BZX58550-C24) BZX58550-C75) 11. Package outline
0.85 0.65 0.75 0.58
1
1.65 1.25 1.55 1.15
2
0.34 0.17 0.26 0.11 Dimensions in mm 02-12-13
Fig. 9. Package outline SOD523 (SC-79)
BZX58550_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 7 / 11
