Application Note 826
Vishay Siliconix

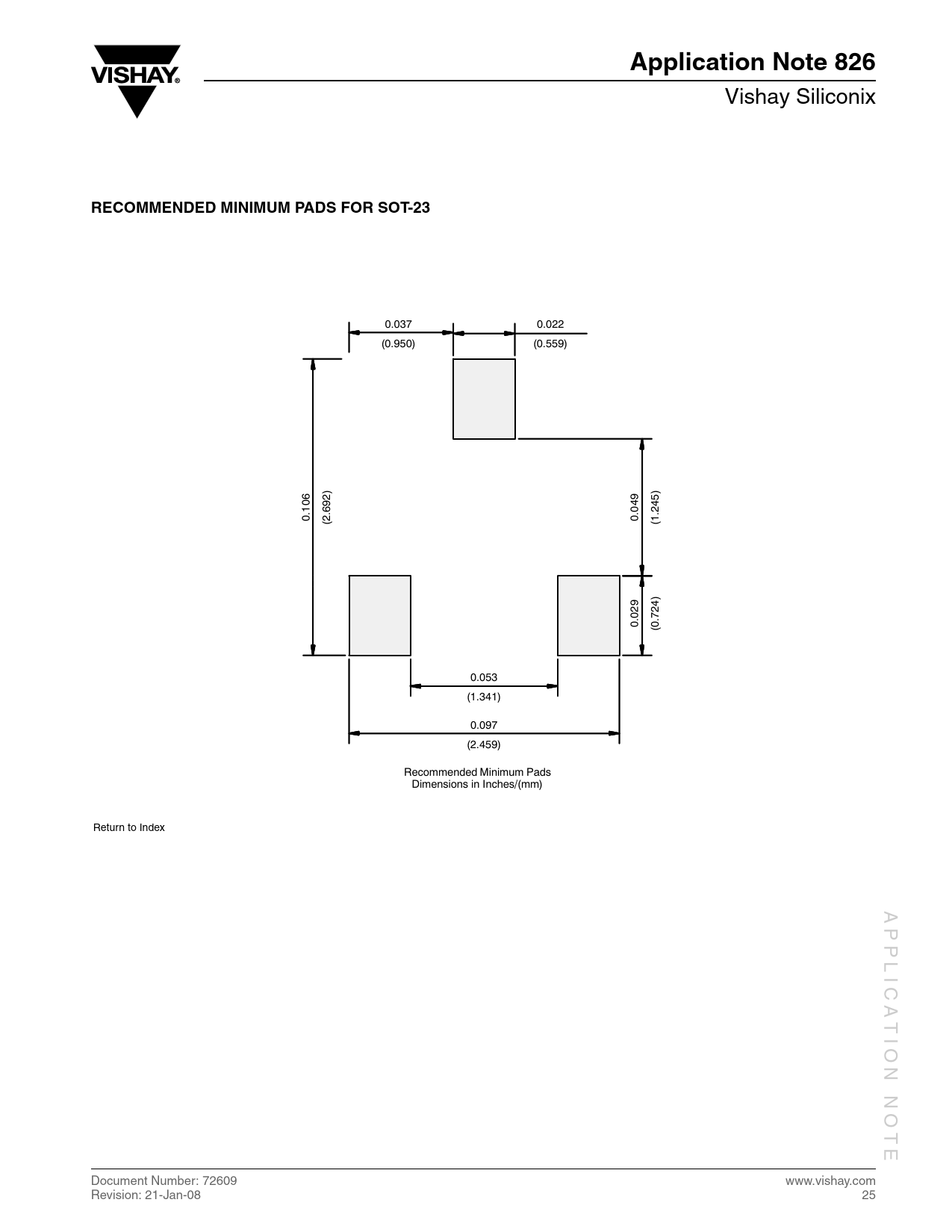

RECOMMENDED MINIMUM PADS FOR SOT-23
0.037 0.022 (0.950) (0.559) 0.106 (2.692) 0.049 (1.245) 0.029 (0.724) 0.053 (1.341) 0.097 (2.459) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72609 www.vishay.com Revision: 21-Jan-08 25
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR SOT-23
0.037 0.022 (0.950) (0.559) 0.106 (2.692) 0.049 (1.245) 0.029 (0.724) 0.053 (1.341) 0.097 (2.459) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72609 www.vishay.com Revision: 21-Jan-08 25
