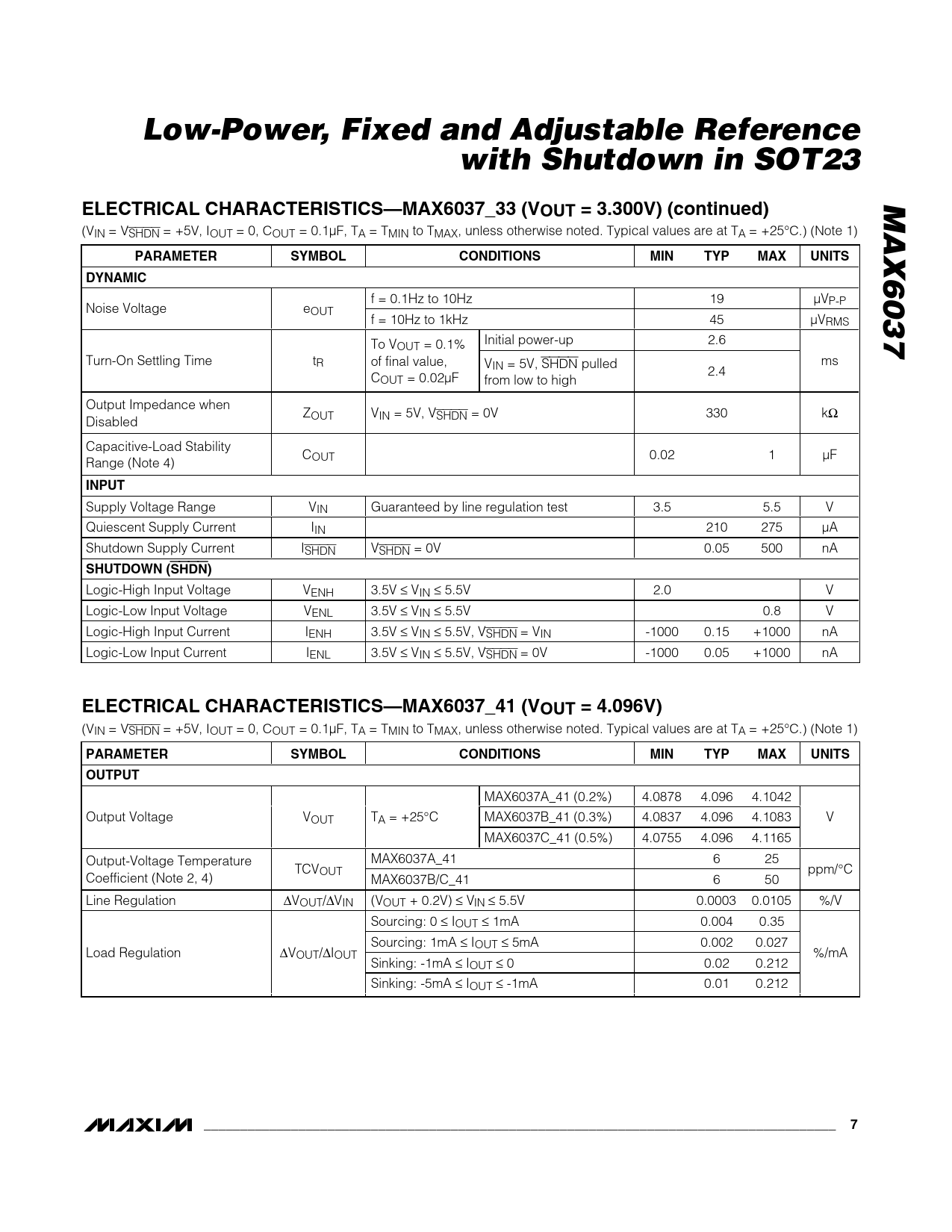

Low-Power, Fixed and Adjustable Reference with Shutdown in SOT23 MAX6037 ELECTRICAL CHARACTERISTICS—MAX6037_33 (VOUT = 3.300V) (continued)
(VIN = VSHDN = +5V, IOUT = 0, COUT = 0.1µF, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DYNAMIC
f = 0.1Hz to 10Hz 19 µVP-P Noise Voltage eOUT f = 10Hz to 1kHz 45 µVRMS Initial power-up 2.6 To VOUT = 0.1% Turn-On Settling Time tR of final value, VIN = 5V, SHDN pulled ms 2.4 COUT = 0.02µF from low to high Output Impedance when ZOUT VIN = 5V, VSHDN = 0V 330 kΩ Disabled Capacitive-Load Stability COUT 0.02 1 µF Range (Note 4)
INPUT
Supply Voltage Range VIN Guaranteed by line regulation test 3.5 5.5 V Quiescent Supply Current IIN 210 275 µA Shutdown Supply Current ISHDN VSHDN = 0V 0.05 500 nA
SHUTDOWN (
SHDN
)
Logic-High Input Voltage VENH 3.5V ≤ VIN ≤ 5.5V 2.0 V Logic-Low Input Voltage VENL 3.5V ≤ VIN ≤ 5.5V 0.8 V Logic-High Input Current IENH 3.5V ≤ VIN ≤ 5.5V, VSHDN = VIN -1000 0.15 +1000 nA Logic-Low Input Current IENL 3.5V ≤ VIN ≤ 5.5V, VSHDN = 0V -1000 0.05 +1000 nA
ELECTRICAL CHARACTERISTICS—MAX6037_41 (VOUT = 4.096V)
(VIN = VSHDN = +5V, IOUT = 0, COUT = 0.1µF, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6037A_41 (0.2%) 4.0878 4.096 4.1042 Output Voltage VOUT TA = +25°C MAX6037B_41 (0.3%) 4.0837 4.096 4.1083 V MAX6037C_41 (0.5%) 4.0755 4.096 4.1165 Output-Voltage Temperature MAX6037A_41 6 25 TCVOUT ppm/°C Coefficient (Note 2, 4) MAX6037B/C_41 6 50 Line Regulation ∆VOUT/∆VIN (VOUT + 0.2V) ≤ VIN ≤ 5.5V 0.0003 0.0105 %/V Sourcing: 0 ≤ IOUT ≤ 1mA 0.004 0.35 Sourcing: 1mA ≤ IOUT ≤ 5mA 0.002 0.027 Load Regulation ∆VOUT/∆IOUT %/mA Sinking: -1mA ≤ IOUT ≤ 0 0.02 0.212 Sinking: -5mA ≤ IOUT ≤ -1mA 0.01 0.212
_______________________________________________________________________________________ 7
