Datasheet CBRHDSH1-40L (Central Semiconductor) - 2
| Hersteller | Central Semiconductor |
| Beschreibung | SURFACE MOUNT HIGH DENSITY 1 AMP LOW VF SILICON SCHOTTKY BRIDGE RECTIFIER |
| Seiten / Seite | 3 / 2 — CBRHDSH1-40L. SURFACE MOUNT. HIGH DENSITY. 1 AMP LOW VF SILICON. SCHOTTKY … |
| Dateiformat / Größe | PDF / 577 Kb |
| Dokumentensprache | Englisch |

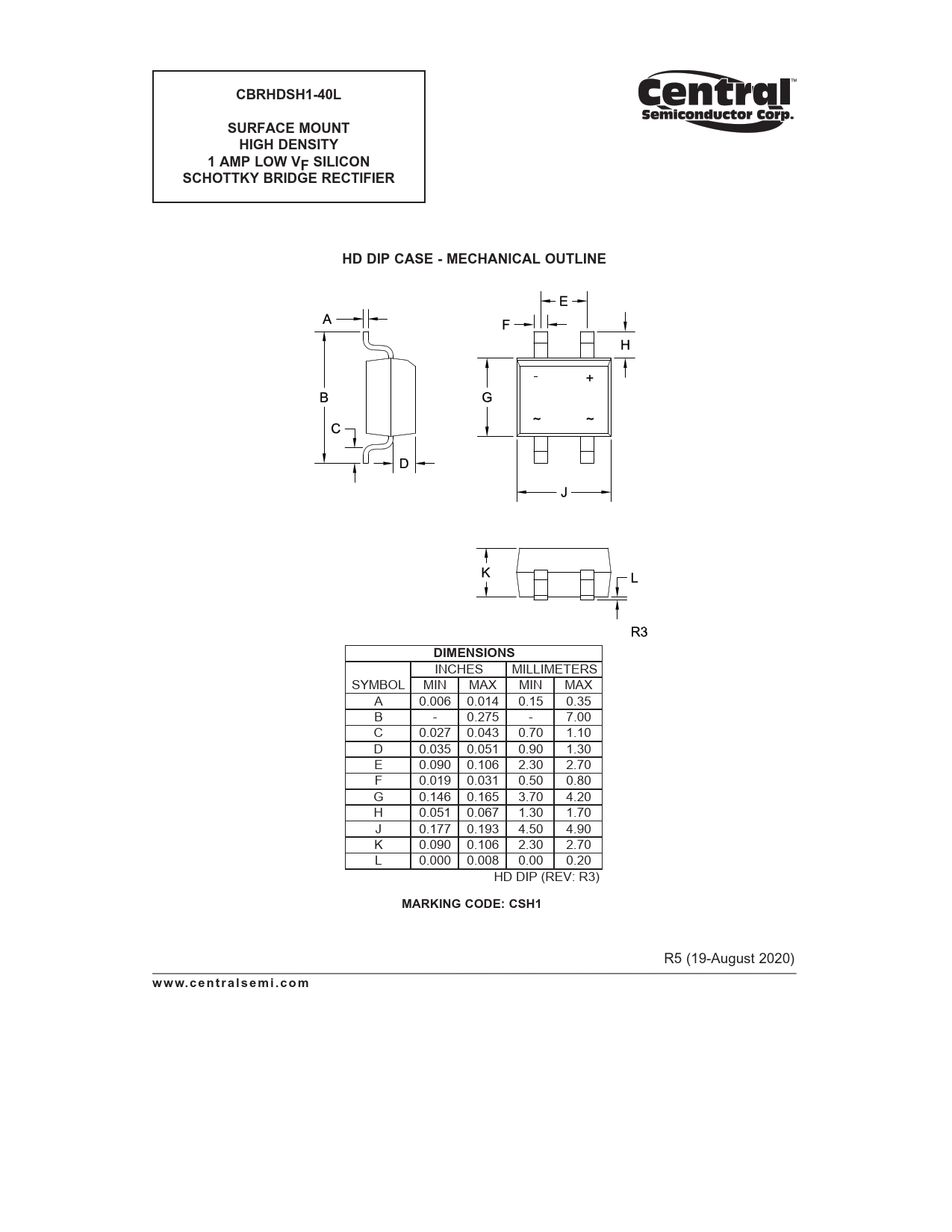

CBRHDSH1-40L. SURFACE MOUNT. HIGH DENSITY. 1 AMP LOW VF SILICON. SCHOTTKY BRIDGE RECTIFIER. HD DIP CASE - MECHANICAL OUTLINE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
CBRHDSH1-40L SURFACE MOUNT HIGH DENSITY 1 AMP LOW VF SILICON SCHOTTKY BRIDGE RECTIFIER HD DIP CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00 C 0.027 0.043 0.70 1.10 D 0.035 0.051 0.90 1.30 E 0.090 0.106 2.30 2.70 F 0.019 0.031 0.50 0.80 G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3)
MARKING CODE: CSH1
R5 (19-August 2020)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00 C 0.027 0.043 0.70 1.10 D 0.035 0.051 0.90 1.30 E 0.090 0.106 2.30 2.70 F 0.019 0.031 0.50 0.80 G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3)
MARKING CODE: CSH1
