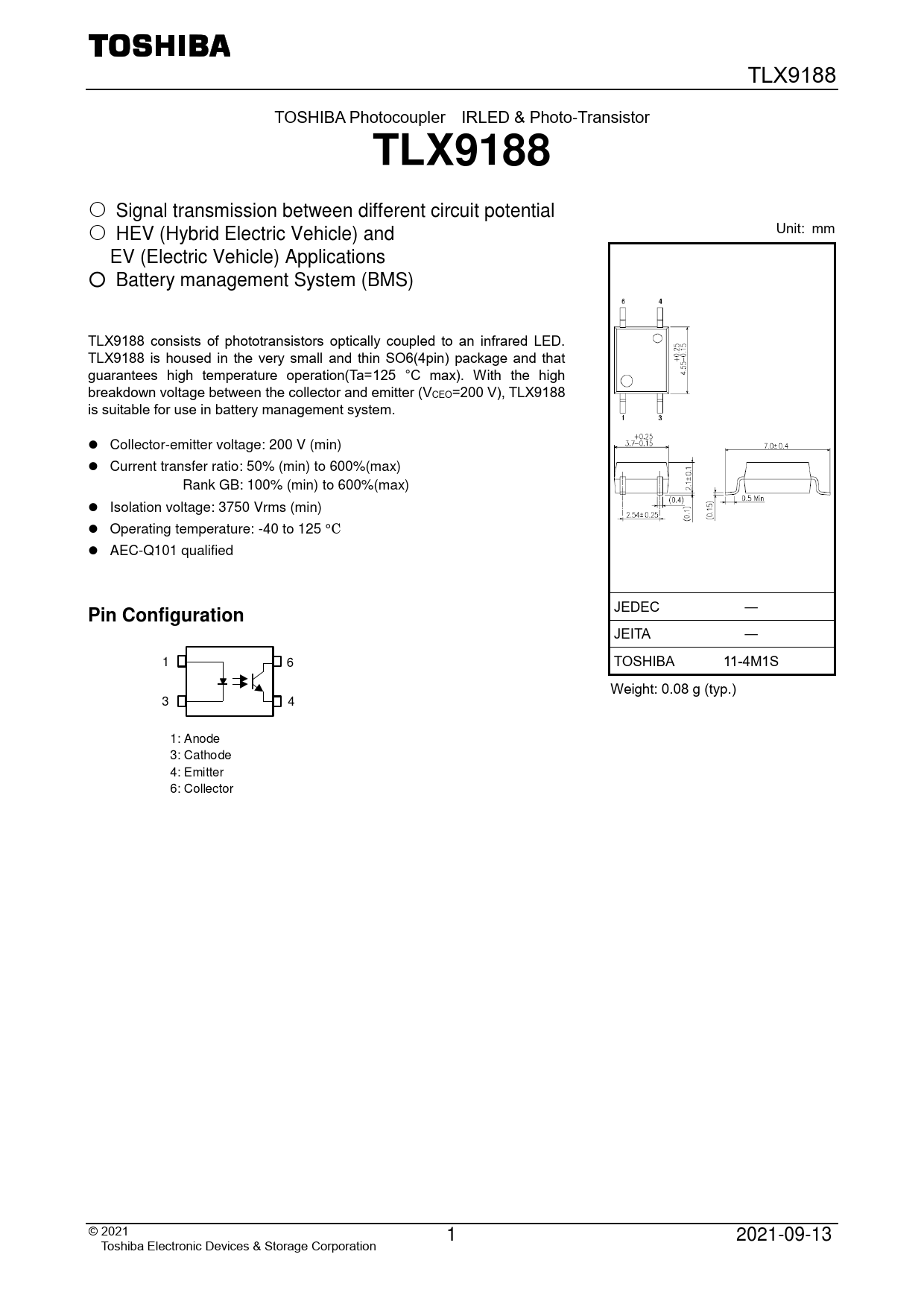

TLX9188 TOSHIBA Photocoupler IRLED & Photo-Transistor
TLX9188
〇 Signal transmission between different circuit potential 〇 HEV (Hybrid Electric Vehicle) and Unit: mm EV (Electric Vehicle) Applications ○ Battery management System (BMS) TLX9188 consists of phototransistors optically coupled to an infrared LED. TLX9188 is housed in the very smal and thin SO6(4pin) package and that guarantees high temperature operation(Ta=125 °C max). With the high breakdown voltage between the col ector and emitter (VCEO=200 V), TLX9188 is suitable for use in battery management system. Collector-emitter voltage: 200 V (min) Current transfer ratio: 50% (min) to 600%(max) Rank GB: 100% (min) to 600%(max) Isolation voltage: 3750 Vrms (min) Operating temperature: -40 to 125 °C AEC-Q101 qualified JEDEC
Pin Configuration
― JEITA ― 1 6 TOSHIBA 11-4M1S Weight: 0.08 g (typ.) 3 4 4 4 1: Anode 3: Cathode 4: Emitter 6: Collector © 2 021 1 2021-09-13 Toshiba Electronic Devices & Storage Corporation
