Datasheet MPSA42, MMBTA42, PZTA42 (Fairchild) - 9

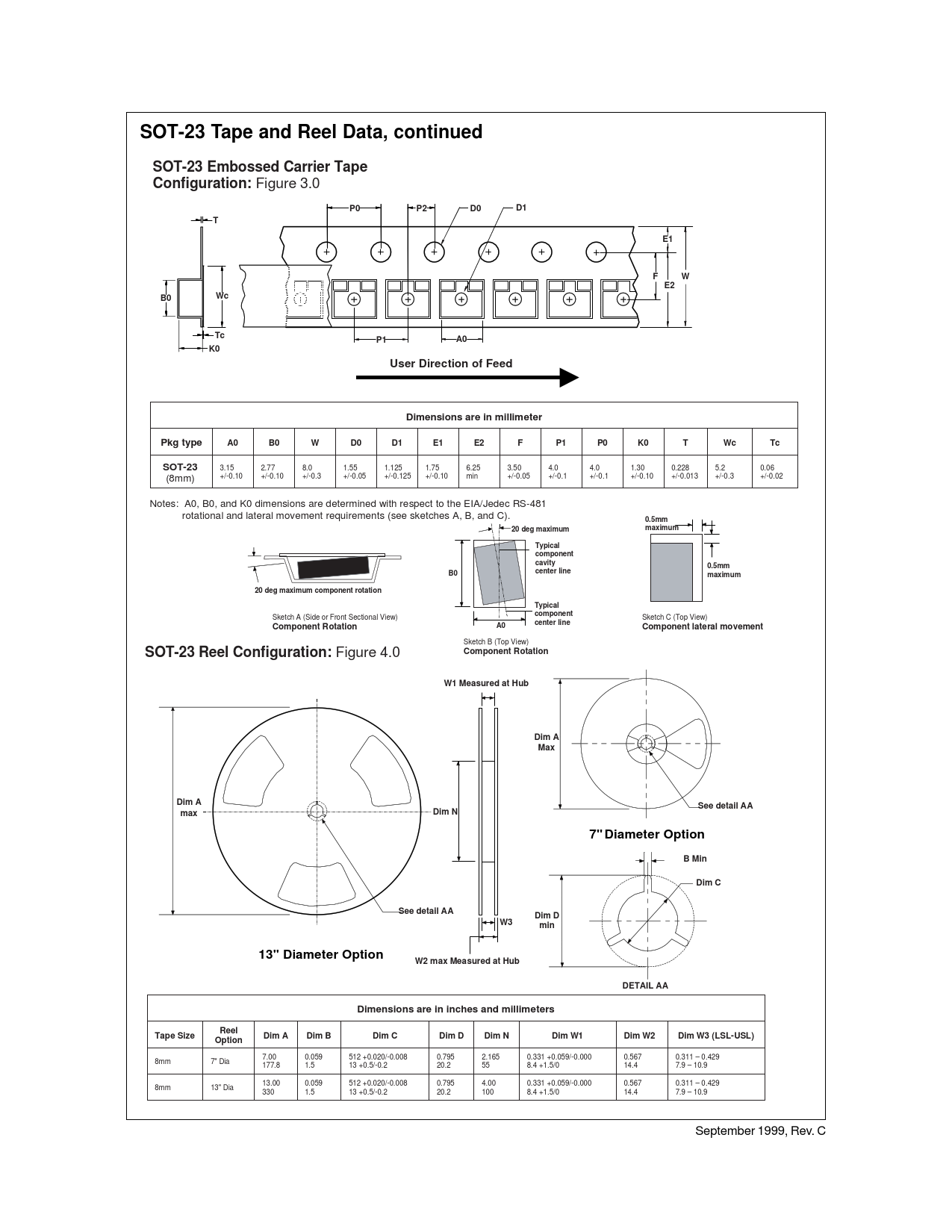

SOT-23 Tape and Reel Data, continued SOT-23 Embossed Carrier Tape Configuration:
Figure 3.0
P0 P2 D0 D1 T E1 F W E2 Wc B0 Tc P1 A0 K0 User Direction of Feed Dimensions are in millimeter Pkg type A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc SOT-23
3.15 2.77 8.0 1.55 1.125 1.75 6.25 3.50 4.0 4.0 1.30 0.228 5.2 0.06 (8mm) +/-0.10 +/-0.10 +/-0.3 +/-0.05 +/-0.125 +/-0.10 min +/-0.05 +/-0.1 +/-0.1 +/-0.10 +/-0.013 +/-0.3 +/-0.02 Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481 rotational and lateral movement requirements (see sketches A, B, and C).
0.5mm 20 deg maximum maximum Typical component cavity 0.5mm center line B0 maximum 20 deg maximum component rotation Typical component
Sketch A (Side or Front Sectional View) Sketch C (Top View)
center line A0 Component Rotation Component lateral movement
Sketch B (Top View)
Component Rotation SOT-23 Reel Configuration:
Figure 4.0
W1 Measured at Hub Dim A Max Dim A See detail AA max Dim N 7" Diameter Option B Min Dim C See detail AA Dim D W3 min 13" Diameter Option W2 max Measured at Hub DETAIL AA Dimensions are in inches and millimeters Reel Tape Size Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL) Option
7.00 0.059 512 +0.020/-0.008 0.795 2.165 0.331 +0.059/-0.000 0.567 0.311 – 0.429 8mm 7" Dia 177.8 1.5 13 +0.5/-0.2 20.2 55 8.4 +1.5/0 14.4 7.9 – 10.9 13.00 0.059 512 +0.020/-0.008 0.795 4.00 0.331 +0.059/-0.000 0.567 0.311 – 0.429 8mm 13" Dia 330 1.5 13 +0.5/-0.2 20.2 100 8.4 +1.5/0 14.4 7.9 – 10.9 September 1999, Rev. C
