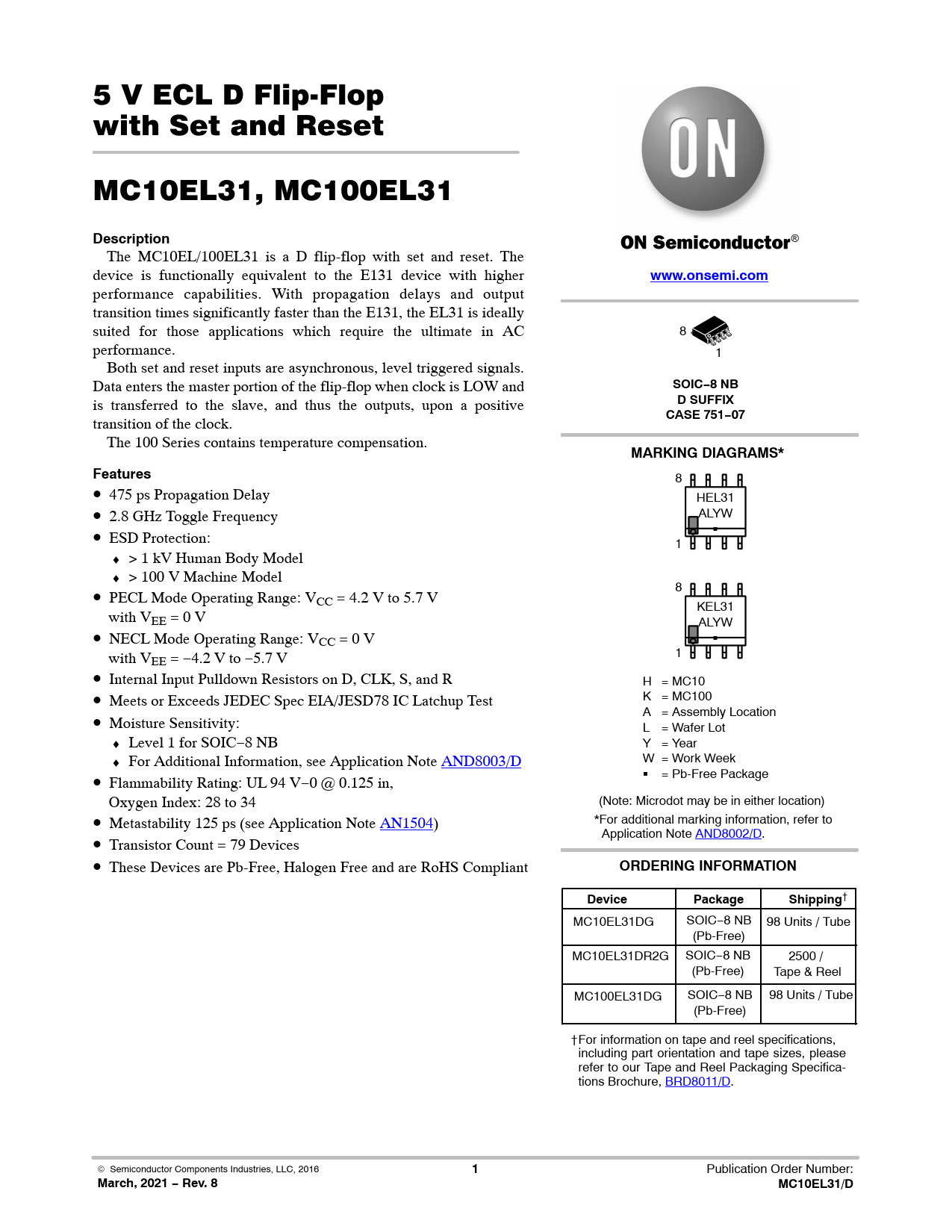

5 V ECL D Flip‐Flop with Set and Reset MC10EL31, MC100EL31
Description
The MC10EL/100EL31 is a D flip-flop with set and reset. The device is functionally equivalent to the E131 device with higher
www.onsemi.com
performance capabilities. With propagation delays and output transition times significantly faster than the E131, the EL31 is ideally suited for those applications which require the ultimate in AC 8 performance. 1 Both set and reset inputs are asynchronous, level triggered signals. Data enters the master portion of the flip-flop when clock is LOW and
SOIC−8 NB
is transferred to the slave, and thus the outputs, upon a positive
D SUFFIX
transition of the clock.
CASE 751−07
The 100 Series contains temperature compensation.
MARKING DIAGRAMS* Features
8 • 475 ps Propagation Delay HEL31 • 2.8 GHz Toggle Frequency ALYW • ESD Protection: G 1 ♦ > 1 kV Human Body Model ♦ > 100 V Machine Model • 8 PECL Mode Operating Range: VCC = 4.2 V to 5.7 V KEL31 with VEE = 0 V ALYW • NECL Mode Operating Range: VCC = 0 V G with V 1 EE = −4.2 V to −5.7 V • Internal Input Pulldown Resistors on D, CLK, S, and R H = MC10 • Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test K = MC100 • A = Assembly Location Moisture Sensitivity: L = Wafer Lot ♦ Level 1 for SOIC−8 NB Y = Year ♦ For Additional Information, see Application Note AND8003/D W = Work Week • Flammability Rating: UL 94 V−0 @ 0.125 in, G = Pb-Free Package Oxygen Index: 28 to 34 (Note: Microdot may be in either location) • Metastability 125 ps (see Application Note AN1504) *For additional marking information, refer to • Application Note AND8002/D. Transistor Count = 79 Devices • These Devices are Pb-Free, Halogen Free and are RoHS Compliant
ORDERING INFORMATION Device Package Shipping
† MC10EL31DG SOIC−8 NB 98 Units / Tube (Pb-Free) MC10EL31DR2G SOIC−8 NB 2500 / (Pb-Free) Tape & Reel MC100EL31DG SOIC−8 NB 98 Units / Tube (Pb-Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifica- tions Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016
