Datasheet RTD60D (Renesas) - 2
| Hersteller | Renesas |
| Beschreibung | Silicon-Based Thermopile Detector 60 Dual |
| Seiten / Seite | 5 / 2 — RTD60D Datasheet. 1. Specifications. Symbol. Parameter. Min. Typ. Max. … |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
RTD60D Datasheet. 1. Specifications. Symbol. Parameter. Min. Typ. Max. Unit. Comments[1]
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 2 link to page 2 link to page 2 link to page 2 link to page 3 link to page 3 link to page 2

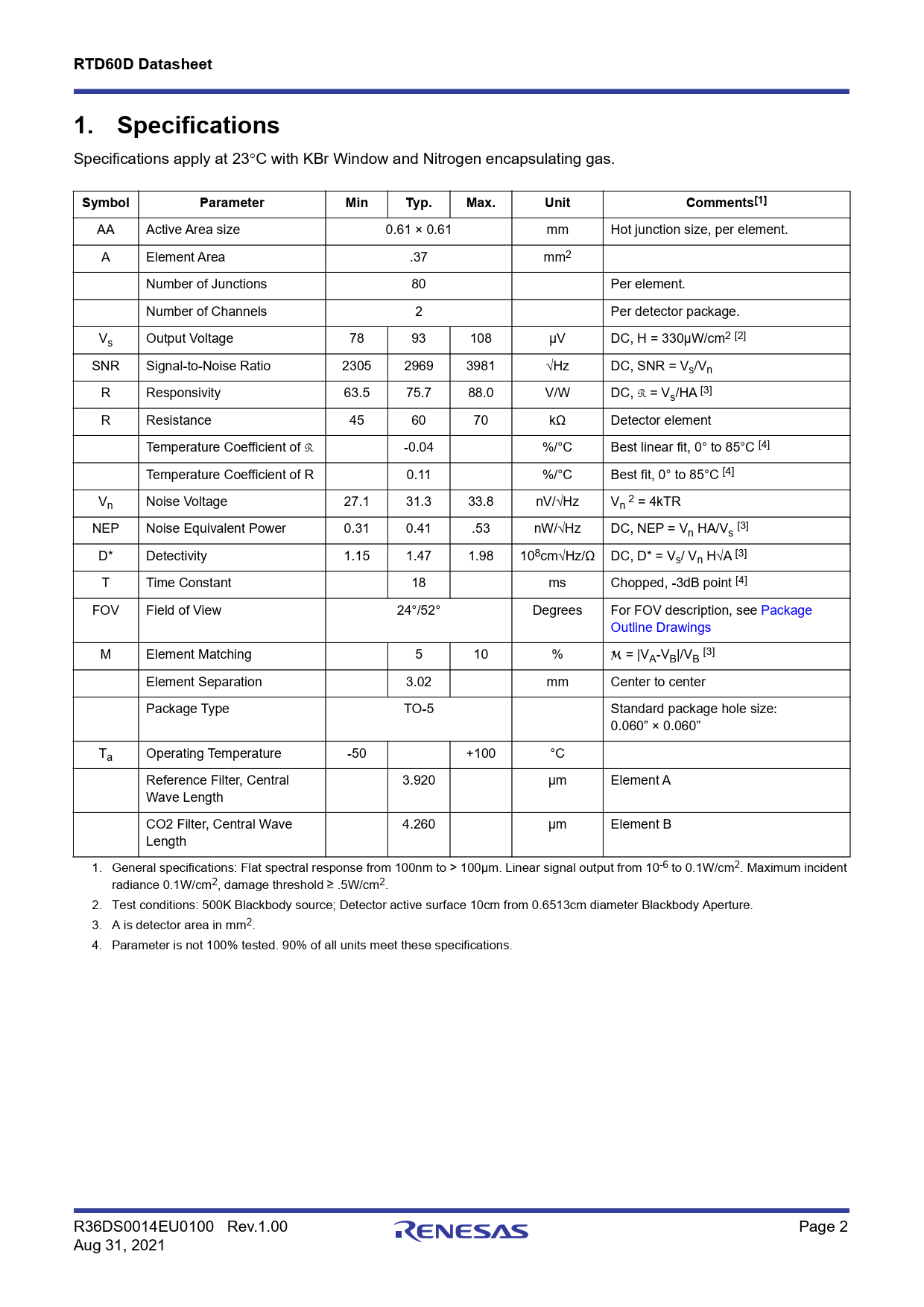

RTD60D Datasheet 1. Specifications
Specifications apply at 23C with KBr Window and Nitrogen encapsulating gas.
Symbol Parameter Min Typ. Max. Unit Comments[1]
AA Active Area size 0.61 × 0.61 mm Hot junction size, per element. A Element Area .37 mm2 Number of Junctions 80 Per element. Number of Channels 2 Per detector package. Vs Output Voltage 78 93 108 µV DC, H = 330µW/cm2 [2] SNR Signal-to-Noise Ratio 2305 2969 3981 √Hz DC, SNR = Vs/Vn R Responsivity 63.5 75.7 88.0 V/W DC, R = Vs/HA [3] R Resistance 45 60 70 kΩ Detector element Temperature Coef icient of R -0.04 %/°C Best linear fit, 0° to 85°C [4] Temperature Coef icient of R 0.11 %/°C Best fit, 0° to 85°C [4] V 2 n Noise Voltage 27.1 31.3 33.8 nV/√Hz Vn = 4kTR NEP Noise Equivalent Power 0.31 0.41 .53 nW/√Hz DC, NEP = Vn HA/Vs [3] D* Detectivity 1.15 1.47 1.98 108cm√Hz/Ω DC, D* = Vs/ Vn H√A [3] T Time Constant 18 ms Chopped, -3dB point [4] FOV Field of View 24°/52° Degrees For FOV description, see Package Outline Drawings M Element Matching 5 10 % M = |VA-VB|/VB [3] Element Separation 3.02 mm Center to center Package Type TO-5 Standard package hole size: 0.060” × 0.060” Ta Operating Temperature -50 +100 °C Reference Filter, Central 3.920 µm Element A Wave Length CO2 Filter, Central Wave 4.260 µm Element B Length 1. General specifications: Flat spectral response from 100nm to > 100µm. Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture. 3. A is detector area in mm2. 4. Parameter is not 100% tested. 90% of al units meet these specifications. R36DS0014EU0100 Rev.1.00 Page 2 Aug 31, 2021 Document Outline Image Diagram Detector Circuit Overlay Applications Features Benefits 1. Specifications 2. Package Outline Drawings 3. Ordering Information 4. Revision History
