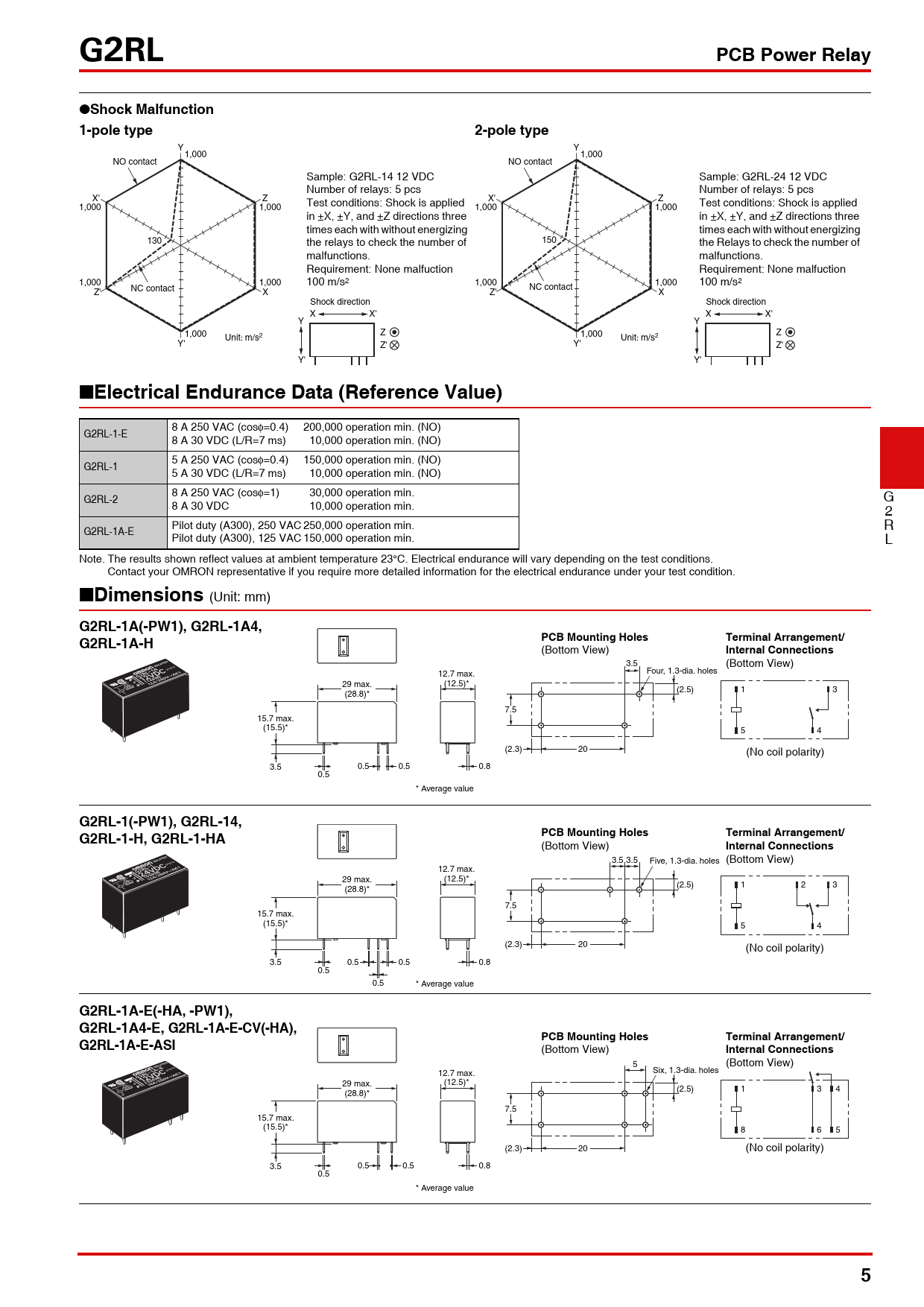

G2RL
PCB Power Relay
●
Shock Malfunction 1-pole type 2-pole type
Y Y 1,000 1,000 NO contact NO contact Sample: G2RL-14 12 VDC Sample: G2RL-24 12 VDC Number of relays: 5 pcs Number of relays: 5 pcs X' Z X' Z Test conditions: Shock is applied Test conditions: Shock is applied 1,000 1,000 1,000 1,000 in ±X, ±Y, and ±Z directions three in ±X, ±Y, and ±Z directions three times each with without energizing times each with without energizing 130 150 the relays to check the number of the Relays to check the number of malfunctions. malfunctions. Requirement: None malfuction Requirement: None malfuction 1,000 1,000 100 m/s2 1,000 1,000 100 m/s2 NC contact Z' NC contact X Z' X Shock direction Shock direction X X' X X' Y Y 1,000 Z 1,000 Z Unit: m/s2 Unit: m/s2 Y' Z' Y' Z' Y' Y' ■
Electrical Endurance Data (Reference Value)
8 A 250 VAC (cos 200,000 operation min. (NO) G2RL-1-E φ=0.4) 8 A 30 VDC (L/R=7 ms) 10,000 operation min. (NO) 5 A 250 VAC (cos 150,000 operation min. (NO) G2RL-1 φ=0.4) 5 A 30 VDC (L/R=7 ms) 10,000 operation min. (NO) 8 A 250 VAC (cos 30,000 operation min. G2RL-2 φ=1) G 8 A 30 VDC 10,000 operation min. 2 Pilot duty (A300), 250 VAC 250,000 operation min. R G2RL-1A-E Pilot duty (A300), 125 VAC 150,000 operation min. L Note. The results shown reflect values at ambient temperature 23°C. Electrical endurance will vary depending on the test conditions. Contact your OMRON representative if you require more detailed information for the electrical endurance under your test condition. ■
Dimensions
(Unit: mm)
G2RL-1A(-PW1), G2RL-1A4, G2RL-1A-H PCB Mounting Holes Terminal Arrangement/
(Bottom View)
Internal Connections
3.5 (Bottom View) 12.7 max. Four, 1.3-dia. holes 29 max. (12.5)* (2.5) 1 3 (28.8)* 7.5 15.7 max. (15.5)* 5 4 (2.3) 20 (No coil polarity) 3.5 0.5 0.5 0.8 0.5 * Average value
G2RL-1(-PW1), G2RL-14, G2RL-1-H, G2RL-1-HA PCB Mounting Holes Terminal Arrangement/
(Bottom View)
Internal Connections
3.5 3.5 Five, 1.3-dia. holes (Bottom View) 12.7 max. 29 max. (12.5)* (2.5) 1 2 3 (28.8)* 7.5 15.7 max. (15.5)* 5 4 (2.3) 20 (No coil polarity) 3.5 0.5 0.5 0.8 0.5 0.5 * Average value
G2RL-1A-E(-HA, -PW1), G2RL-1A4-E, G2RL-1A-E-CV(-HA), PCB Mounting Holes Terminal Arrangement/ G2RL-1A-E-ASI
(Bottom View)
Internal Connections
5 (Bottom View) 12.7 max. Six, 1.3-dia. holes 29 max. (12.5)* (2.5) 1 3 4 (28.8)* 7.5 15.7 max. (15.5)* 8 6 5 (2.3) 20 (No coil polarity) 3.5 0.5 0.5 0.8 0.5 * Average value
