Datasheet G2RL (Omron) - 2

HerstellerOmron
BeschreibungLow profile power relay with 15.7 mm height
Seiten / Seite8 / 2 — PCB Power Relay. Ordering Information. Ratings. Coil. Contacts: Flux …
Dateiformat / GrößePDF / 1.6 Mb
DokumentenspracheEnglisch

PCB Power Relay. Ordering Information. Ratings. Coil. Contacts: Flux Protection Type

PCB Power Relay Ordering Information Ratings Coil Contacts: Flux Protection Type

Modelllinie für dieses Datenblatt

G2RL

Textversion des Dokuments

G2RL

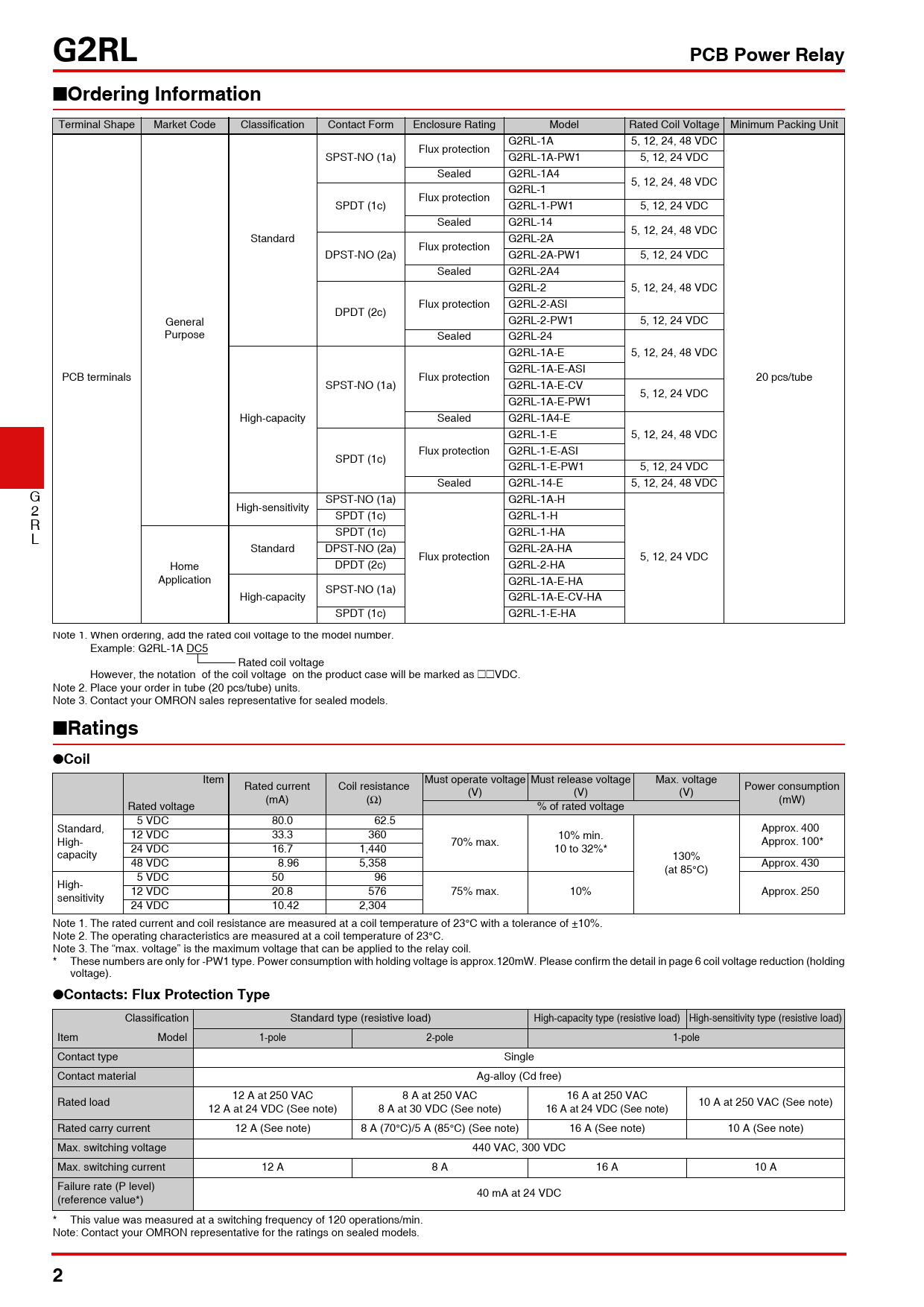

PCB Power Relay

Ordering Information
Terminal Shape Market Code Classification Contact Form Enclosure Rating Model Rated Coil Voltage Minimum Packing Unit G2RL-1A 5, 12, 24, 48 VDC Flux protection SPST-NO (1a) G2RL-1A-PW1 5, 12, 24 VDC Sealed G2RL-1A4 5, 12, 24, 48 VDC G2RL-1 Flux protection SPDT (1c) G2RL-1-PW1 5, 12, 24 VDC Sealed G2RL-14 5, 12, 24, 48 VDC Standard G2RL-2A Flux protection DPST-NO (2a) G2RL-2A-PW1 5, 12, 24 VDC Sealed G2RL-2A4 G2RL-2 5, 12, 24, 48 VDC Flux protection G2RL-2-ASI DPDT (2c) General G2RL-2-PW1 5, 12, 24 VDC Purpose Sealed G2RL-24 G2RL-1A-E 5, 12, 24, 48 VDC G2RL-1A-E-ASI PCB terminals Flux protection 20 pcs/tube SPST-NO (1a) G2RL-1A-E-CV 5, 12, 24 VDC G2RL-1A-E-PW1 High-capacity Sealed G2RL-1A4-E G2RL-1-E 5, 12, 24, 48 VDC Flux protection G2RL-1-E-ASI SPDT (1c) G2RL-1-E-PW1 5, 12, 24 VDC Sealed G2RL-14-E 5, 12, 24, 48 VDC G SPST-NO (1a) G2RL-1A-H 2 High-sensitivity SPDT (1c) G2RL-1-H R L SPDT (1c) G2RL-1-HA Standard DPST-NO (2a) G2RL-2A-HA Flux protection 5, 12, 24 VDC Home DPDT (2c) G2RL-2-HA Application G2RL-1A-E-HA SPST-NO (1a) High-capacity G2RL-1A-E-CV-HA SPDT (1c) G2RL-1-E-HA Note 1. When ordering, add the rated coil voltage to the model number. Example: G2RL-1A DC5 Rated coil voltage However, the notation of the coil voltage on the product case will be marked as @@VDC. Note 2. Place your order in tube (20 pcs/tube) units. Note 3. Contact your OMRON sales representative for sealed models. ■
Ratings

Coil
Item Must operate voltage Must release voltage Max. voltage Rated current Coil resistance (V) (V) (V) Power consumption (mA) (Ω) (mW) Rated voltage % of rated voltage 5 VDC 80.0 62.5 Standard, Approx. 400 12 VDC 33.3 360 10% min. High- 70% max. Approx. 100* 24 VDC 16.7 1,440 10 to 32%* capacity 130% 48 VDC 8.96 5,358 Approx. 430 (at 85°C) 5 VDC 50 96 High- 12 VDC 20.8 576 75% max. 10% Approx. 250 sensitivity 24 VDC 10.42 2,304 Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%. Note 2. The operating characteristics are measured at a coil temperature of 23°C. Note 3. The “max. voltage” is the maximum voltage that can be applied to the relay coil. * These numbers are only for -PW1 type. Power consumption with holding voltage is approx.120mW. Please confirm the detail in page 6 coil voltage reduction (holding voltage). ●
Contacts: Flux Protection Type
Classification Standard type (resistive load) High-capacity type (resistive load) High-sensitivity type (resistive load) Item Model 1-pole 2-pole 1-pole Contact type Single Contact material Ag-alloy (Cd free) 12 A at 250 VAC 8 A at 250 VAC 16 A at 250 VAC Rated load 10 A at 250 VAC (See note) 12 A at 24 VDC (See note) 8 A at 30 VDC (See note) 16 A at 24 VDC (See note) Rated carry current 12 A (See note) 8 A (70°C)/5 A (85°C) (See note) 16 A (See note) 10 A (See note) Max. switching voltage 440 VAC, 300 VDC Max. switching current 12 A 8 A 16 A 10 A Failure rate (P level) 40 mA at 24 VDC (reference value*) * This value was measured at a switching frequency of 120 operations/min. Note: Contact your OMRON representative for the ratings on sealed models.
