Datasheet DEIC420 (IXYS)
| Hersteller | IXYS |
| Beschreibung | 20 Ampere Low-Side Ultrafast RF MOSFET Driver |
| Seiten / Seite | 7 / 1 — DEIC420. 20 Ampere Low-Side Ultrafast RF MOSFET Driver. Features. … |
| Dateiformat / Größe | PDF / 262 Kb |
| Dokumentensprache | Englisch |

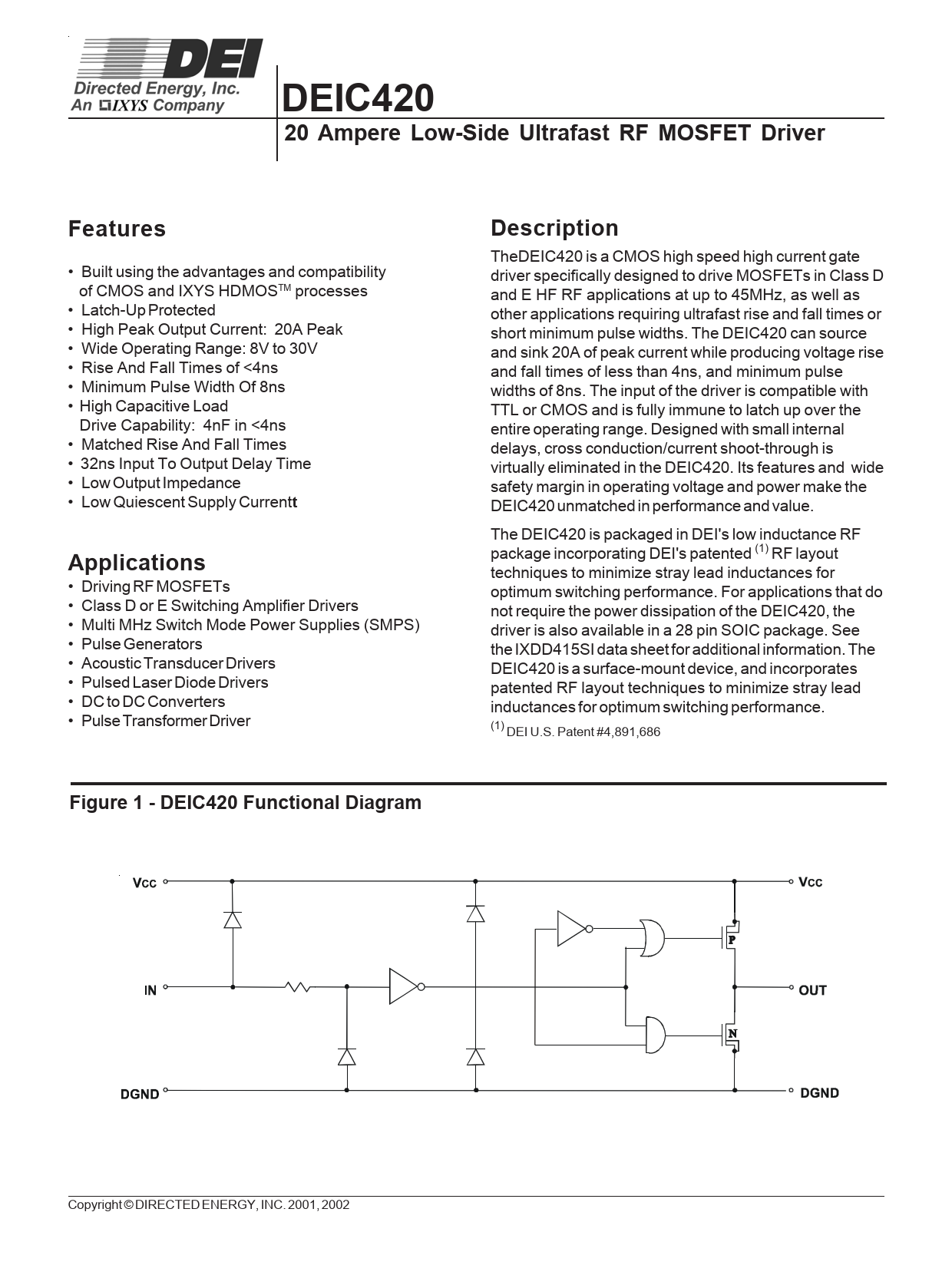

DEIC420. 20 Ampere Low-Side Ultrafast RF MOSFET Driver. Features. Description. Applications
Modelllinie für dieses Datenblatt
Textversion des Dokuments
DEIC420 20 Ampere Low-Side Ultrafast RF MOSFET Driver Features Description
TheDEIC420 is a CMOS high speed high current gate • Built using the advantages and compatibility driver specifically designed to drive MOSFETs in Class D of CMOS and IXYS HDMOSTM processes and E HF RF applications at up to 45MHz, as well as • Latch-Up Protected other applications requiring ultrafast rise and fall times or • High Peak Output Current: 20A Peak short minimum pulse widths. The DEIC420 can source • Wide Operating Range: 8V to 30V and sink 20A of peak current while producing voltage rise • Rise And Fall Times of <4ns and fall times of less than 4ns, and minimum pulse • Minimum Pulse Width Of 8ns widths of 8ns. The input of the driver is compatible with • High Capacitive Load TTL or CMOS and is fully immune to latch up over the Drive Capability: 4nF in <4ns entire operating range. Designed with small internal • Matched Rise And Fall Times delays, cross conduction/current shoot-through is • 32ns Input To Output Delay Time virtually eliminated in the DEIC420. Its features and wide • Low Output Impedance safety margin in operating voltage and power make the • Low Quiescent Supply Current
t
DEIC420 unmatched in performance and value. The DEIC420 is packaged in DEI's low inductance RF
Applications
package incorporating DEI's patented (1) RF layout techniques to minimize stray lead inductances for • Driving RF MOSFETs optimum switching performance. For applications that do • Class D or E Switching Amplifier Drivers not require the power dissipation of the DEIC420, the • Multi MHz Switch Mode Power Supplies (SMPS) driver is also available in a 28 pin SOIC package. See • Pulse Generators the IXDD415SI data sheet for additional information. The • Acoustic Transducer Drivers DEIC420 is a surface-mount device, and incorporates • Pulsed Laser Diode Drivers patented RF layout techniques to minimize stray lead • DC to DC Converters inductances for optimum switching performance. • Pulse Transformer Driver (1) DEI U.S. Patent #4,891,686
Figure 1 - DEIC420 Functional Diagram
Copyright © DIRECTED ENERGY, INC. 2001, 2002
First Release
