Datasheet ALED6000 (STMicroelectronics) - 2
| Hersteller | STMicroelectronics |
| Beschreibung | Automotive 3 A 61 V monolithic current source with dimming capability |
| Seiten / Seite | 45 / 2 — ALED6000. Application schematic. Figure 1. Application schematic. … |
| Dateiformat / Größe | PDF / 3.4 Mb |
| Dokumentensprache | Englisch |

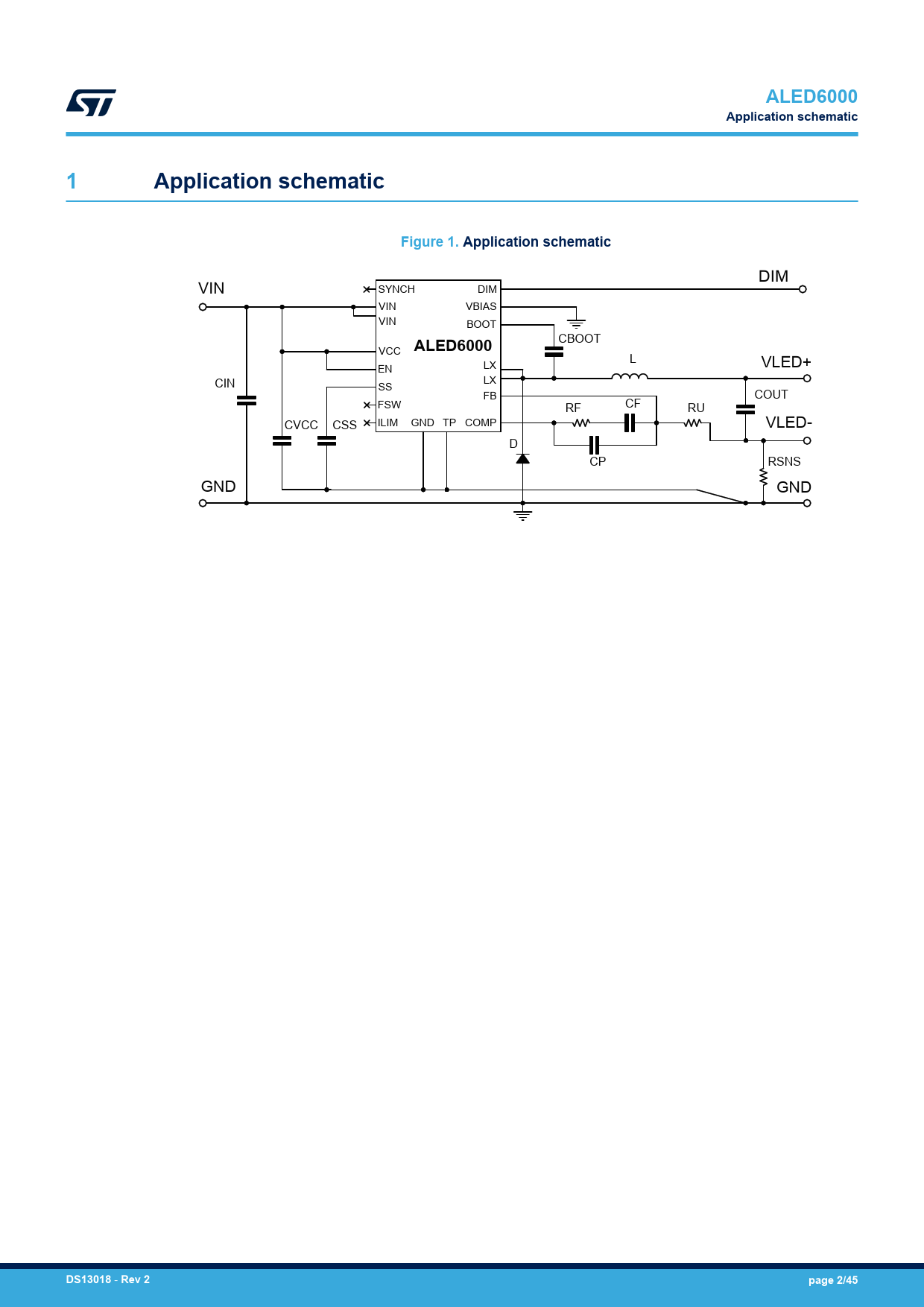

ALED6000. Application schematic. Figure 1. Application schematic. DS13018. Rev 2. page 2/45
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ALED6000 Application schematic 1 Application schematic Figure 1. Application schematic
DIM VIN SYNCH DIM VIN VBIAS VIN BOOT
ALED6000
CBOOT VCC L VLED+ EN LX LX CIN SS FB COUT FSW RF CF RU CVCC CSS ILIM GND TP COMP VLED- D CP RSNS GND GND
DS13018
-
Rev 2 page 2/45
