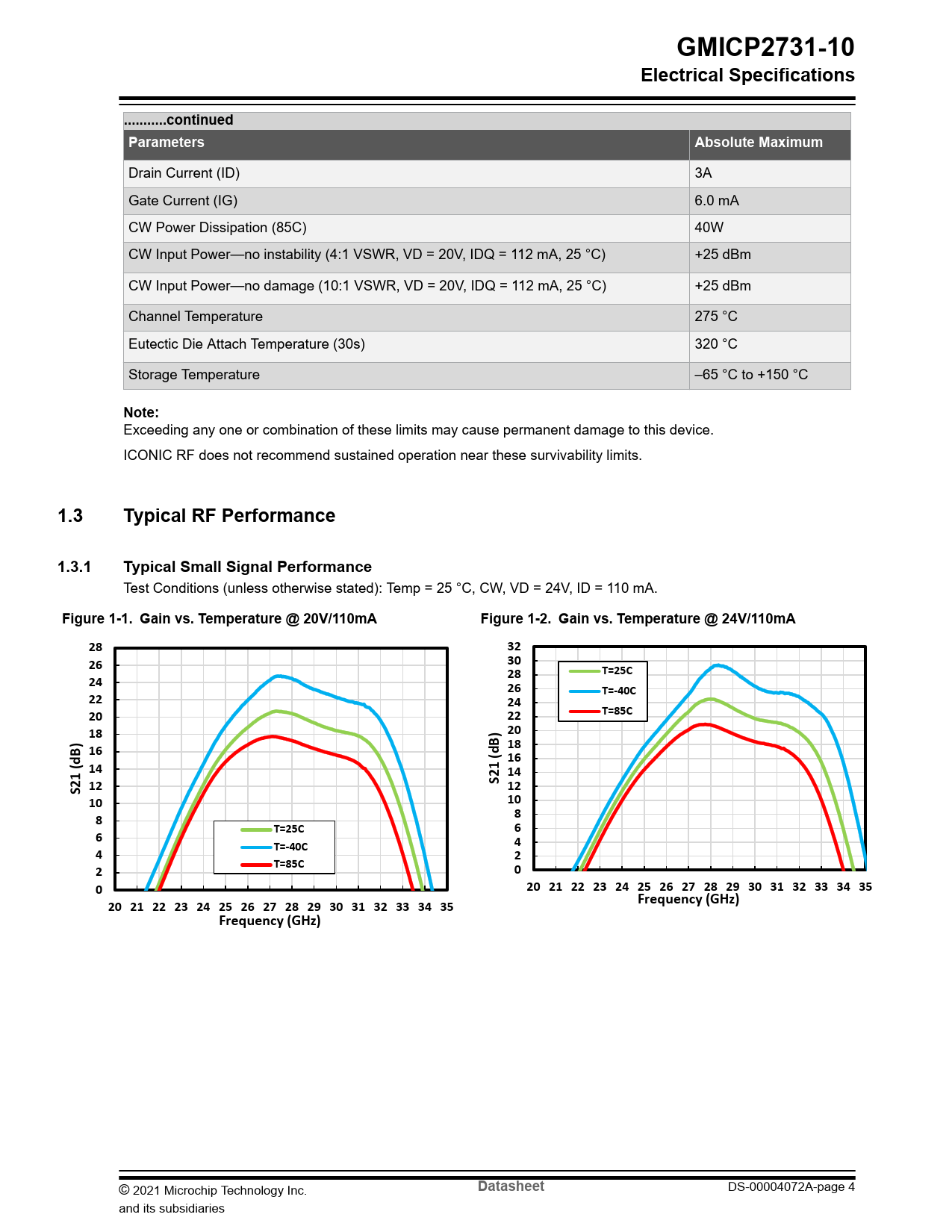

GMICP2731-10 Electrical Specifications ...continued Parameters Absolute Maximum
Drain Current (ID) 3A Gate Current (IG) 6.0 mA CW Power Dissipation (85C) 40W CW Input Power—no instability (4:1 VSWR, VD = 20V, IDQ = 112 mA, 25 °C) +25 dBm CW Input Power—no damage (10:1 VSWR, VD = 20V, IDQ = 112 mA, 25 °C) +25 dBm Channel Temperature 275 °C Eutectic Die Attach Temperature (30s) 320 °C Storage Temperature –65 °C to +150 °C
Note: 
Exceeding any one or combination of these limits may cause permanent damage to this device. ICONIC RF does not recommend sustained operation near these survivability limits.
1.3 Typical RF Performance 1.3.1 Typical Small Signal Performance
Test Conditions (unless otherwise stated): Temp = 25 °C, CW, VD = 24V, ID = 110 mA.
Figure 1-1. Gain vs. Temperature @ 20V/110mA Figure 1-2. Gain vs. Temperature @ 24V/110mA 28 32 26 30 T=25C 24 28 26 T=-40C 22 24 20 22 T=85C 18 20 B) B) 16 18 (d (d 16 14 1 14 12 S2 S21 12 10 10 8 8 T=25C 6 6 4 4 T=-40C 2 2 T=85C 0 0 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 Frequency (GHz) Frequency (GHz)
© 2021 Microchip Technology Inc.
