BeschreibungHigh-Current, High-Performance Smart Power Stage
Seiten / Seite6 / 4 — AOZ5273QI. Package Dimensions, QFN5x6-39L. www.aosmd.com
Dateiformat / GrößePDF / 1.4 Mb
DokumentenspracheEnglisch

AOZ5273QI. Package Dimensions, QFN5x6-39L. www.aosmd.com

AOZ5273QI Package Dimensions, QFN5x6-39L www.aosmd.com

Modelllinie für dieses Datenblatt

Textversion des Dokuments

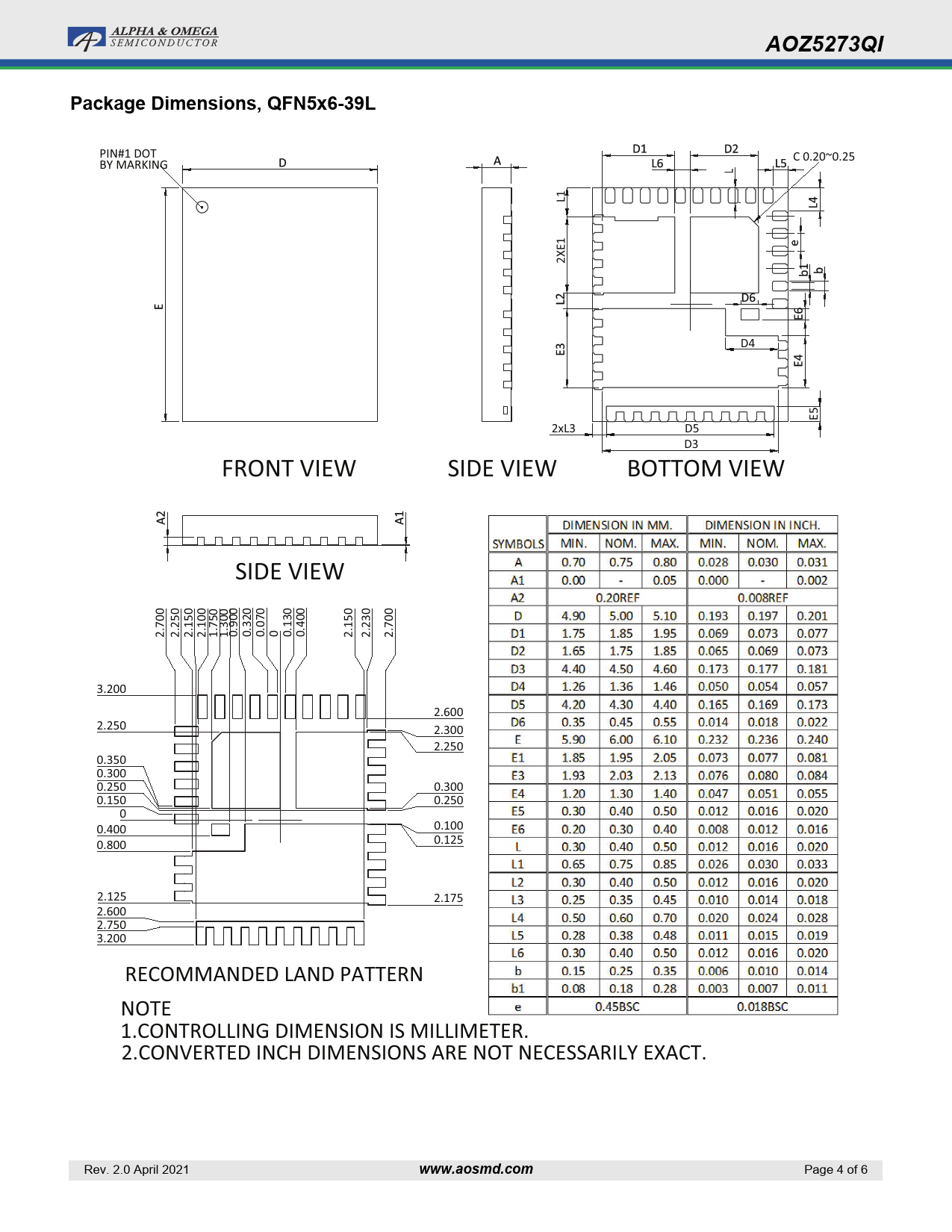

AOZ5273QI Package Dimensions, QFN5x6-39L
PIN#1 DOT C 0.20~0.25 BY MARKING L1 2XE1 D4 E5 2xL3 D5 D3 FRONT VIEW SIDE VIEW BOTTOM VIEW SIDE VIEW 2.700 2.250 2.150 2.100 1.750 1.300 0.900 0.320 0.070 0 0.130 0.400 2.150 2.230 2.700 3.200 2.600 2.250 2.300 2.250 0.350 0.300 0.250 0.300 0.150 0.250 0 0.400 0.100 0.800 0.125 2.125 2.175 2.600 2.750 3.200 RECOMMANDED LAND PATTERN NOTE 1.CONTROLLING DIMENSION IS MILLIMETER. 2.CONVERTED INCH DIMENSIONS ARE NOT NECESSARILY EXACT. Rev. 2.0 April 2021
