Nexperia. 74AHCU04. Hex unbuffered inverter. 10. Dynamic characteristics Table 7. Dynamic characteristics. Symbol Parameter
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5

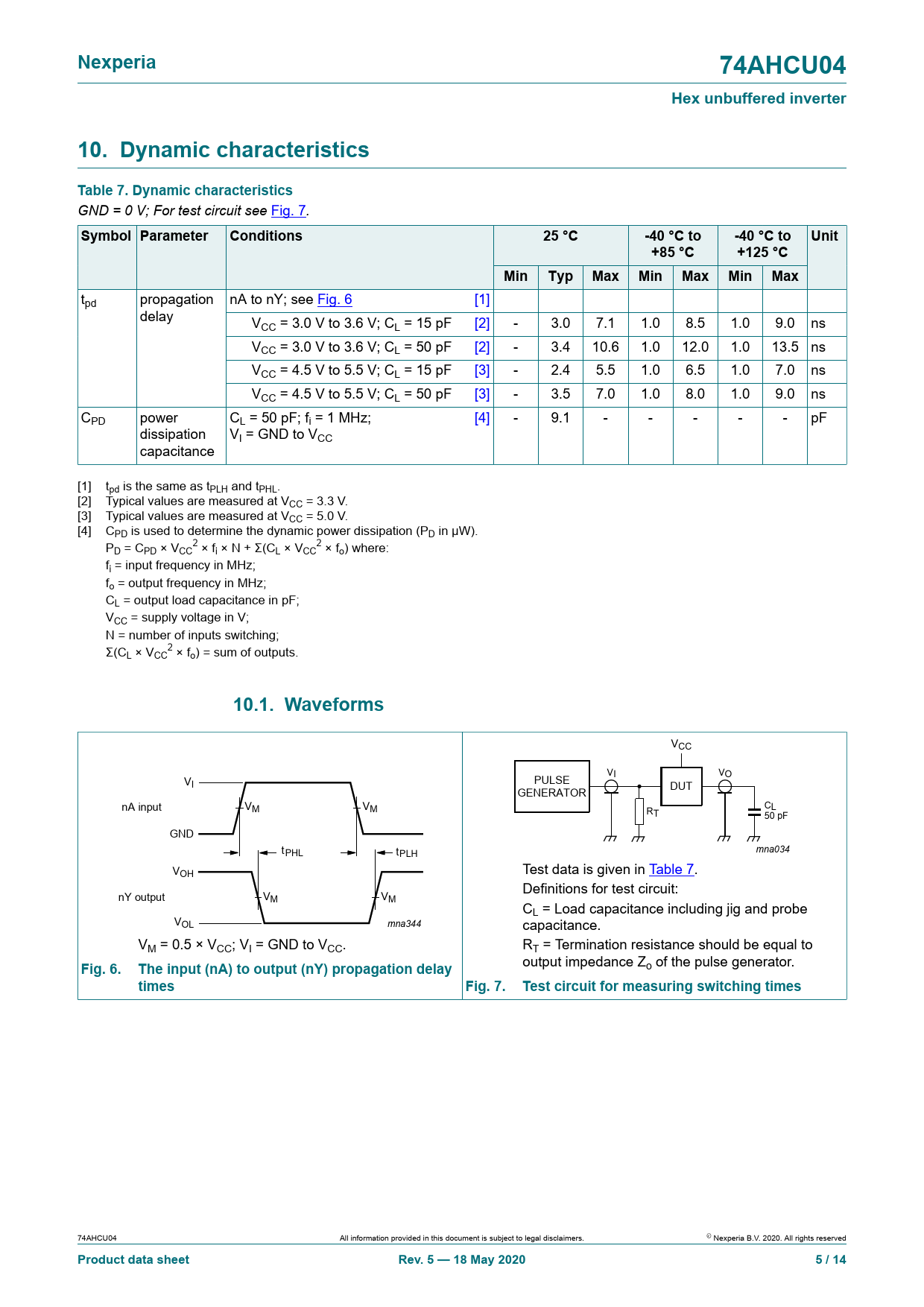

Nexperia 74AHCU04 Hex unbuffered inverter 10. Dynamic characteristics Table 7. Dynamic characteristics
GND = 0 V; For test circuit see Fig. 7.
Symbol Parameter Conditions 25 °C -40 °C to -40 °C to Unit +85 °C +125 °C Min Typ Max Min Max Min Max
tpd propagation nA to nY; see Fig. 6 [1] delay VCC = 3.0 V to 3.6 V; CL = 15 pF [2] - 3.0 7.1 1.0 8.5 1.0 9.0 ns VCC = 3.0 V to 3.6 V; CL = 50 pF [2] - 3.4 10.6 1.0 12.0 1.0 13.5 ns VCC = 4.5 V to 5.5 V; CL = 15 pF [3] - 2.4 5.5 1.0 6.5 1.0 7.0 ns VCC = 4.5 V to 5.5 V; CL = 50 pF [3] - 3.5 7.0 1.0 8.0 1.0 9.0 ns CPD power CL = 50 pF; fi = 1 MHz; [4] - 9.1 - - - - - pF dissipation VI = GND to VCC capacitance [1] tpd is the same as tPLH and tPHL. [2] Typical values are measured at VCC = 3.3 V. [3] Typical values are measured at VCC = 5.0 V. [4] CPD is used to determine the dynamic power dissipation (PD in μW). P 2 2 D = CPD × VCC × fi × N + Σ(CL × VCC × fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; Σ(C 2 L × VCC × fo) = sum of outputs.
10.1. Waveforms
VCC V V I VO I PULSE DUT GENERATOR nA input VM VM CL RT 50 pF GND tPHL tPLH mna034 VOH Test data is given in Table 7. Definitions for test circuit: nY output VM VM CL = Load capacitance including jig and probe VOL mna344 capacitance. VM = 0.5 × VCC; VI = GND to VCC. RT = Termination resistance should be equal to
Fig. 6. The input (nA) to output (nY) propagation delay
output impedance Zo of the pulse generator.
times Fig. 7. Test circuit for measuring switching times
74AHCU04 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 18 May 2020 5 / 14
