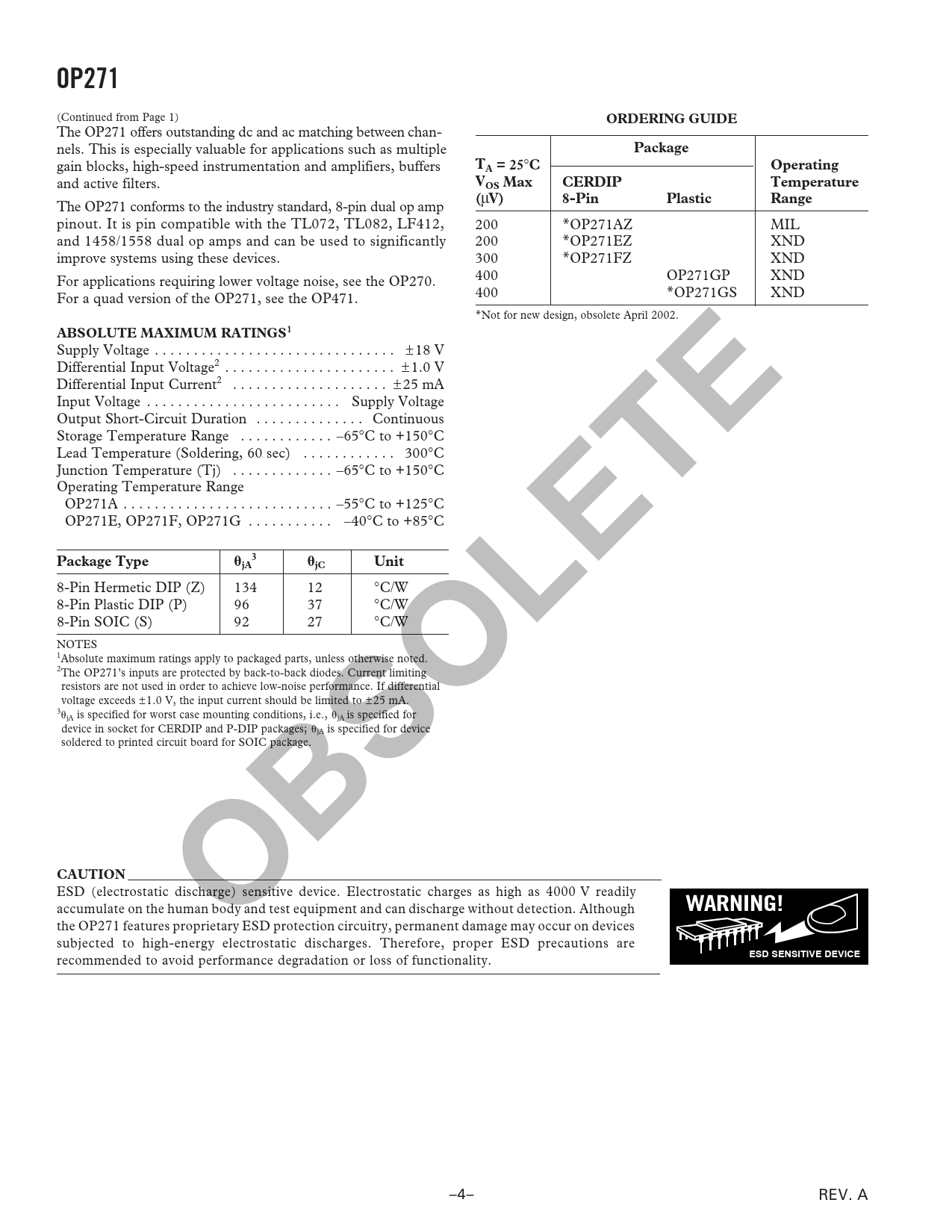

OP271
(Continued from Page 1)
ORDERING GUIDE
The OP271 offers outstanding dc and ac matching between chan- nels. This is especially valuable for applications such as multiple
Package
gain blocks, high-speed instrumentation and amplifiers, buffers
TA = 25
∞
C Operating
and active filters.
VOS Max CERDIP Temperature (
m
V) 8-Pin Plastic Range
The OP271 conforms to the industry standard, 8-pin dual op amp pinout. It is pin compatible with the TL072, TL082, LF412, 200 *OP271AZ MIL and 1458/1558 dual op amps and can be used to significantly 200 *OP271EZ XND improve systems using these devices. 300 *OP271FZ XND For applications requiring lower voltage noise, see the OP270. 400 OP271GP XND For a quad version of the OP271, see the OP471. 400 *OP271GS XND *Not for new design, obsolete April 2002.
ABSOLUTE MAXIMUM RATINGS1
Supply Voltage . ± 18 V Differential Input Voltage2 . ± 1.0 V Differential Input Current2 . ± 25 mA Input Voltage . Supply Voltage Output Short-Circuit Duration . Continuous Storage Temperature Range . –65∞C to +150∞C Lead Temperature (Soldering, 60 sec) . 300∞C Junction Temperature (Tj) . –65∞C to +150∞C Operating Temperature Range OP271A . –55∞C to +125∞C OP271E, OP271F, OP271G . –40∞C to +85∞C
Package Type
3
jA jC Unit
8-Pin Hermetic DIP (Z) 134 12 ∞C/W 8-Pin Plastic DIP (P) 96 37 ∞C/W 8-Pin SOIC (S) 92 27 ∞C/W NOTES 1Absolute maximum ratings apply to packaged parts, unless otherwise noted. 2The OP271’s inputs are protected by back-to-back diodes. Current limiting resistors are not used in order to achieve low-noise performance. If differential voltage exceeds ± 1.0 V, the input current should be limited to ± 25 mA. 3jA is specified for worst case mounting conditions, i.e., jA is specified for device in socket for CERDIP and P-DIP packages; jA is specified for device soldered to printed circuit board for SOIC package.
CAUTION OBSOLETE
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the OP271 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. –4– REV. A Document Outline FEATURES GENERAL DESCRIPTION PIN CONNECTIONS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE Typical Performance Characteristics APPLICATION INFORMATION Capacitive Load Driving and Power Supply Considerations Unity-Gain Buffer Applications Computer Simulations APPLICATIONS Low Phase Error Amplifier Dual 12-Bit Voltage Output DAC Fast Current Pump OUTLINE DIMENSIONS Revision History
