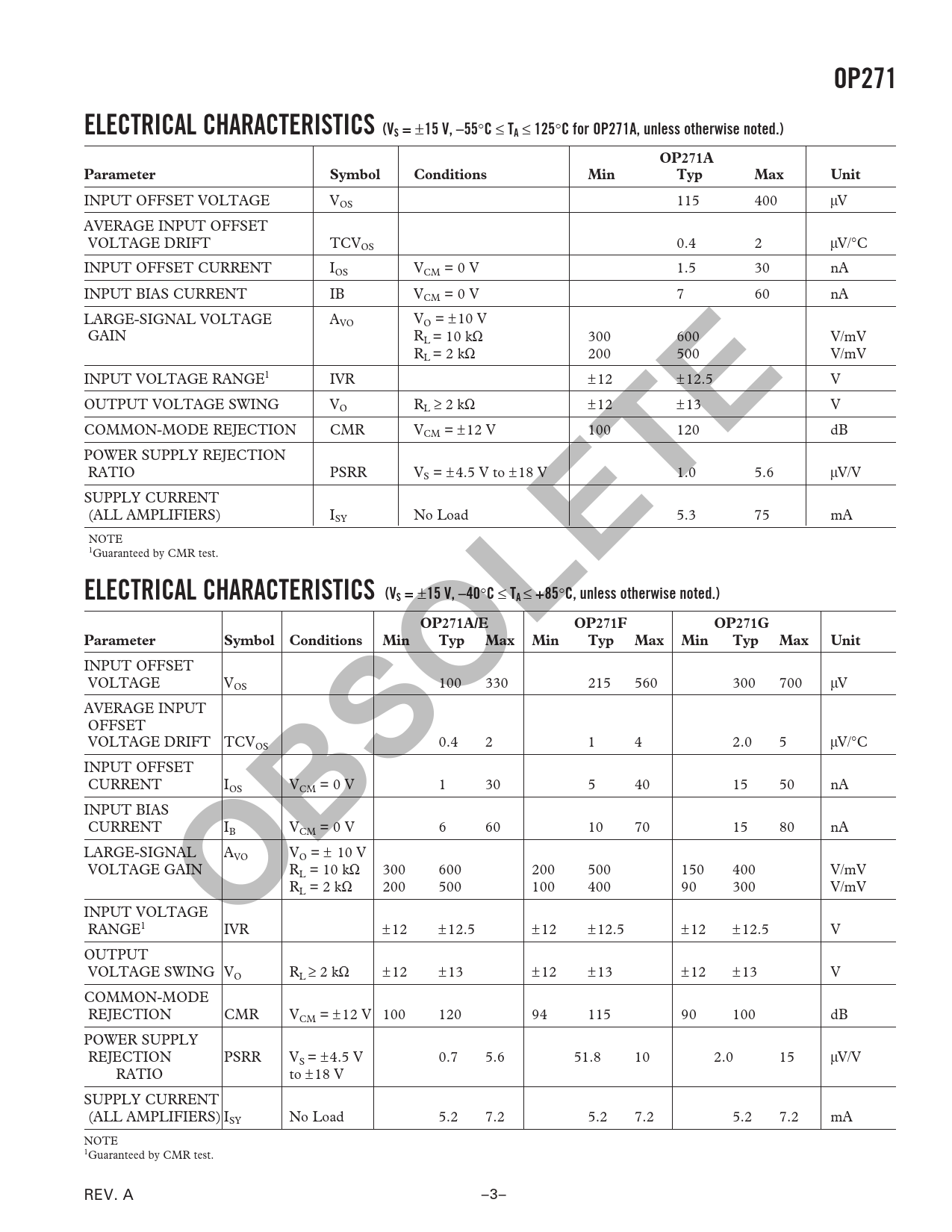

OP271. ELECTRICAL CHARACTERISTICS (VS =. 15 V, –55. 125. C for OP271A, unless otherwise noted.). OP271A. Parameter. Symbol. Conditions
Modelllinie für dieses Datenblatt
Textversion des Dokuments
OP271 ELECTRICAL CHARACTERISTICS (VS =
±
15 V, –55
∞
C
£
TA
£
125
∞
C for OP271A, unless otherwise noted.) OP271A Parameter Symbol Conditions Min Typ Max Unit
INPUT OFFSET VOLTAGE VOS 115 400 mV AVERAGE INPUT OFFSET VOLTAGE DRIFT TCVOS 0.4 2 mV/∞C INPUT OFFSET CURRENT IOS VCM = 0 V 1.5 30 nA INPUT BIAS CURRENT IB VCM = 0 V 7 60 nA LARGE-SIGNAL VOLTAGE AVO VO = ± 10 V GAIN RL = 10 kW 300 600 V/mV RL = 2 kW 200 500 V/mV INPUT VOLTAGE RANGE1 IVR ±12 ±12.5 V OUTPUT VOLTAGE SWING VO RL ≥ 2 kW ±12 ±13 V COMMON-MODE REJECTION CMR VCM = ±12 V 100 120 dB POWER SUPPLY REJECTION RATIO PSRR VS = ± 4.5 V to ±18 V 1.0 5.6 mV/V SUPPLY CURRENT (ALL AMPLIFIERS) ISY No Load 5.3 75 mA NOTE 1Guaranteed by CMR test.
ELECTRICAL CHARACTERISTICS (V
£
S =
±
15 V, –40
∞
C
£
TA +85
∞
C, unless otherwise noted.) OP271A/E OP271F OP271G Parameter Symbol Conditions Min Typ Max Min Typ Max Min Typ Max Unit
INPUT OFFSET VOLTAGE VOS 100 330 215 560 300 700 mV AVERAGE INPUT OFFSET VOLTAGE DRIFT TCVOS 0.4 2 1 4 2.0 5 mV/∞C INPUT OFFSET CURRENT IOS VCM = 0 V 1 30 5 40 15 50 nA INPUT BIAS CURRENT IB VCM = 0 V 6 60 10 70 15 80 nA LARGE-SIGNAL AVO VO = ± 10 V VOLTAGE GAIN RL = 10 kW 300 600 200 500 150 400 V/mV R
