Datasheet 1N914 (Vishay)
| Hersteller | Vishay |
| Beschreibung | Small Signal Fast Switching Diodes |
| Seiten / Seite | 3 / 1 — 1N914. Small Signal Fast Switching Diodes. FEATURES. ADDITIONAL … |
| Revision | 01-Jan-2021 |
| Dateiformat / Größe | PDF / 71 Kb |
| Dokumentensprache | Englisch |
1N914. Small Signal Fast Switching Diodes. FEATURES. ADDITIONAL RESOURCES. D 3. 3 D. MECHANICAL DATA Case:. Weight:
Modelllinie für dieses Datenblatt
Textversion des Dokuments

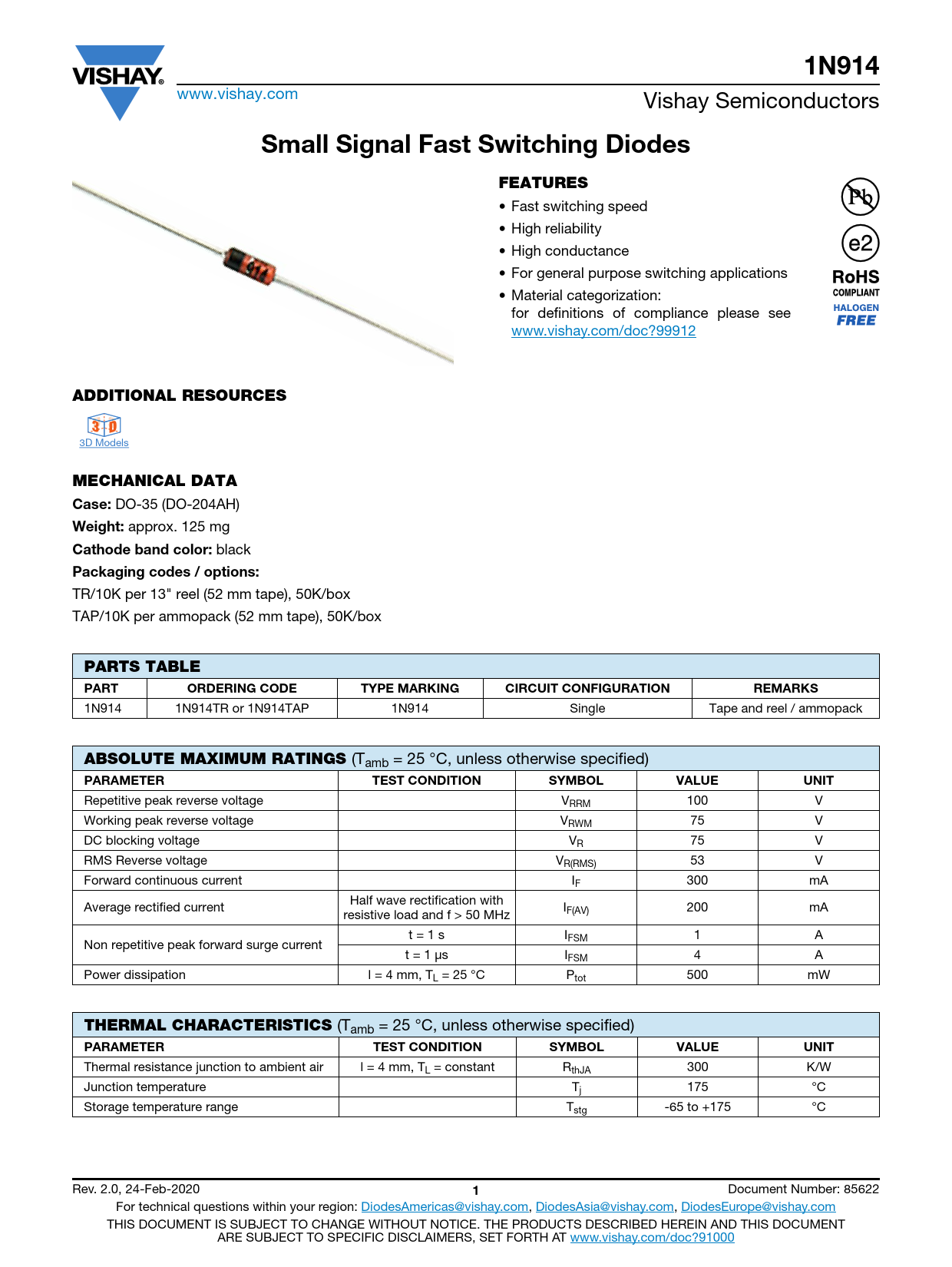

1N914
www.vishay.com Vishay Semiconductors
Small Signal Fast Switching Diodes FEATURES
• Fast switching speed • High reliability • High conductance • For general purpose switching applications • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
ADDITIONAL RESOURCES D 3 3 D
3D Models
MECHANICAL DATA Case:
DO-35 (DO-204AH)
Weight:
approx. 125 mg
Cathode band color:
black
Packaging codes / options:
TR/10K per 13" reel (52 mm tape), 50K/box TAP/10K per ammopack (52 mm tape), 50K/box
PARTS TABLE PART ORDERING CODE TYPE MARKING CIRCUIT CONFIGURATION REMARKS
1N914 1N914TR or 1N914TAP 1N914 Single Tape and reel / ammopack
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Repetitive peak reverse voltage VRRM 100 V Working peak reverse voltage VRWM 75 V DC blocking voltage VR 75 V RMS Reverse voltage VR(RMS) 53 V Forward continuous current IF 300 mA Half wave rectification with Average rectified current I resistive load and f > 50 MHz F(AV) 200 mA t = 1 s IFSM 1 A Non repetitive peak forward surge current t = 1 μs IFSM 4 A Power dissipation l = 4 mm, TL = 25 °C Ptot 500 mW
THERMAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Thermal resistance junction to ambient air l = 4 mm, TL = constant RthJA 300 K/W Junction temperature Tj 175 °C Storage temperature range Tstg -65 to +175 °C Rev. 2.0, 24-Feb-2020
1
Document Number: 85622 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
