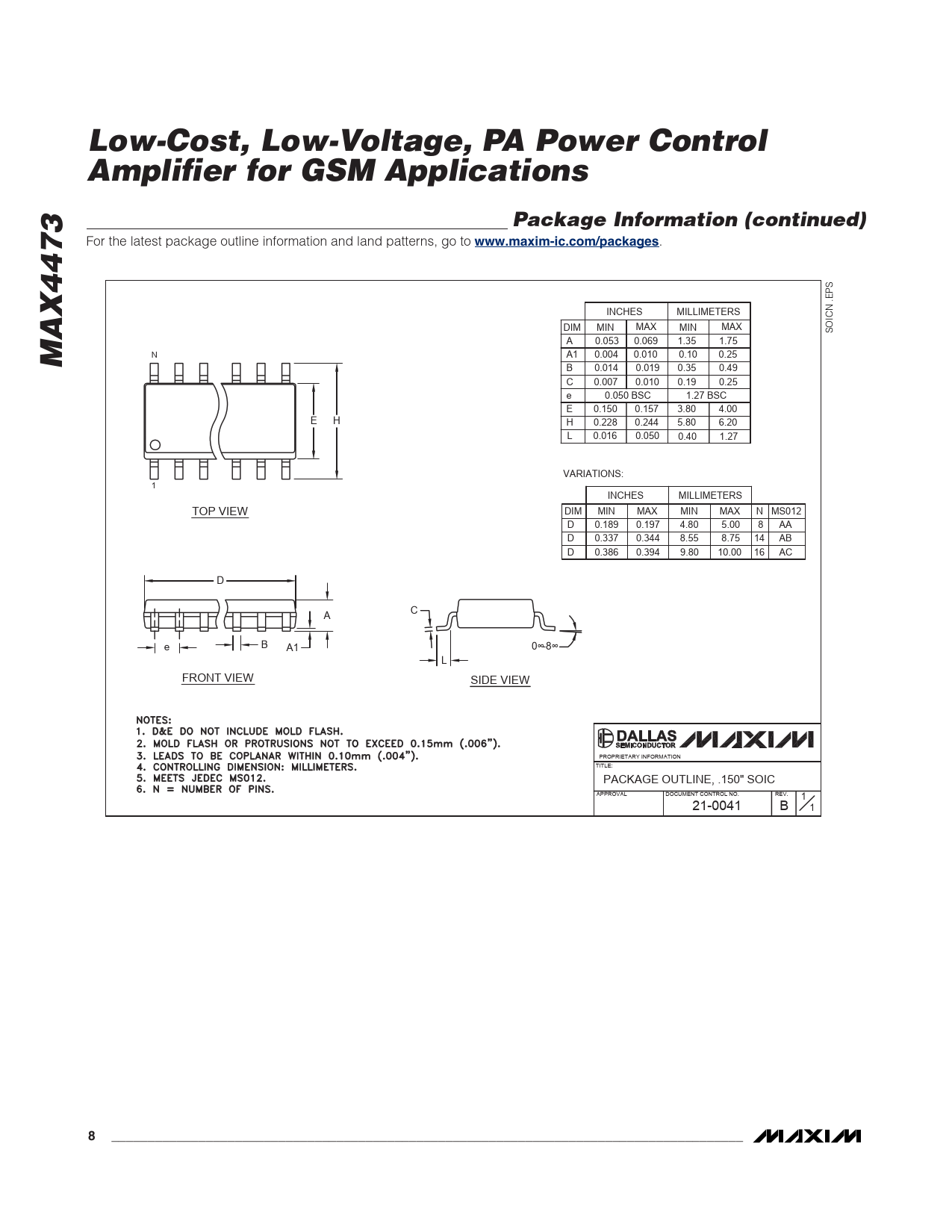

Low-Cost, Low-Voltage, PA Power Control Amplifier for GSM Applications Package Information (continued)
For the latest package outline information and land patterns, go to
www.maxim-ic.com/packages
. INCHES MILLIMETERS DIM MIN MAX MIN MAX SOICN .EPS A 0.053 0.069 1.35 1.75
MAX4473
N A1 0.004 0.010 0.10 0.25 B 0.014 0.019 0.35 0.49 C 0.007 0.010 0.19 0.25 e 0.050 BSC 1.27 BSC E 0.150 0.157 3.80 4.00 E H H 0.228 0.244 5.80 6.20 L 0.016 0.050 0.40 1.27 VARIATIONS: 1 INCHES MILLIMETERS TOP VIEW DIM MIN MAX MIN MAX N MS012 D 0.189 0.197 4.80 5.00 8 AA D 0.337 0.344 8.55 8.75 14 AB D 0.386 0.394 9.80 10.00 16 AC D C A e B A1 0∞-8∞ L FRONT VIEW SIDE VIEW PROPRIETARY INFORMATION TITLE: PACKAGE OUTLINE, .150" SOIC APPROVAL DOCUMENT CONTROL NO. REV. 1 21-0041 B 1
