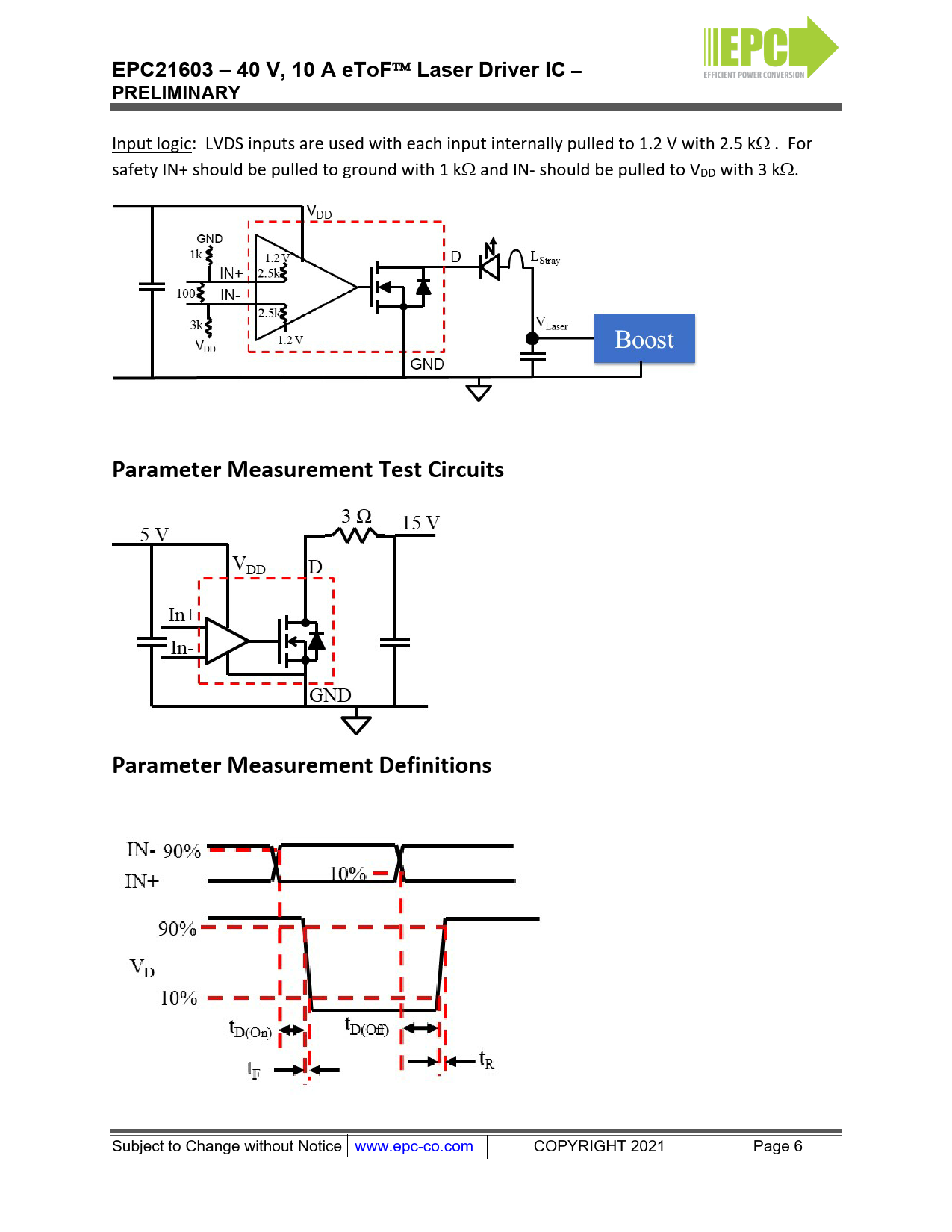

EPC21603 – 40 V, 10 A eToF. Laser Driver IC –. PRELIMINARY. Parameter Measurement Test Circuits
Modelllinie für dieses Datenblatt
Textversion des Dokuments
EPC21603 – 40 V, 10 A eToF
Laser Driver IC – PRELIMINARY
Input logic: LVDS inputs are used with each input internal y pulled to 1.2 V with 2.5 kΩ . For safety IN+ should be pulled to ground with 1 kΩ and IN- should be pulled to VDD with 3 kΩ.
Parameter Measurement Test Circuits Parameter Measurement Definitions
