Datasheet C2M1000170D (Wolfspeed) - 8
| Hersteller | Wolfspeed |
| Beschreibung | Silicon Carbide Power MOSFET 1700 V 5.0 A 1.0 Ω |
| Seiten / Seite | 10 / 8 — Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. … |
| Dateiformat / Größe | PDF / 996 Kb |
| Dokumentensprache | Englisch |
Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. Resulting Classification
Modelllinie für dieses Datenblatt
Textversion des Dokuments

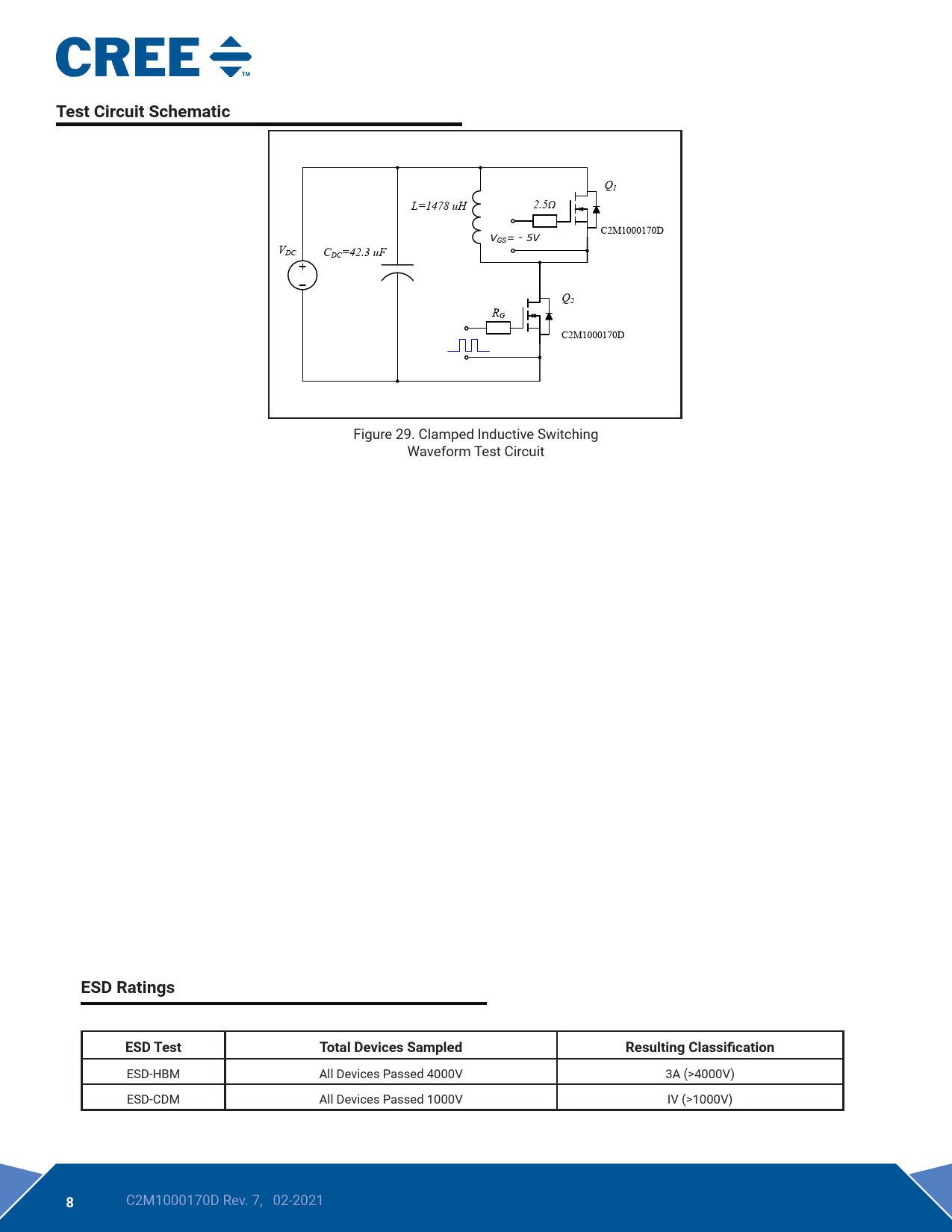

Test Circuit Schematic
Q1 L=1478 uH 2.5Ω C2M1000170D VGS= - 5V VDC CDC=42.3 uF Q2 RG C2M1000170D Figure 29. Clamped Inductive Switching Waveform Test Circuit
ESD Ratings ESD Test Total Devices Sampled Resulting Classification
ESD-HBM All Devices Passed 4000V 3A (>4000V) ESD-CDM All Devices Passed 1000V IV (>1000V)
8
C2M1000170D Rev. 7, 02-2021
