Datasheet LT3508 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | Dual Monolithic 1.4A Step-Down Switching Regulator |
| Seiten / Seite | 26 / 7 — BLOCK DIAGRAM |
| Revision | E |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
BLOCK DIAGRAM
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT3508
BLOCK DIAGRAM
SHDN VIN1 RT/SYNC INT REG CLK1 MASTER AND REF OSC CLK2 1.2µA TRACK/SS VIN VIN CIN 0.75V+ Σ SLOPE R BOOST D2 S Q C1 SLAVE C3 CLK OSC SW L1 OUT + D1 C1 – ERROR 0.625V AMP – FB R1 VC + TRACK/SS + R2 RC – 0.80V CF CC + + I 75mV LIMIT CLAMP PG + GND – 3508 F01

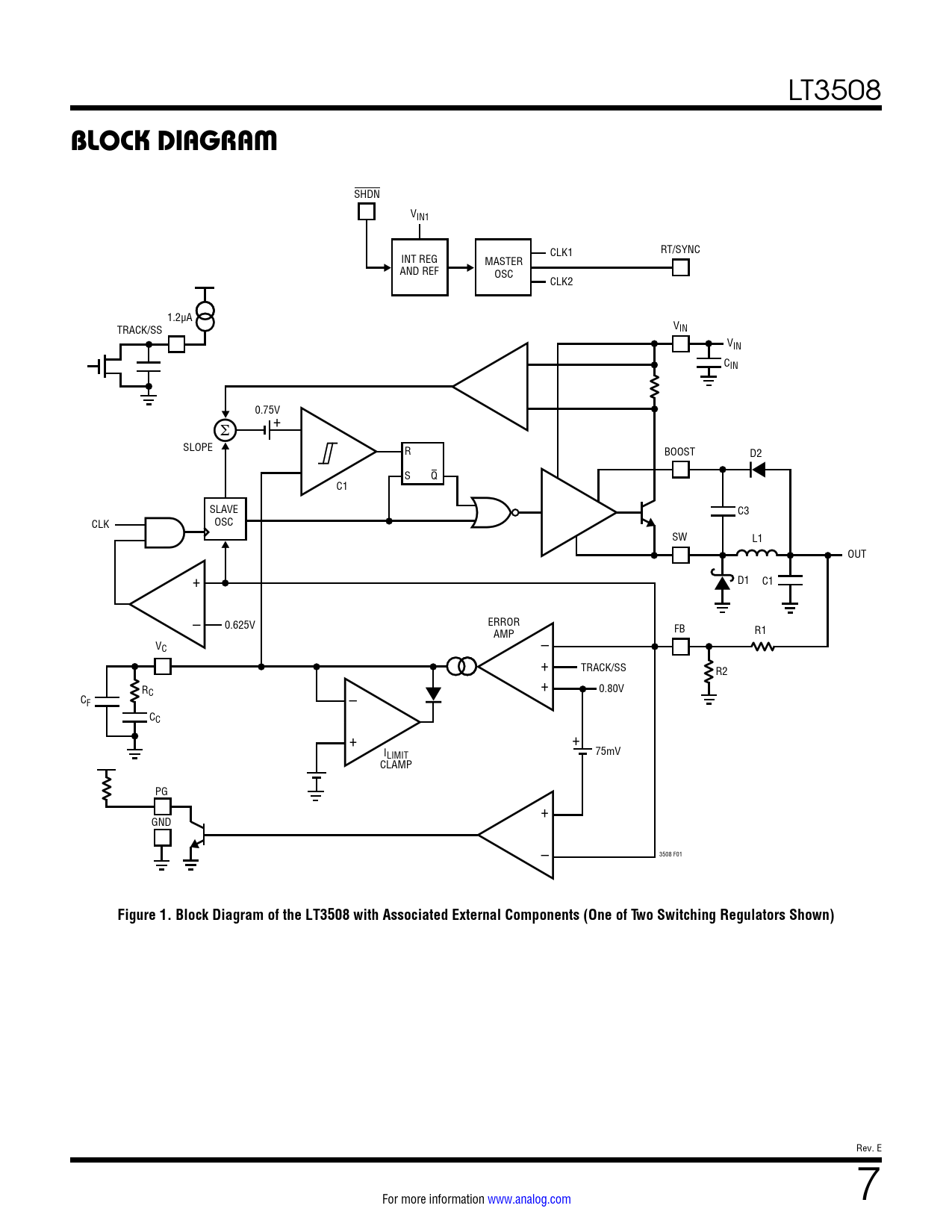

Figure 1. Block Diagram of the LT3508 with Associated External Components (One of Two Switching Regulators Shown)
