Enhanced Product. AD8479-EP. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441). 3.80 (0.1497)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

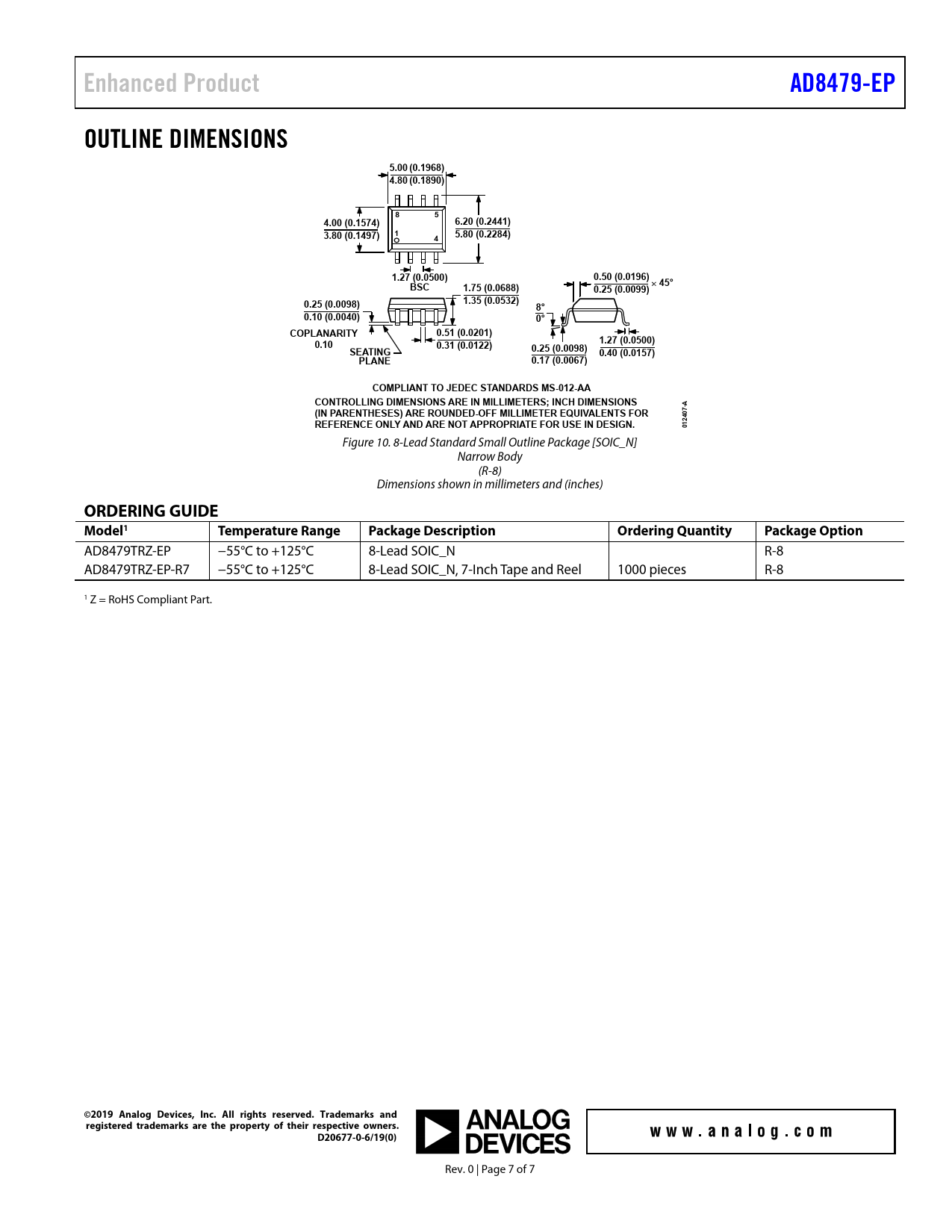

Enhanced Product AD8479-EP OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 4 5.80 (0.2284) 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 7-A REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 1240 0
Figure 10. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Model1 Temperature Range Package Description Ordering Quantity Package Option
AD8479TRZ-EP −55°C to +125°C 8-Lead SOIC_N R-8 AD8479TRZ-EP-R7 −55°C to +125°C 8-Lead SOIC_N, 7-Inch Tape and Reel 1000 pieces R-8 1 Z = RoHS Compliant Part.
©2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D20677-0-6/19(0)
Rev. 0 | Page 7 of 7 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
