Datasheet AD8314 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 100 MHz to 2.7 GHz, 45 dB RF Detector/Controller |
| Seiten / Seite | 20 / 4 — AD8314. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Value. … |
| Revision | C |
| Dateiformat / Größe | PDF / 528 Kb |
| Dokumentensprache | Englisch |

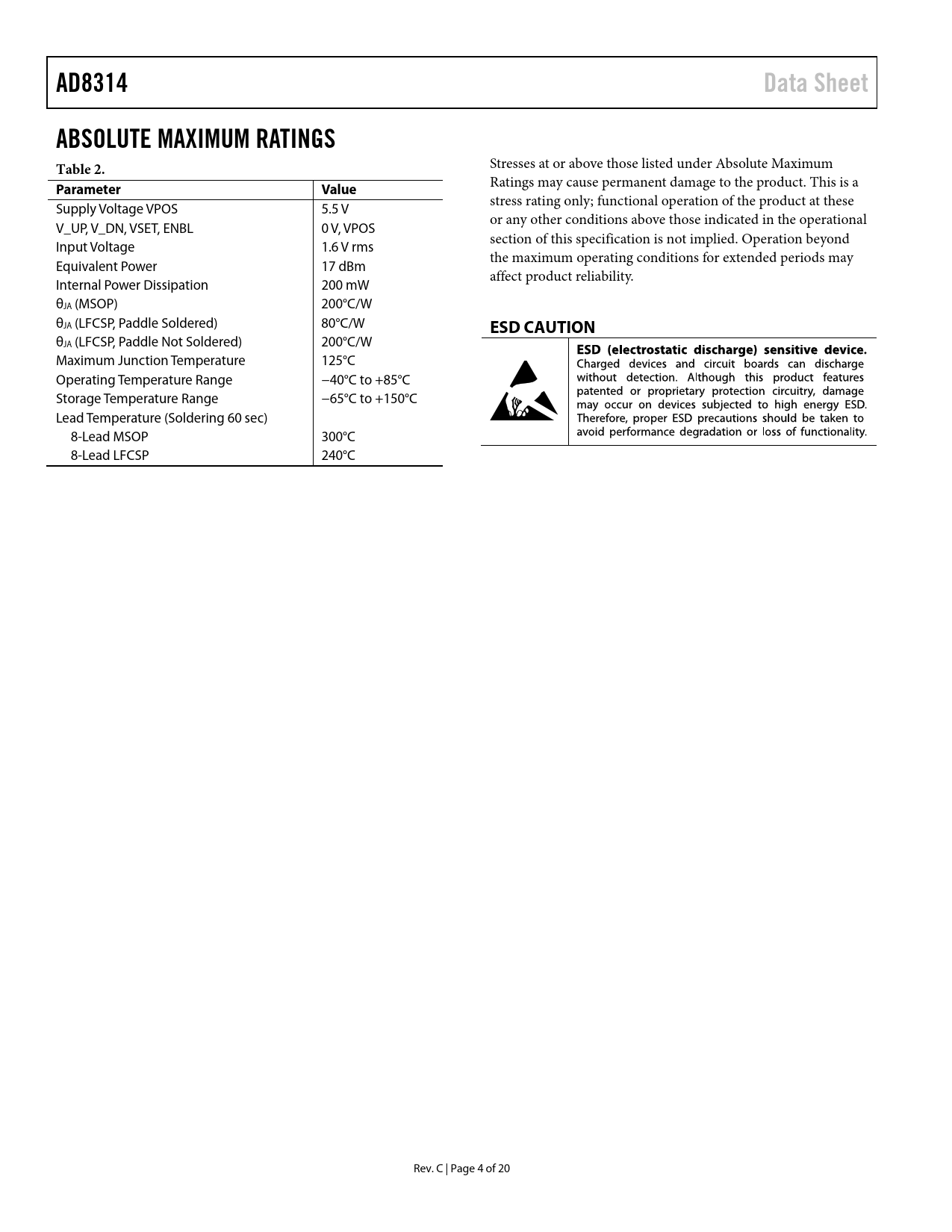

AD8314. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Value. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8314 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Value
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage VPOS 5.5 V or any other conditions above those indicated in the operational V_UP, V_DN, VSET, ENBL 0 V, VPOS section of this specification is not implied. Operation beyond Input Voltage 1.6 V rms the maximum operating conditions for extended periods may Equivalent Power 17 dBm affect product reliability. Internal Power Dissipation 200 mW θJA (MSOP) 200°C/W θJA (LFCSP, Paddle Soldered) 80°C/W
ESD CAUTION
θJA (LFCSP, Paddle Not Soldered) 200°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 8-Lead MSOP 300°C 8-Lead LFCSP 240°C Rev. C | Page 4 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INVERTED OUTPUT APPLICATIONS BASIC CONNECTIONS TRANSFER FUNCTION IN TERMS OF SLOPE AND INTERCEPT dBV VS. dBm FILTER CAPACITOR OPERATING IN CONTROLLER MODE POWER-ON AND ENABLE GLITCH INPUT COUPLING OPTIONS INCREASING THE LOGARITHMIC SLOPE IN MEASUREMENT MODE EFFECT OF WAVEFORM TYPE ON INTERCEPT MOBILE HANDSET POWER CONTROL EXAMPLES OPERATION AT 2.7 GHz USING THE LFCSP PACKAGE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
