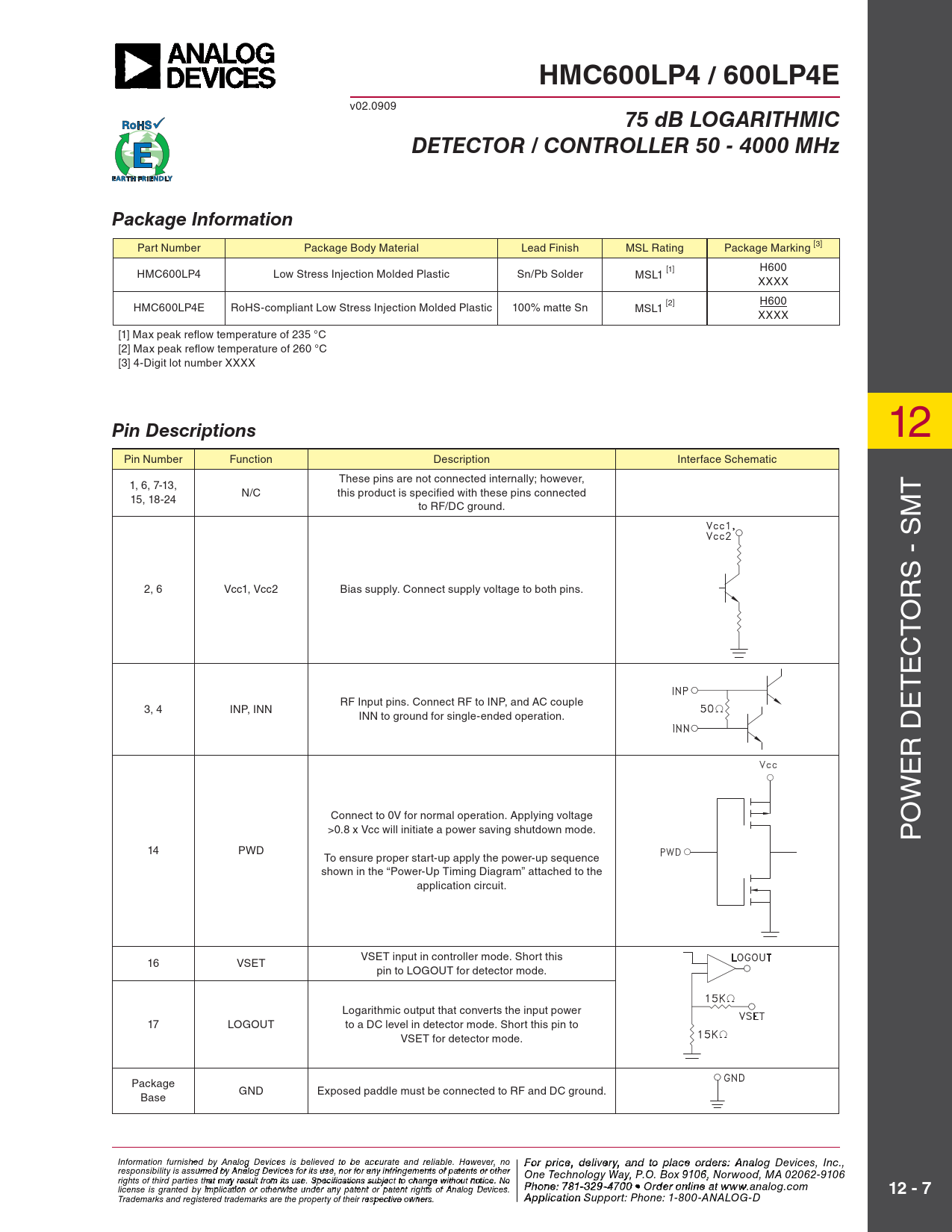

HMC600LP4 / 600LP4E
v02.0909
75 dB LOGARITHMIC DETECTOR / CONTROLLER 50 - 4000 MHz Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [3] [1] H600 HMC600LP4 Low Stress Injection Molded Plastic Sn/Pb Solder MSL1 XXXX [2] H600 HMC600LP4E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 XXXX [1] Max peak refl ow temperature of 235 °C [2] Max peak refl ow temperature of 260 °C [3] 4-Digit lot number XXXX
Pin Descriptions
12 Pin Number Function Description Interface Schematic These pins are not connected internally; however, 1, 6, 7-13, N/C this product is specifi ed with these pins connected T 15, 18-24 to RF/DC ground. S - SM 2, 6 Vcc1, Vcc2 Bias supply. Connect supply voltage to both pins. R O T C E T RF Input pins. Connect RF to INP, and AC couple 3, 4 INP, INN E INN to ground for single-ended operation. R D E W Connect to 0V for normal operation. Applying voltage O >0.8 x Vcc will initiate a power saving shutdown mode. P 14 PWD To ensure proper start-up apply the power-up sequence shown in the “Power-Up Timing Diagram” attached to the application circuit. VSET input in controller mode. Short this 16 VSET pin to LOGOUT for detector mode. Logarithmic output that converts the input power 17 LOGOUT to a DC level in detector mode. Short this pin to VSET for detector mode. Package GND Exposed paddle must be connected to RF and DC ground. Base Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
12 - 7
Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
