HMC713MS8 / 713MS8E
v06.0412

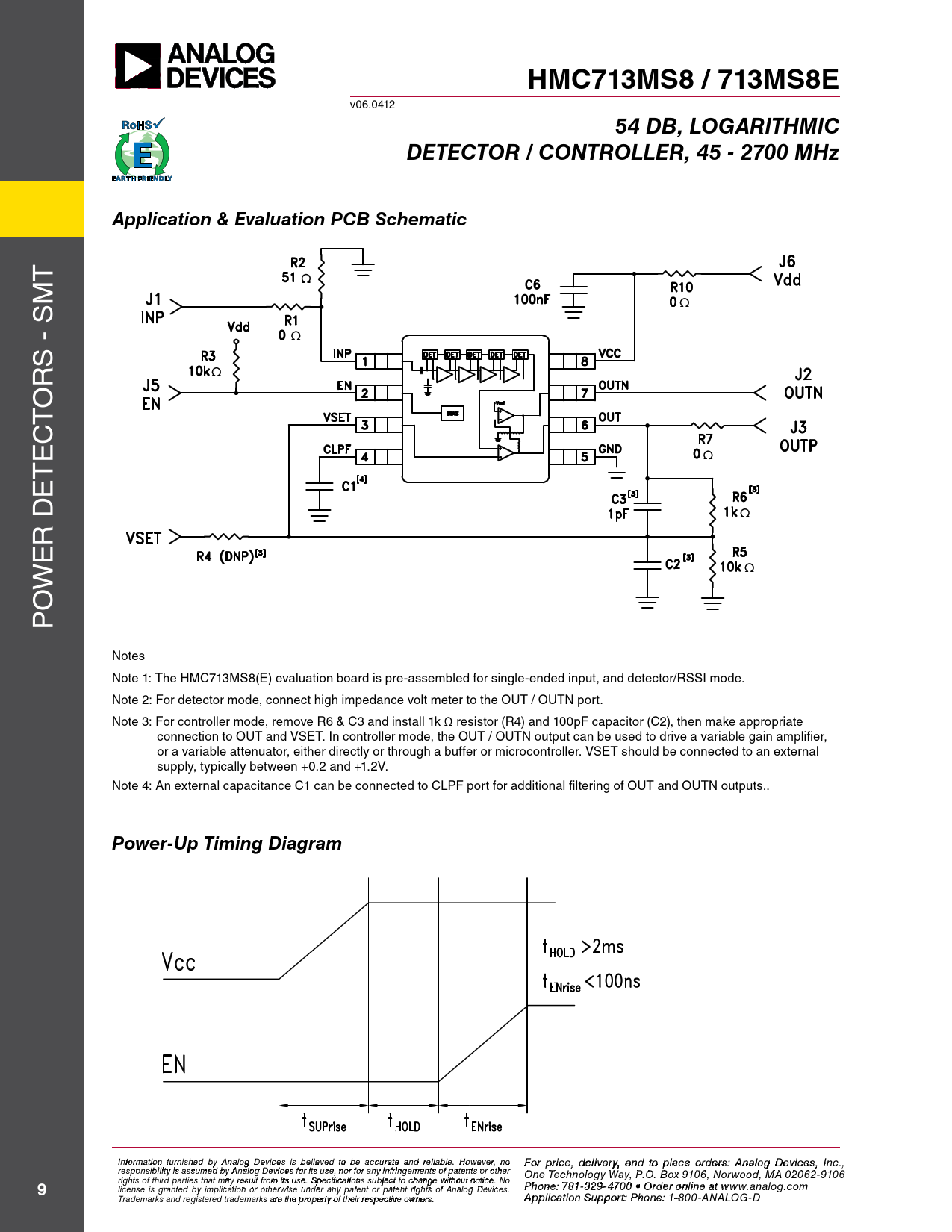

54 DB, LOGARITHMIC DETECTOR / CONTROLLER, 45 - 2700 MHz Application & Evaluation PCB Schematic
t M s - rs o t c e t e D r e w o P Notes Note 1: The HMC713MS8(E) evaluation board is pre-assembled for single-ended input, and detector/RSSI mode. Note 2: For detector mode, connect high impedance volt meter to the oUt / oUtN port. Note 3: For control er mode, remove R6 & C3 and install 1k Ω resistor (R4) and 100pF capacitor (C2), then make appropriate connection to OUT and VSET. In controller mode, the OUT / OUTN output can be used to drive a variable gain amplifier, or a variable attenuator, either directly or through a buffer or microcontroller. Vset should be connected to an external supply, typically between +0.2 and +1.2V. Note 4: An external capacitance c1 can be connected to cLPF port for additional filtering of oUt and oUtN outputs..
Power-Up Timing Diagram
