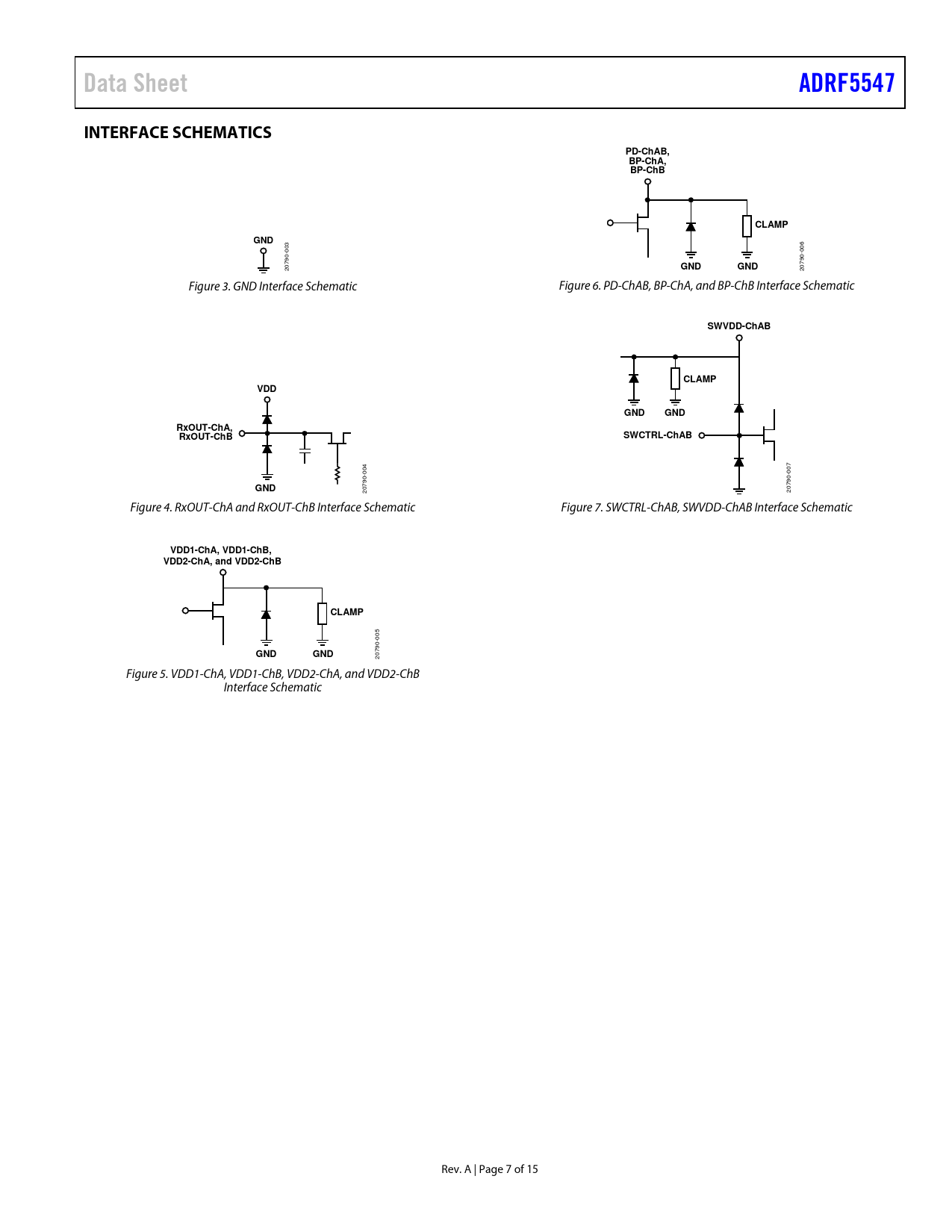

Datasheet ADRF5547 (Analog Devices) - 7

Data Sheet ADRF5547 INTERFACE SCHEMATICS PD-ChAB, BP-ChA, BP-ChB CLAMP GND
003 006 20790-
GND GND
20790- Figure 3. GND Interface Schematic Figure 6. PD-ChAB, BP-ChA, and BP-ChB Interface Schematic
SWVDD-ChAB CLAMP VDD GND GND RxOUT-ChA, RxOUT-ChB SWCTRL-ChAB
004 007
GND
20790- 20790- Figure 4. RxOUT-ChA and RxOUT-ChB Interface Schematic Figure 7. SWCTRL-ChAB, SWVDD-ChAB Interface Schematic
VDD1-ChA, VDD1-ChB, VDD2-ChA, and VDD2-ChB CLAMP
005
GND GND
20790- Figure 5. VDD1-ChA, VDD1-ChB, VDD2-ChA, and VDD2-ChB Interface Schematic Rev. A | Page 7 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION, HIGH GAIN MODE RECEIVE OPERATION, LOW GAIN MODE TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
